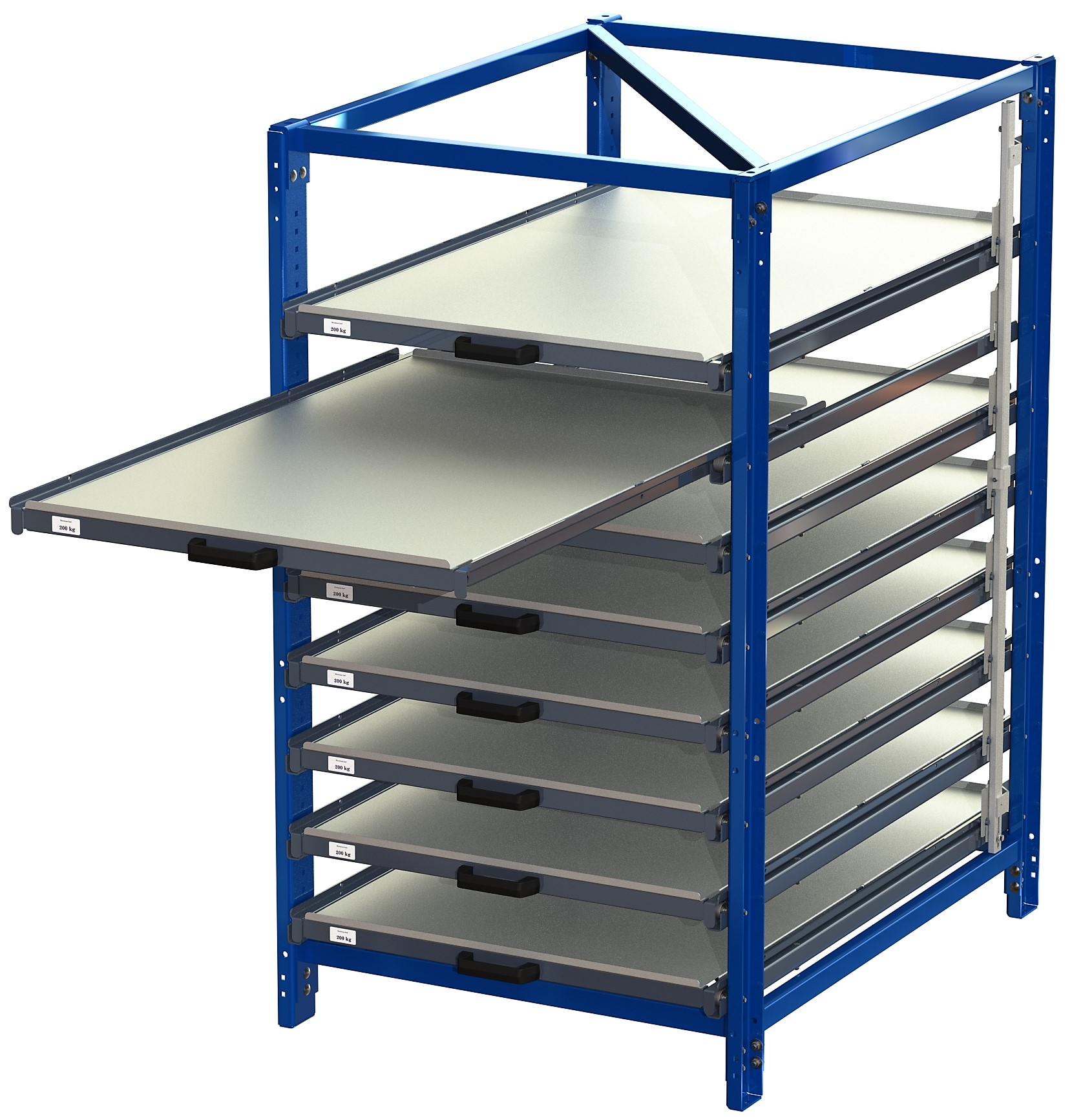

Compact Storage Unit with shelf lock, short-side forward, 70% extension, 200kg load capacity, 8 shelves

- +
Product added to cart
Article Number: 22 118-1 Categories: ,

Description

Arrow

Compact Storage Units (CSUs) are simple, strong and versatile. They pack a huge amount of easy-access storage into a footprint hardly bigger than a EUR-pallet (1206mm x 880mm). A rigid steel frame with slotted uprights allows for customisation. Ideal for either stationary, movable or mobile storage of mostly smaller items which will be handled manually. CSUs benefit from a modular construction and a big range of accessories, so they’re adaptable to meet your particular needs

Product Features

Arrow
Picking Method Manual Manual
By hand, Overhead crane
Load metod Manual Manual
By hand, Overhead crane
Loading Manual
Front loaded
Load Way Manual
One-way
Handled Manual
Manual pull-out unit
Extension Manual
70%
Weight capacity Manual
200 kg
Type of load Manual Manual
Bins & boxes, Frame & dividers
Short or long side handled Manual
Short side handled

Technical Specifications

Arrow
Open Space
Manual
95-mm
Loading Width
Manual
800 mm
Loading Depth
Manual
1200 mm
Height
Manual
1560 mm
Frame Colour
Manual
Blue frame, grey shelves, Special colour
Number of shelves
Manual
8 Shelves
Depth
Manual
1273 mm
Width
Manual
880 mm
Shelf lock
Manual
Yes

Weight and Volume

Arrow
Pallet weight
Manual
296 kg
Number of pallets / Trailer
Manual
21
Quantity on pallet
Manual
1 pcs
Product Weight
Manual
261 kg
Pallet Size
Manual
140x95x175
