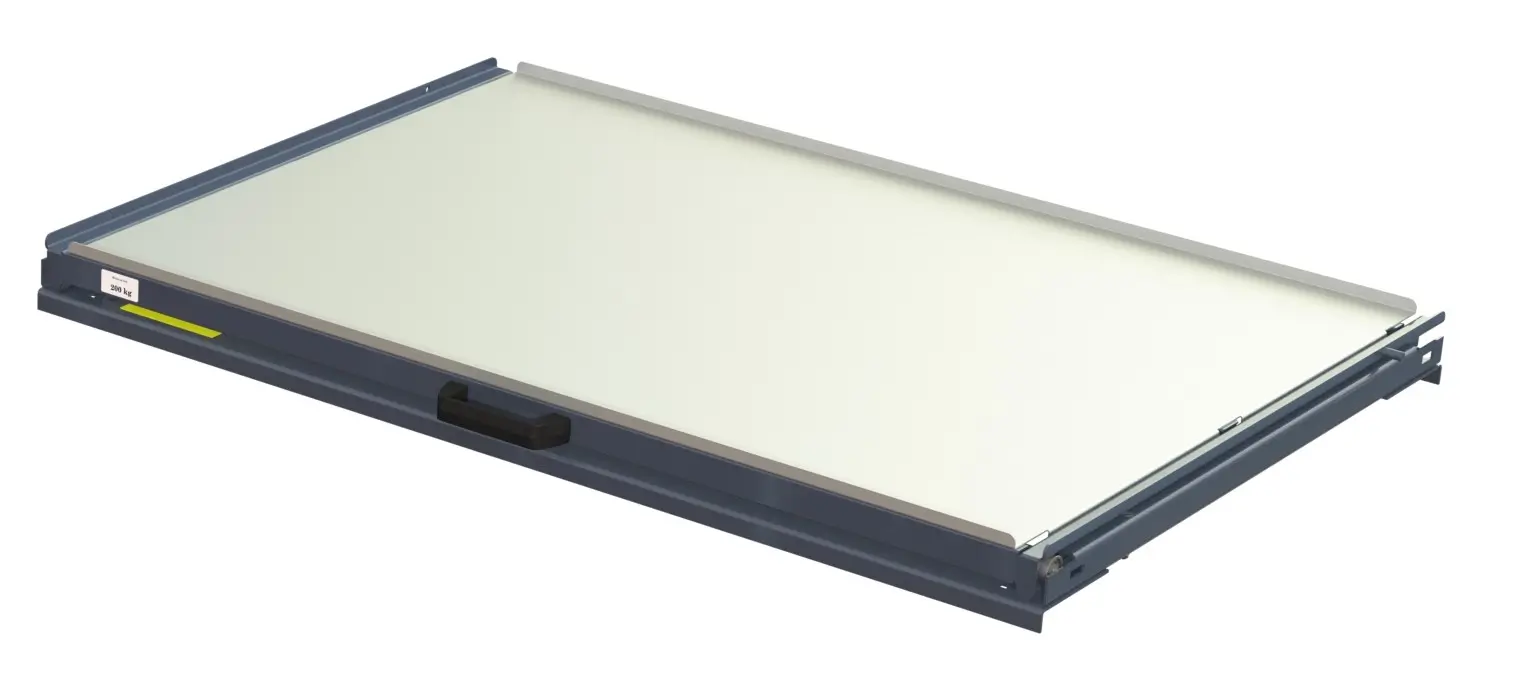

Beam-mounted pull-out unit with steel shelf panel. 70% extension, 200 kg load capacity, W=1200 D=800

Beam-mounted pull-out unit with steel shelf panel for storing plastic bins, cartons, or small parts with help of frames and dividers. 70% extension and 200 kg load capacity. Loading area is W=1200 mm D=800 mm. Load and pick from Front side. Long-side handled.

- +
Product added to cart
Article Number: 11 205-0 Categories: ,

Description

Arrow

The loading surface consists of a galvanized steel sheet with raised edges, perfect for Euro crates, boxes, tools etc. Plastic bins and cartons may be loaded directly onto the units. Being able to pull the units out of the rack allows for safe and easy access to stored items!
Beam-mounted pull-out units are mounted on the cross-beams between the pallet racking uprights. The lower frame of the pull-out unit is bolted to the beams and the upper frame and run smoothly with bearings.
Unit locks when pushed back into the rack.
Easy to install – simply secure to the cross-beams using 4 bolts.
Fitting double ball bearings at the front gives lower profiles and means that our pull-out units run smoothly, even with high load factors.
Beam-mounted units are compatible with almost any type of pallet racking on the market. They can be fitted to your existing beams.

Product Features

Arrow
Picking Method Manual Manual
By hand, Overhead crane
Short or long side handled Manual
Long side handled
Type of load Manual Manual
Bins & boxes, Frame & dividers
Weight capacity Manual
200 kg
Extension Manual
70%
Handled Manual
Manual pull-out unit
Load metod Manual Manual
By hand, Overhead crane
Load Way Manual
One-way
Loading Manual
Front loaded

Technical Specifications

Arrow
Rack Depth
Manual
570 mm - 770 mm
Width
Manual
1235 mm
Loading Depth
Manual
806 mm
Depth
Manual
851 mm
Frame Colour
Manual
Blue, Grey, Special colour
Height
Manual
64-mm
Loading height
Manual
51 mm
Loading Width
Manual
1204 mm

Weight and Volume

Arrow
Quantity on pallet
Manual
12 pcs
Product Weight
Manual
33 kg
Pallet weight
Manual
421 kg
Pallet Size
Manual
125x90x110
Number of pallets / Trailer
Manual
25

Weight Capacity Support Beam

Arrow
WCSB 1 pallet
Manual
512 kg
WCSB 2 pallets
Manual
744 kg
WCSB 3 pallets
Manual
976 kg
