Beam-mounted pull-out unit for pallet collar. 70% extension, 200 kg load capacity, W=800 D=1200

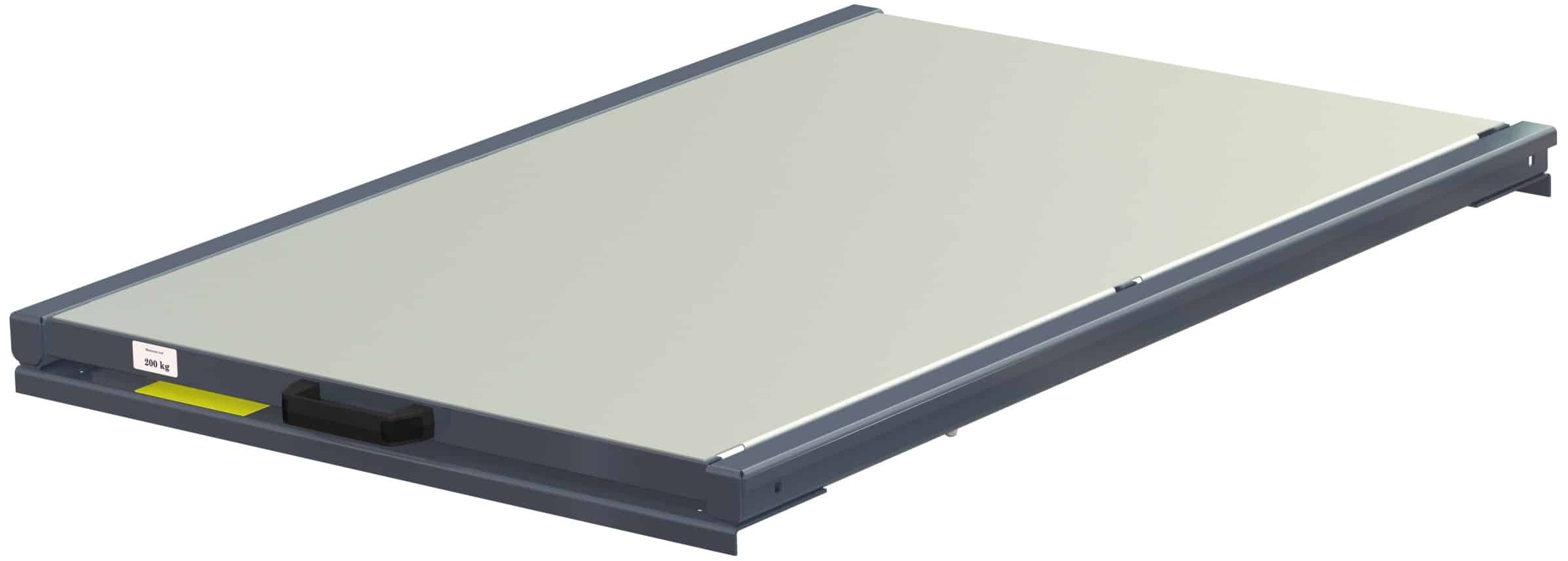

Beam-mounted pull-out unit with steel shelf panel for pallet collar directly on the unit. 70% extension and 200 kg load capacity. Loading area is W=800 mm D=1200 mm. Load and pick from Front side. Short-side handled.

- +
Product added to cart
Article Number: 11 203-0 Categories: ,

Description

Arrow

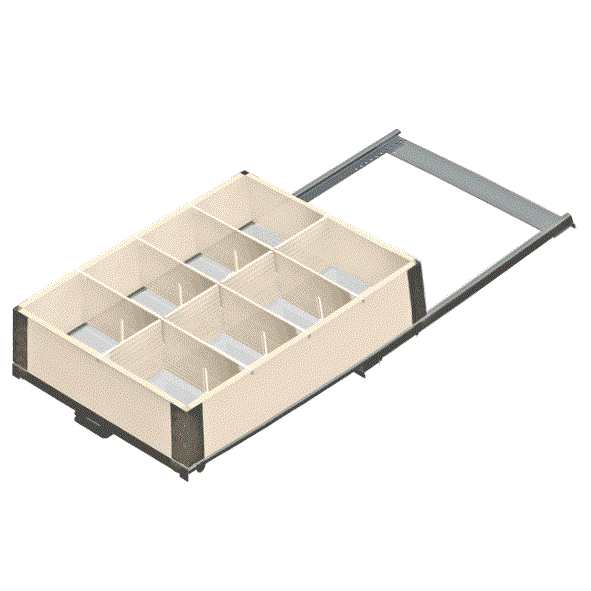

This model is only for placing a pallet collar directly on the unit – it has a flat surface with no edges. The pallet collar serves as a powerful and affordable frame that is possible to compartmentalized by dividers.!
Beam-mounted pull-out units are mounted on the cross-beams between the pallet racking uprights. The lower frame of the pull-out unit is bolted to the beams and the upper frame and run smoothly with bearings.
Unit locks when pushed back into the rack.
Easy to install – simply secure to the cross-beams using 4 bolts.
Fitting double ball bearings at the front gives lower profiles and means that our pull-out units run smoothly, even with high load factors.
Beam-mounted units are compatible with almost any type of pallet racking on the market. They can be fitted to your existing beams.

Product Features

Arrow
Short or long side handled Manual
Short side handled
Type of load Manual Manual
Bins & boxes, Frame & dividers
Weight capacity Manual
200 kg
Extension Manual
70%
Load Way Manual
One-way
Picking Method Manual Manual
By hand, Overhead crane
Load metod Manual Manual
By hand, Overhead crane
Loading Manual
Front loaded
Handled Manual
Manual pull-out unit

Technical Specifications

Arrow
Rack Depth
Manual
970 mm - 1170 mm
Width
Manual
807 mm
Loading Width
Manual
807 mm
Depth
Manual
1246-mm
Frame Colour
Manual
Blue, Grey, Special colour
Loading height
Manual
52 mm
Loading Depth
Manual
1206 mm
Height
Manual
52 mm

Weight and Volume

Arrow
Number of pallets / Trailer
Manual
25
Pallet Size
Manual
125x85x95
Pallet weight
Manual
361 kg
Product Weight
Manual
28 kg
Quantity on pallet
Manual
12 pcs

Weight Capacity Support Beam

Arrow
WCSB 1 pallet
Manual
512 kg
WCSB 2 pallets
Manual
744 kg
WCSB 3 pallets
Manual
976 kg
