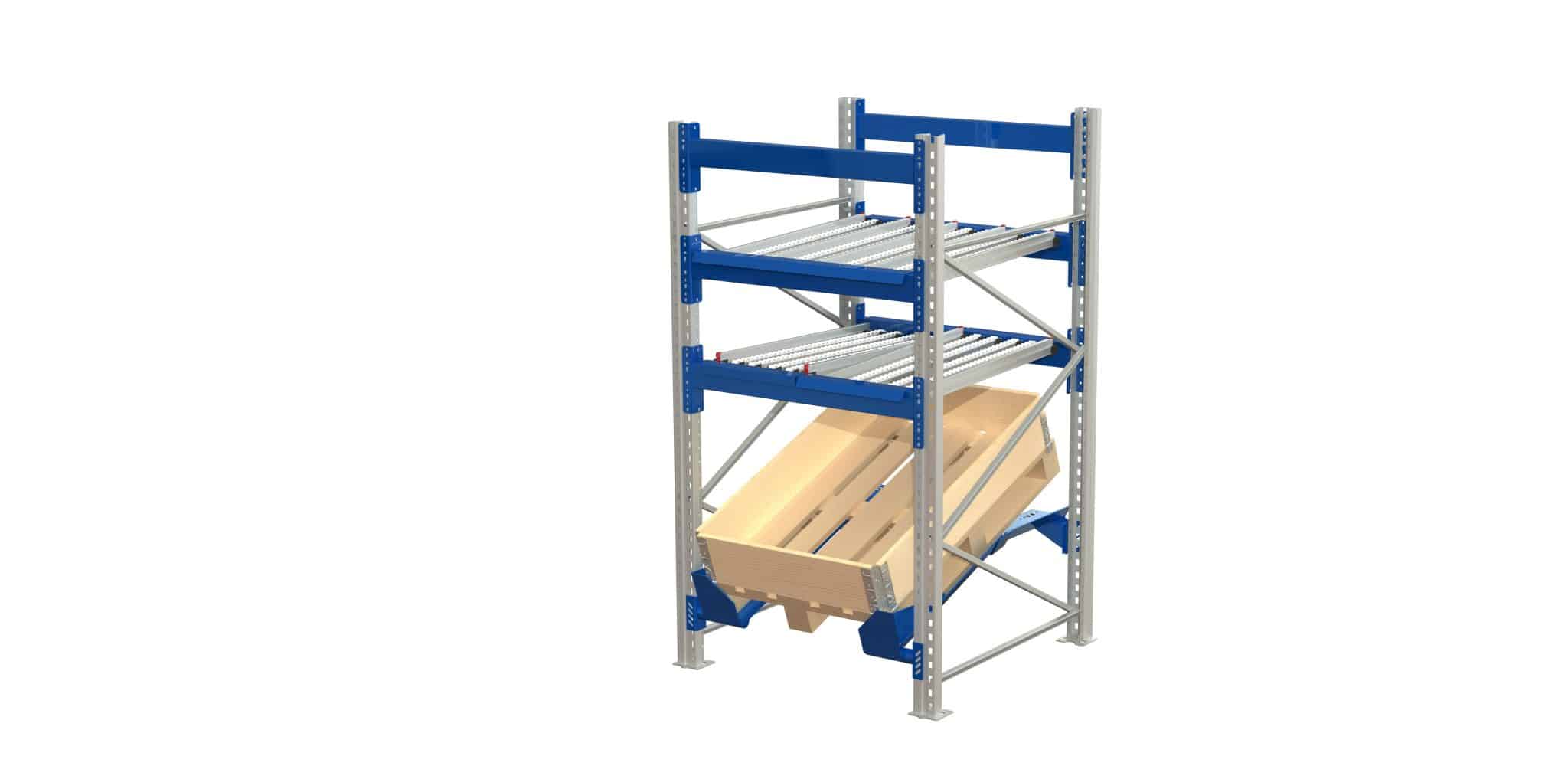

FIFO flow shelves
Maximize efficiency and ease with our versatile materials handling system! Our flow shelves, equipped with rollers ensure easy access to items. Construct a seamless FIFO system using our shelves in pallet racks for smooth handling of cardboard boxes or plastic bins. Easily pick the oldest stock item first while maintaining a clear view of all components at the picking face. Customize your flow racks with different layouts and roller configurations based on your container sizes.
Features
Click the buttons and read more about features
Storage according to
THE FIFO PRINCIPLE
FLOW SHELVES MAX LOAD CAPACITY 600 KG PER LEVEL
FIFO FLOW SHELF
with rollers FOR HIGH
TURNOVER PRODUCTS
TILTED PALLET
Maximum accessibility
during picking. Max load
capacity 500 kg
Easy to Install
Drastic TIME SAVINGS in order pickingÂ
INCREASED
PRODUCTIVITY

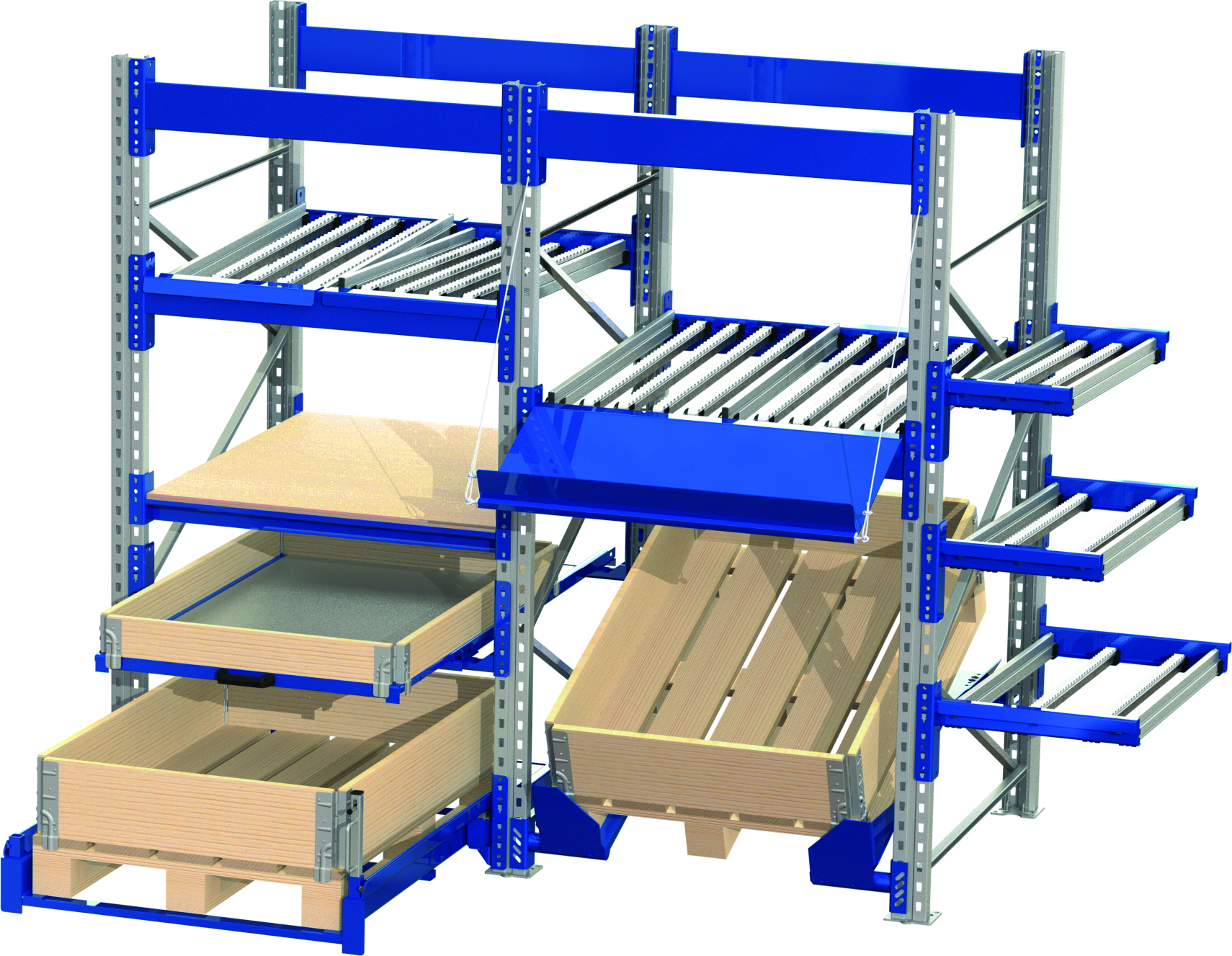

Combine pallet-handled products with pull-out drawers and inclined storage to optimize material accessibility. Our Upright-Mounted product offers direct access to various materials in production areas or buffer storage, enhancing convenience and efficiency.

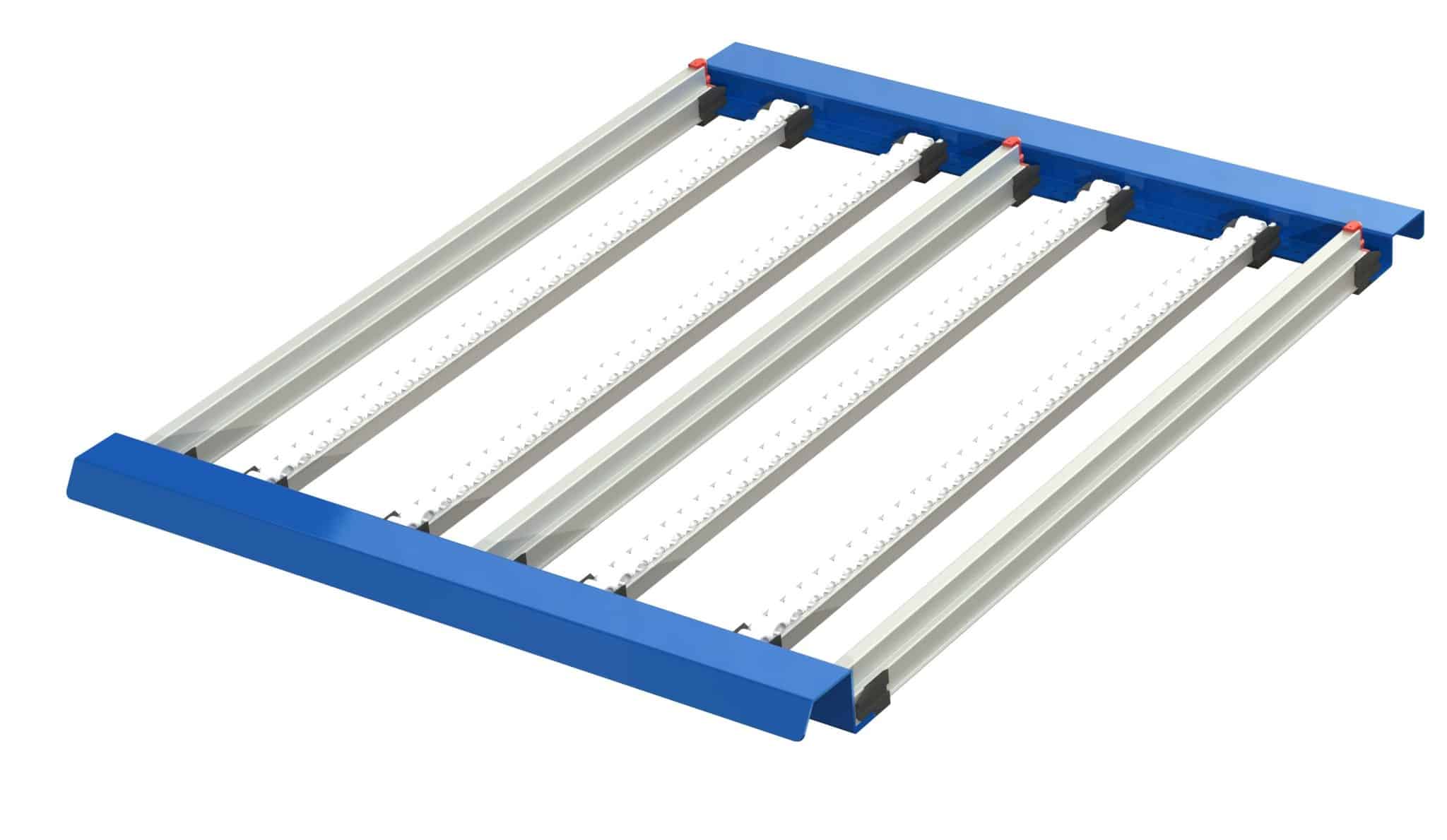

FIFO flow shelves
Select number of lanes to match width of plastic bins or cardboard boxes. Smart steel profiles fit over beams in a pallet rack with a depth of 1100 mm. 1 pcs will fit in a 950 mm wide section.
| ART. NO. | WIDTH | DEPTH | SPECIFICATION |
|---|---|---|---|
| 15 900-0805 | 940 mm | 1100 mm | FIFO flow shelf with 8 rollers and 5 dividers, providing 4 channels suitable for plastic bins or cardboard boxes with a maximum width of 200 mm. |
| 15 900-0604 | 940 mm | 1100 mm | FIFO flow shelf with 6 rollers and 4 dividers, providing 3 channels suitable for plastic bins or cardboard boxes with a maximum width of 300 mm. |
| 15 900-0403 | 940 mm | 1100 mm | FIFO flow shelf with 4 rollers and 3 dividers, providing 2 channels suitable for plastic bins or cardboard boxes with a maximum width of 400 mm. |

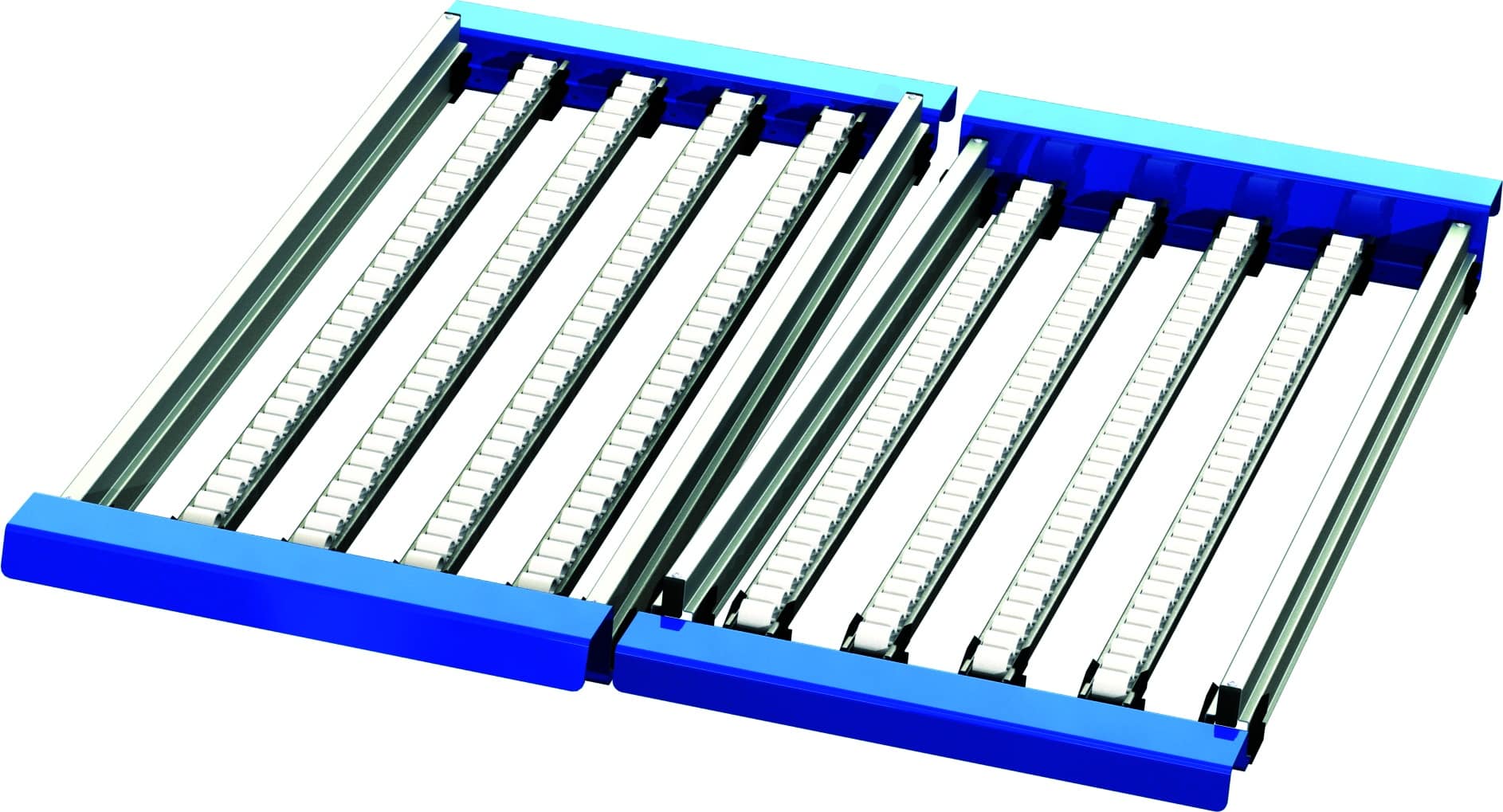

Narrow FIFO flow-shelves
A narrow FIFO flow shelf that can be turned in opposite direction to become a return lane for empty bins or boxes. Smart steel profiles fit over beams in a pallet rack with a depth of 1100 mm. 2 pcs will fit in a 950 mm wide section.
| ART. NO. | WIDTH | DEPTH | SPECIFICATION |
|---|---|---|---|
| 15 901-0403 | 470 mm | 1100 mm | FIFO flow shelf with 4 rollers and 3 dividers, providing 2 channels suitable for plastic bins or cardboard boxes with a maximum width of 200 mm |
| 15 901-0402 | 470 mm | 1100 mm | FIFO flow shelf with 4 rollers and 2 dividers, providing 1 channel suitable for plastic bins or cardboard boxes with a maximum width of 400 mm |
Storage according to
THE FIFO PRINCIPLE
FLOW SHELVES MAX LOAD CAPACITY 600 KG PER LEVEL
FIFO FLOW SHELF
with rollers FOR HIGH
TURNOVER PRODUCTS
TILTED PALLET
Maximum accessibility
during picking. Max load
capacity 500 kg
Easy to Install
Drastic TIME SAVINGS in order pickingÂ
INCREASED
PRODUCTIVITY

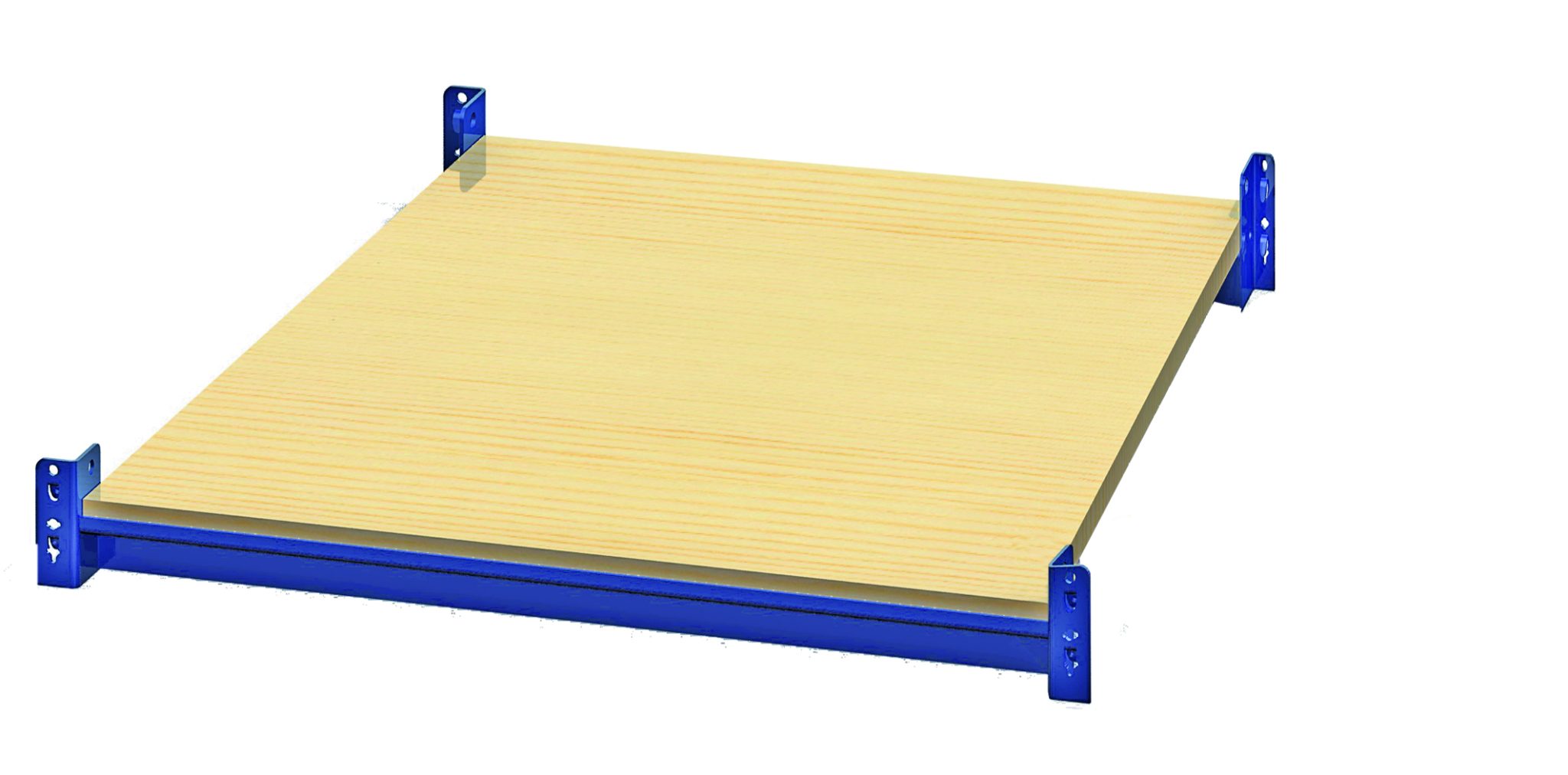

Worktop
Turn your pallet rack section into a workbench. Complete section with upright-mounted profiles and a 28 mm worktop. Fit our standard racks only, for other brands please contact us.
| ART. NO. | WIDTH | DEPTH | SPECIFICATION |
|---|---|---|---|
| 15 911-0 | 940 mm | 1100 mm | Complete set for 950 mm section |

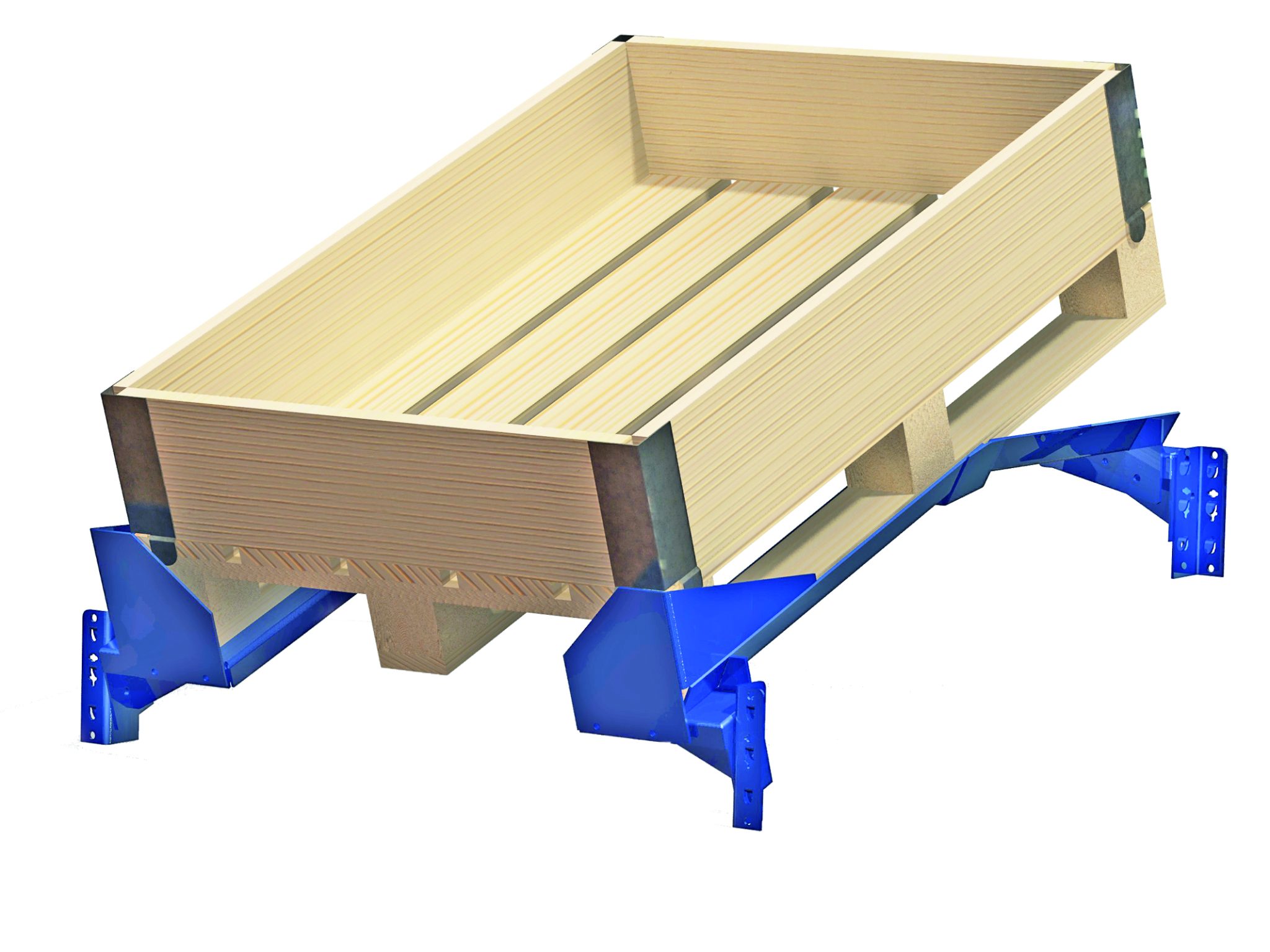

Pallet tilt profiles
Pallet tilt profiles allows full access to components in a pallet. The pallet is loaded by a fork lift or stacker truck, normally from the rear. When the forks are lowered, the pallet slowly tilts forward giving access to the goods. When the pallet is empty, the operator pushes the pallet back and it will sit horizontally, ready to be picked up and replaced with a full pallet. For short-side handled EUR pallets. Fits our standard rack with section width 950 mm.
| ART. NO. | WIDTH | DEPTH | SPECIFICATION |
|---|---|---|---|
| 15 500-0 | 892 mm | 1100 mm | Max pallet weigh 500 kg |

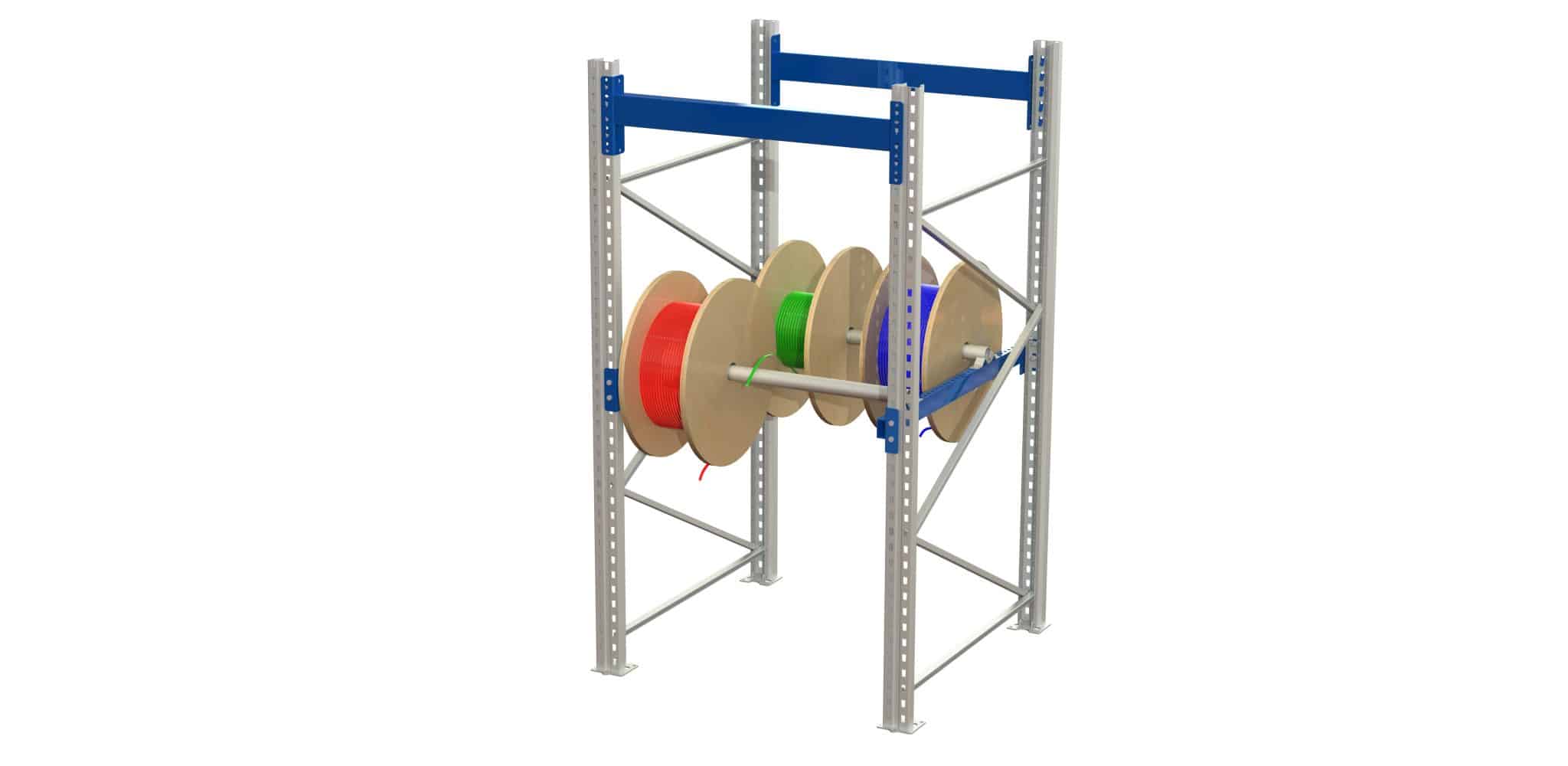

Cable drum storage
A practical solution for storing cable drums in pallet racking. Pull cable to unwind drum. Buy 1 set of beams and 1-3 axles depending on how many drums that fits in depth. Fits our standard racks only, for other brands please contact us.
| ART. NO. | SPECIFICATION |
|---|---|
| 15 510-1 | Axle holder, for 1 to 3 positions in depth. Max total load 500 kg |
| 15 510-4 | 50 mm axle for section width 950 mm. Max load 500 kg |

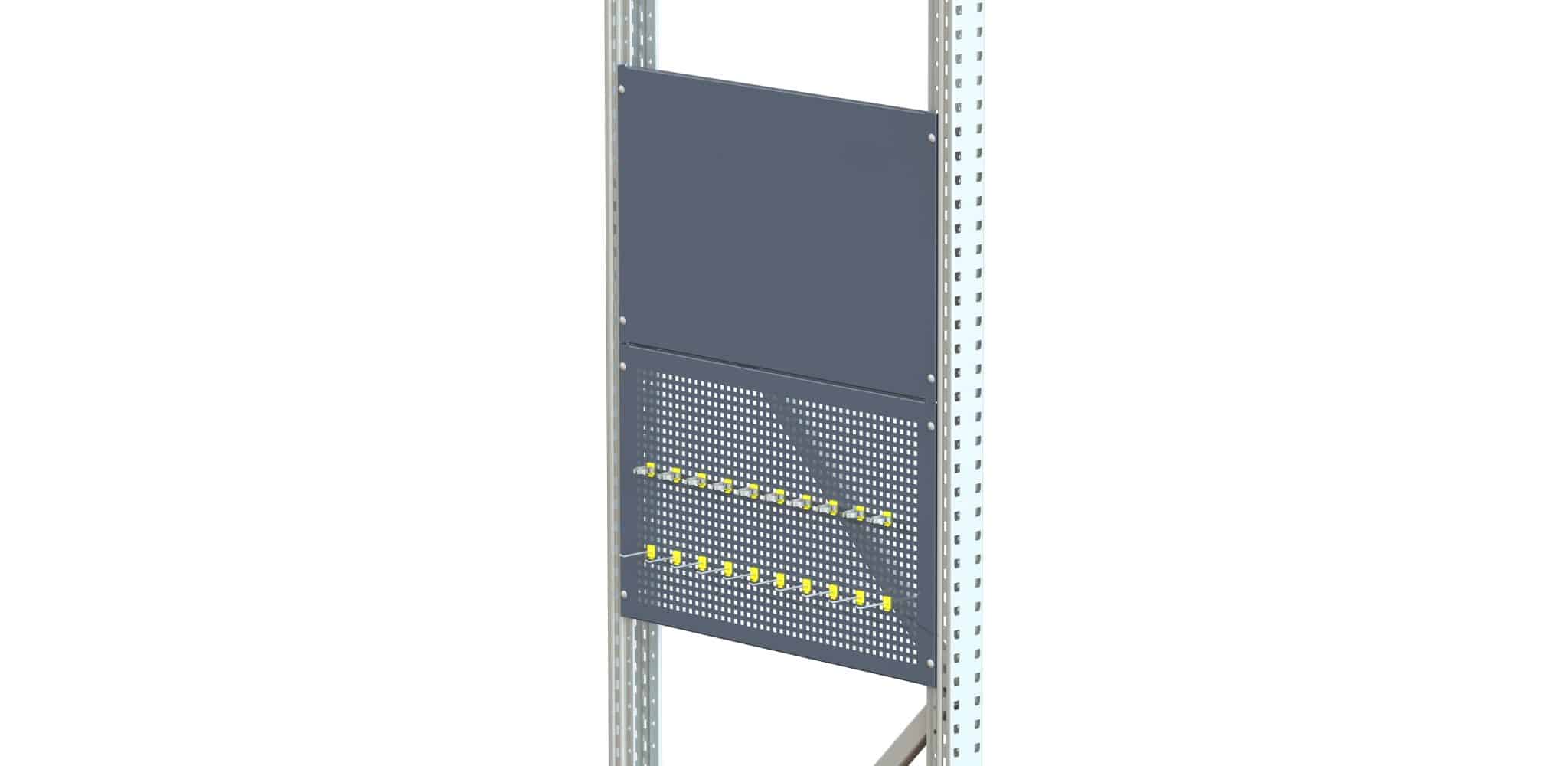

Tool board and covering panels for frame uprights
Smooth or perforated panels to be installed directly in the pallet rack construction. A simple accessory that truly enhances your interior. Get a sleek and smooth upright in your pallet racks or tool boards at the production area.
| ART. NO. | WIDTH | DEPTH | SPECIFICATION |
|---|---|---|---|
| 62 601050P | 1050 mm | 500 mm | Upright-mounted tool panel |
| 62 601050R | 1050 mm | 500 mm | Upright-mounted covering panel |
| 62 201050R | 1050 mm | 200 mm | Upright-mounted covering panel |
Flow Racks Features
Click the buttons and read more about features
Storage according to
THE FIFO PRINCIPLE
FLOW SHELVES MAX LOAD CAPACITY 600 KG PER LEVEL
FIFO FLOW SHELF
with rollers FOR HIGH
TURNOVER PRODUCTS
TILTED PALLET
Maximum accessibility
during picking. Max load
capacity 500 kg
Easy to Install
Drastic TIME SAVINGS in order pickingÂ
INCREASED
PRODUCTIVITY

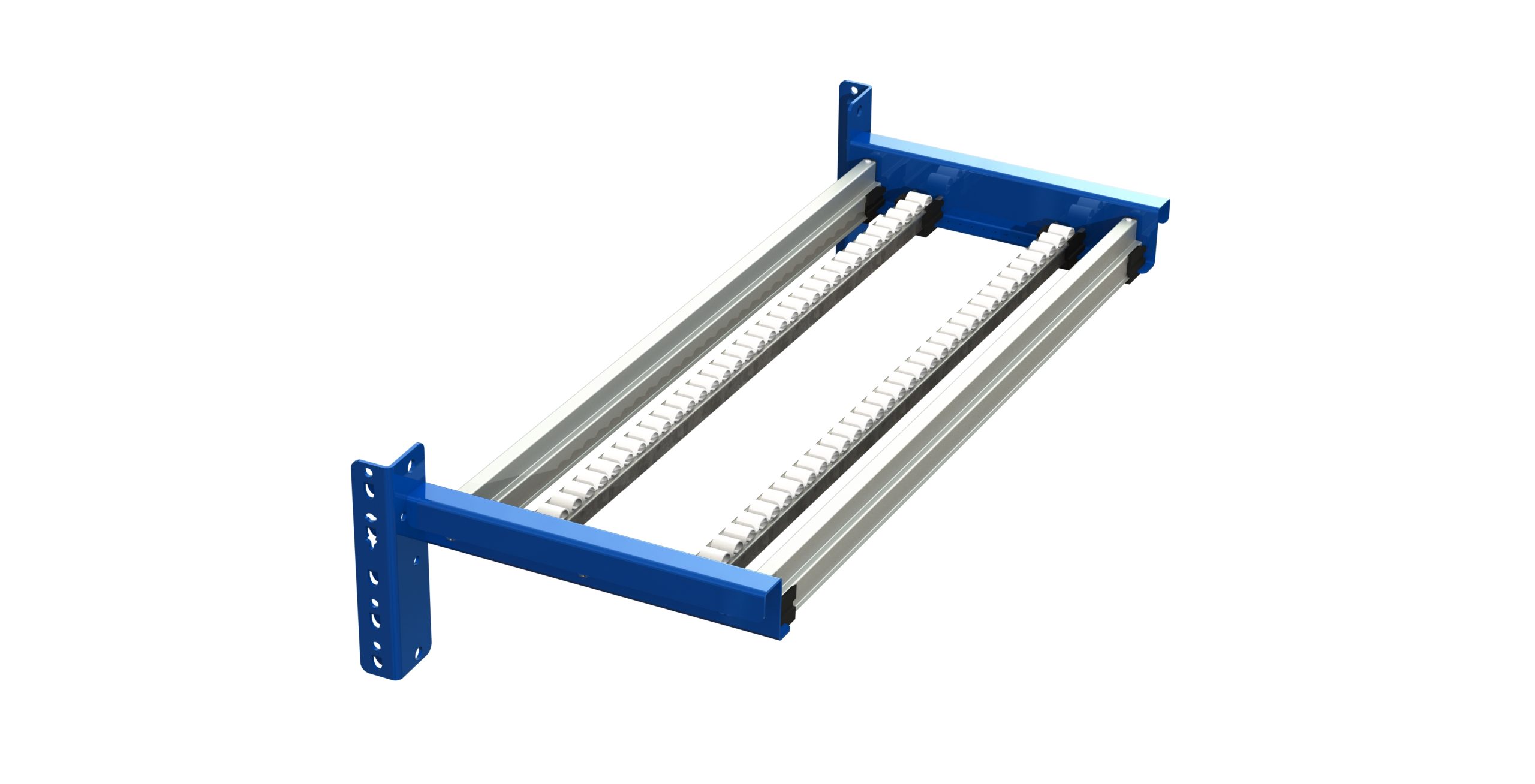

End-of-rack FIFO shelves
Increase storage capacity by adding FIFO flow shelves mounted outside the rack. Available in three widths, each containing 2 rollers, 2 side supports and an end stop. It´s possible to mount them as return lanes for empty bins or boxes.
| ART. NO. | WIDTH | SPECIFICATION |
|---|---|---|
| 15 902-0202 | 200 mm | End-of-rack FIFO flow shelf with 2 rollers, side supports and material stop |
| 15 903-0202 | 300 mm | End-of-rack FIFO flow shelf with 2 rollers, side supports and material stop |
| 15 904-0202 | 400 mm | End-of-rack FIFO flow shelf with 2 rollers, side supports and material stop |

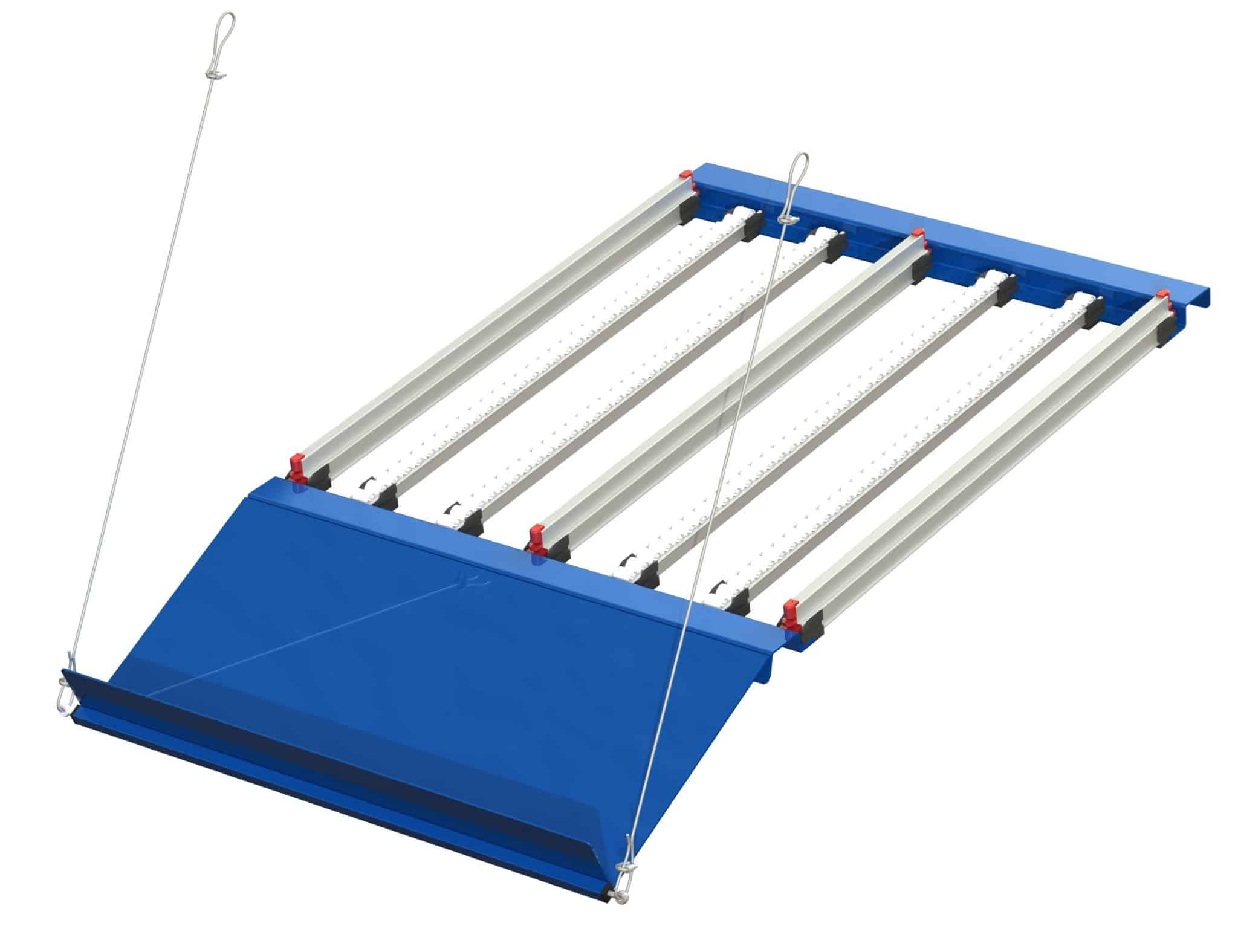

FIFO flow shelf with adjustable extension
A FIFO flow shelf with a 300 mm extension shelf for easy access. Angle is adjustable for best ergonomics. Select number of lanes to match width of plastic bins or cardboard boxes. Smart steel profiles fit over beams in a pallet rack with a depth of 1100 mm. 1 pcs will fit in a 950 mm wide section.
| ART. NO. | WIDTH | DEPTH | SPECIFICATION |
|---|---|---|---|
| 15 905-0805 | 940 mm | 1400 mm | 8 rollers and 5 dividers, providing 4 channels suitable for plastic bins or cardboard boxes with a maximum width of 200 mm. |
| 15 905-0604 | 940 mm | 1400 mm | 6 rollers and 4 dividers, providing 3 channels suitable for plastic bins or cardboard boxes with a maximum width of 300 mm. |
| 15 905-0403 | 940 mm | 1400 mm | 4 rollers and 3 dividers, providing 2 channels suitable for plastic bins or cardboard boxes with a maximum width of 400 mm. |
