Trojka Pull-out shelving
Smart Storing’s Trojka is a floor-mounted pull-out unit
with a 3-sided shelving. This solution is cost-effective
and allows for a lot of storage on a small floor space. The
unit is specially designed for third-party logistics handling
lighter items. It is ergonomic and easy to use, with a
wide range of practical accessories.
Features
Click the buttons and read more about features
85%
PULL-OUT CAPACITY
ACCESS FROM
THREE DIFFERENT
DIRECTIONS!
LOAD
100% CAPACITY
800 OR 1500 KG PER UNIT
70 OR 200 KG PER SHELF
The top can also
be used for storage
Handles included!
Choose up to 9 SHELVES'
ACCESSORIES to customize
to your needs
SHELF
Depth 400 mm Width 750 mm Load capacity up to 200 kg/shelf
When using 8 shelves, you get
19.2 METERS OF SHELF SPACE ON ONE SINGLE PALLET SPACE
THE PULL-OUT UNIT IS FULLY ASSEMBLED and the shelving is assembled in place with simple assembly in a few steps
FOOT-OPERATED RELEASE CATCH
Automatically locks and is easily
released with a foot press

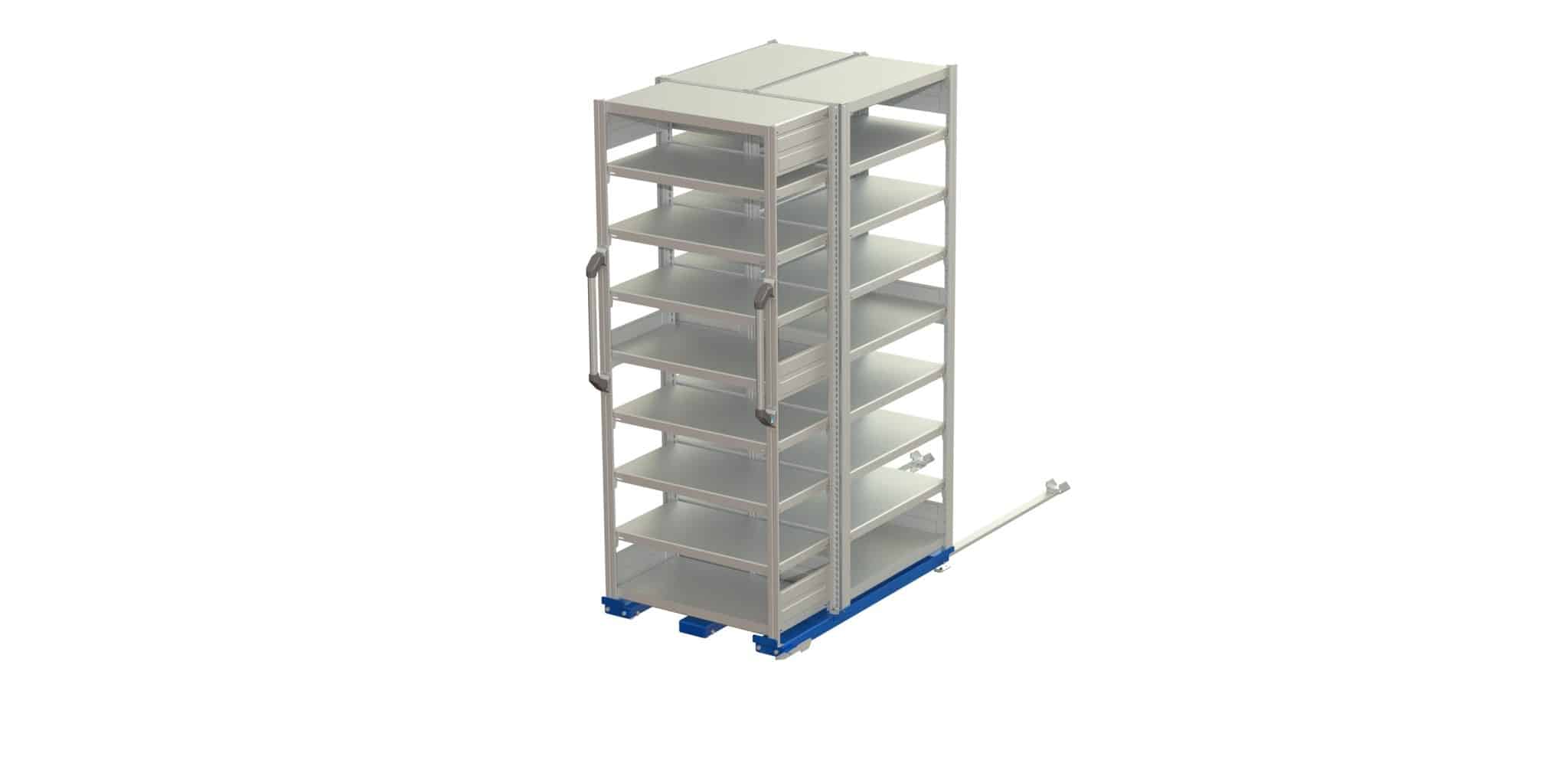

Trojka – Pull-out shelving 1500 kg
Automatically locks in the retracted position. Side handle, foot lock, and mounting kit for concrete floor included. Shelf size width 750 mm and depth 400 mm. Weight capacity 200 kg per shelf.
| ART. NO. |  |  |  Width |  Depth |  Height | SPECIFICATION |
|---|---|---|---|---|---|---|
| 65 131500-03 | 1500 kg per unit | 85% | 889 mm | 1374 mm | 1924 mm | 3 shelves per side |
| 65 131500-04 | 1500 kg per unit | 85% | 889 mm | 1374 mm | 1924 mm | 4 shelves per side |
| 65 131500-05 | 1500 kg per unit | 85% | 889 mm | 1374 mm | 1924 mm | 5 shelves per side |
| 65 131500-06 | 1500 kg per unit | 85% | 889 mm | 1374 mm | 1924 mm | 6 shelves per side |
| 65 131500-07 | 1500 kg per unit | 85% | 889 mm | 1374 mm | 1924 mm | 7 shelves per side |
| 65 131500-08 | 1500 kg per unit | 85% | 889 mm | 1374 mm | 1924 mm | 8 shelves per side |
Trojka – Pull-out shelving 800 kg
Automatically locks in the retracted position. Side handle, foot lock, and mounting kit for concrete floor included. Shelf size width 750 mm and depth 400 mm. Weight capacity 70 kg per shelf.
| ART. NO. | | | Width | Depth | Height | SPECIFICATION |
|---|---|---|---|---|---|---|
| 65 130800-03 | 800 kg per unit | 85% | 889 mm | 1374 mm | 1924 mm | 3 shelves per side |
| 65 130800-04 | 800 kg per unit | 85% | 889 mm | 1374 mm | 1924 mm | 4 shelves per side |
| 65 130800-05 | 800 kg per unit | 85% | 889 mm | 1374 mm | 1924 mm | 5 shelves per side |
| 65 130800-06 | 800 kg per unit | 85% | 889 mm | 1374 mm | 1924 mm | 6 shelves per side |
| 65 130800-07 | 800 kg per unit | 85% | 889 mm | 1374 mm | 1924 mm | 7 shelves per side |
| 65 130800-08 | 800 kg per unit | 85% | 889 mm | 1374 mm | 1924 mm | 8 shelves per side |

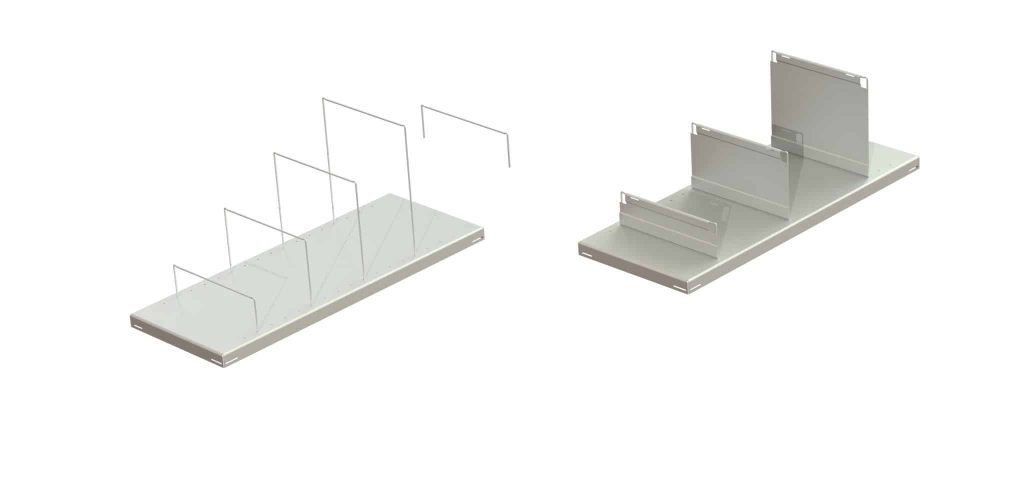

SHELF DIVIDERS are available as Accessories
