Picking and Storage Bins Manual

Picking and storage bins

Plastic bins offer an effective storage solution in warehouses or production, making it easy to find and pick components. They are ideal for use in many of our other products, including pull-out units and Compact Storage Units.

Organize even more

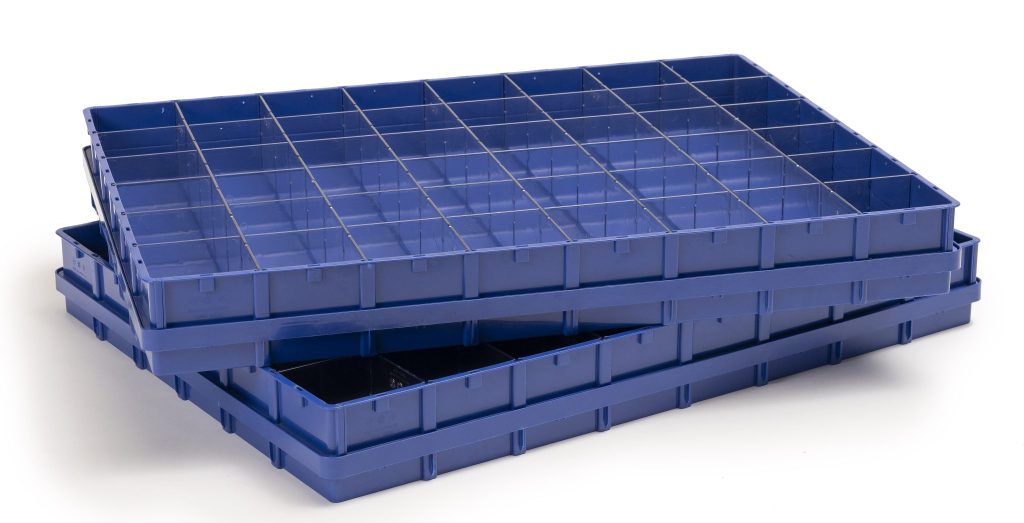

Flexi Box

There were no storage organizers for small items on the market that fully met our customers’ needs, so we introduced our own. Smart Storing Flexiboxes have a distinctive feature: the compartments are customizable, and the contents are easily visible at a glance, thanks to the removable clear plastic dividers. Comes complete with 12 dividers that gives 48 compartments.

ART. NO.	LENGTH X WIDTH X HEIGHT	SPECIFICATION
7864050	800 x 600 x 50 mm	48 compartments
7864100	800 x 600 x 100 mm	48 compartments
7864150	800 x 600 x 150 mm	48 compartments
7864200	800 x 600 x 200 mm	48 compartments

SELECT HEIGHT

Flexibox is available in four heights: 50 mm, 100 mm, 150 mm, and 200 mm.

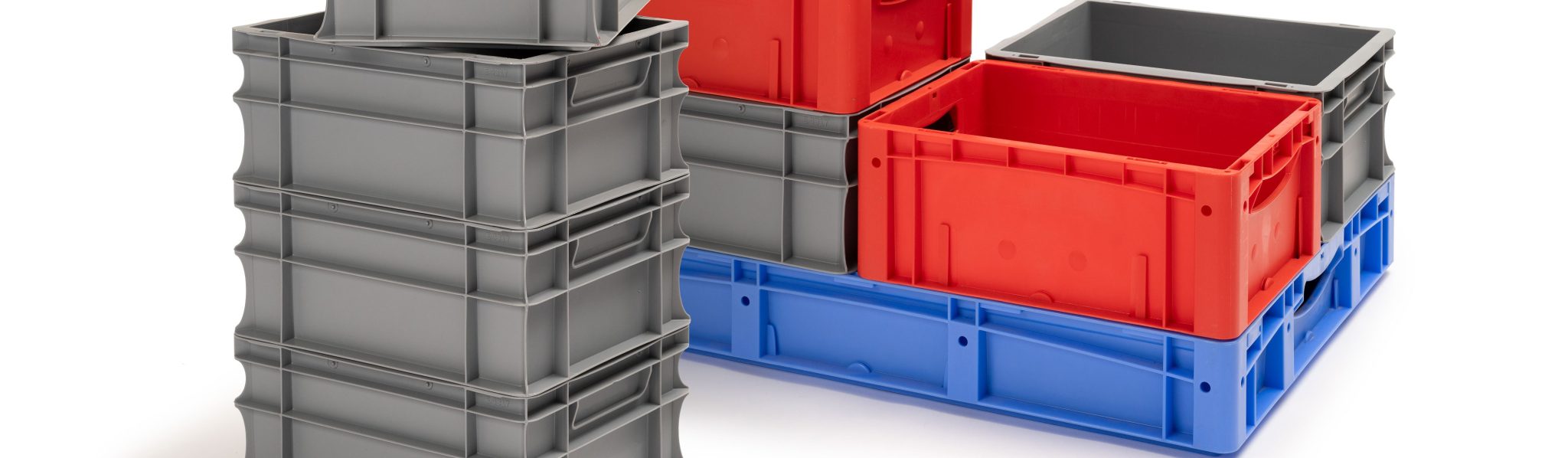

Stackable Euro-crates

Euro-crates offer an efficient storage solution in warehouses or production, making the picking of components easy. They are well-suited for use in many of our other products, including pull-out units and Compact Storage Units. The crate size of 400 x 300 mm is suitable and popular for 100% pull-out units, accommodating 8 crates per shelf. The crate size of 600 x 400 mm is suitable for 70% pull-out units, accommodating 4 crates per shelf.

ART. NO. BLUE	ART. NO. RED	ART. NO. GREY	OUTER DIMENSIONS LENGTH x WIDTH x HEIGHT	INNER DIMENSIONS LENGTH x WIDTH x HEIGHT	VOLUME	LOAD CAPACITY	PER PALLET
XL43171B	XL43171R	22 E4317C	400 x 300 x 170 mm	368 x 268 x 167 mm	16 L	30 kg	96 pcs
XL64171B	XL64171R	22 E6417C	600 x 400 x 170 mm	568 x 368 x 166 mm	34 L	15 kg	48 pcs

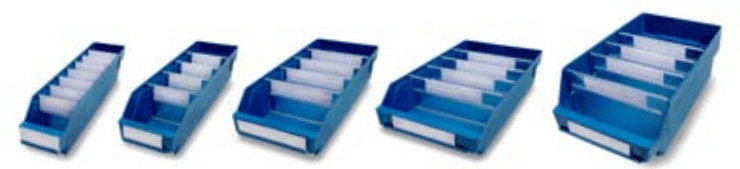

Component bins

If you need to organize, store, and locate your small components, our series of component bins is an excellent choice. They fit perfectly into our new Compact Storage Unit “CSU Light” and, with an adapter bar, also into our standard Compact Storage Units. Accessories such as labels and label holders help you maintain order and tidiness. These are high-quality, Swedish-made products crafted from high-impact polypropylene, featuring a cost-effective and compact ergonomic design.

COMPONENT BIN

ART. NO.	SPECIFICATION
75 4009	Component bin D400 xW90 x H95 mm
75 4012	Component bin D400 x W120 x H95 mm
75 4018	Component bin D400 x W180 x H95 mm
75 4024	Component bin D400 x W240 x H95 mm
75 4024-15	Component bin D400 x W240 x H150 mm

DIVIDER

ART. NO.	SPECIFICATION
75 0401	Divider P09, fits bin 75 4009
75 0402	Divider P12, fits bin 75 4012
75 0405	Divider P18, fits bin 75 4018
75 0403	Divider P24, fits bin 75 4024
75 0404	Divider P24-15, fits bin 75 4024-15
