Pallet Storage Units (PSU)

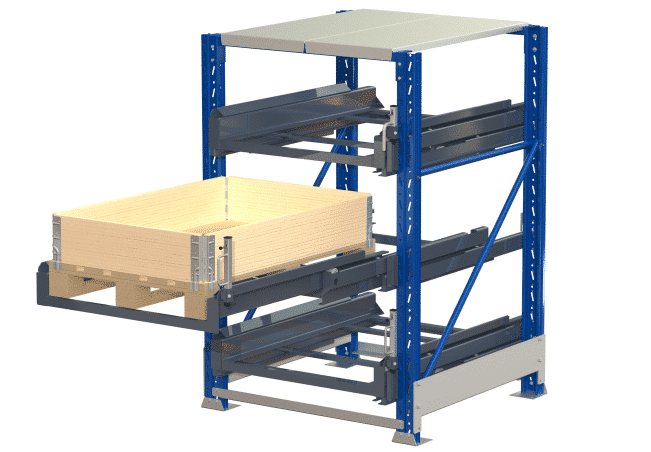

The PSU (Pallet Storage Unit)
is a complete rack system for
palletized goods.
If your production processes
involve heavy pallets from which
you pick components, this storage
system is for you. This type of handling can be challenging to
achieve within a confined space but can still be crucial for your
daily operations.
Here, there is an opportunity for flexible storage where you need
it, such as near a machine or production line.
Features
Click the buttons and read more about features
FLEXIBLE STORAGE
Provides the flexibility to store
materials where you need
them, such as near a machine
or production line.
OPTIONAL SHELF LOCK which prevents more than one shelf being pulled out at once
NO INSTALLATION REQUIRED!
The units are delivered fully
assembled and function-tested!
100% and 70% PULL-OUT CAPACITY
UP TO 1800 KG PER MODULE
Side panels
available on
request
For short-side handled EUR-pallets. Standard colours: blue frame and grey shelves. Optional shelf lock which prevents more than one shelf being pulled out at once. Units without shelf lock can be rear-loaded. Load area: 835 x 1220 mm.
| ART. NO. |  |  |  width |  Depth |
| SPECIFICATION |
|---|---|---|---|---|---|---|
| 15 112-0 | 600 kg per shelf | 70% 1-way | 1170 mm | 1360 mm | 1707 mm | 2 shelves |
| 15 113-0 | 600 kg per shelf | 70% 1-way | 1170 mm | 1360 mm | 1707 mm | 3 shelves |
| 15 112-1 | 600 kg per shelf | 70% 1-way | 1170 mm | 1360 mm | 1707 mm | 2 shelves, shelf lock |
| 15 113-1 | 600 kg per shelf | 70% 1-way | 1170 mm | 1360 mm | 1707 mm | 3 shelves, shelf lock |
Height| ART. NO. | |  | width | Depth |
| SPECIFICATION |
|---|---|---|---|---|---|---|
| 15 122-0 | 600 kg per shelf | 100% 1-way | 1170 mm | 1360 mm | 1707 mm | 2 shelves |
| 15 123-0 | 600 kg per shelf | 100% 1-way | 1170 mm | 1360 mm | 1707 mm | 3 shelves |
| 15 122-1 | 600 kg per shelf | 100% 1-way | 1170 mm | 1360 mm | 1707 mm | 2 shelves, shelf lock |
| 15 123-1 | 600 kg per shelf | 100% 1-way | 1170 mm | 1360 mm | 1707 mm | 3 shelves, shelf lock |
