Pallet accessories
Pallet accessories

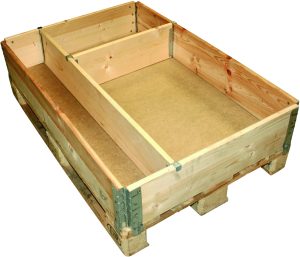

Heavy duty pallet box dividers
To make a really sturdy unit for storing heavy items, we recommend using wooden dividers of the same 22 mm thickness as the pallet collar itself. Dividers come with metal brackets to hold them in place. Just snap these into place on the collars wherever you want to make a division and secure the bracket with one screw. Very useful if you have long heavy items to store, or a combination of different sized items to store together.
| ART. NO. | SPECIFICATION |
|---|---|
| 5903079 | Length 554 mm, divider with 2 mounting brackets |
| 5903080 | Length 743 mm, divider with 2 mounting brackets |
| 5903081 | Length 1154 mm, divider with 2 mounting brackets |

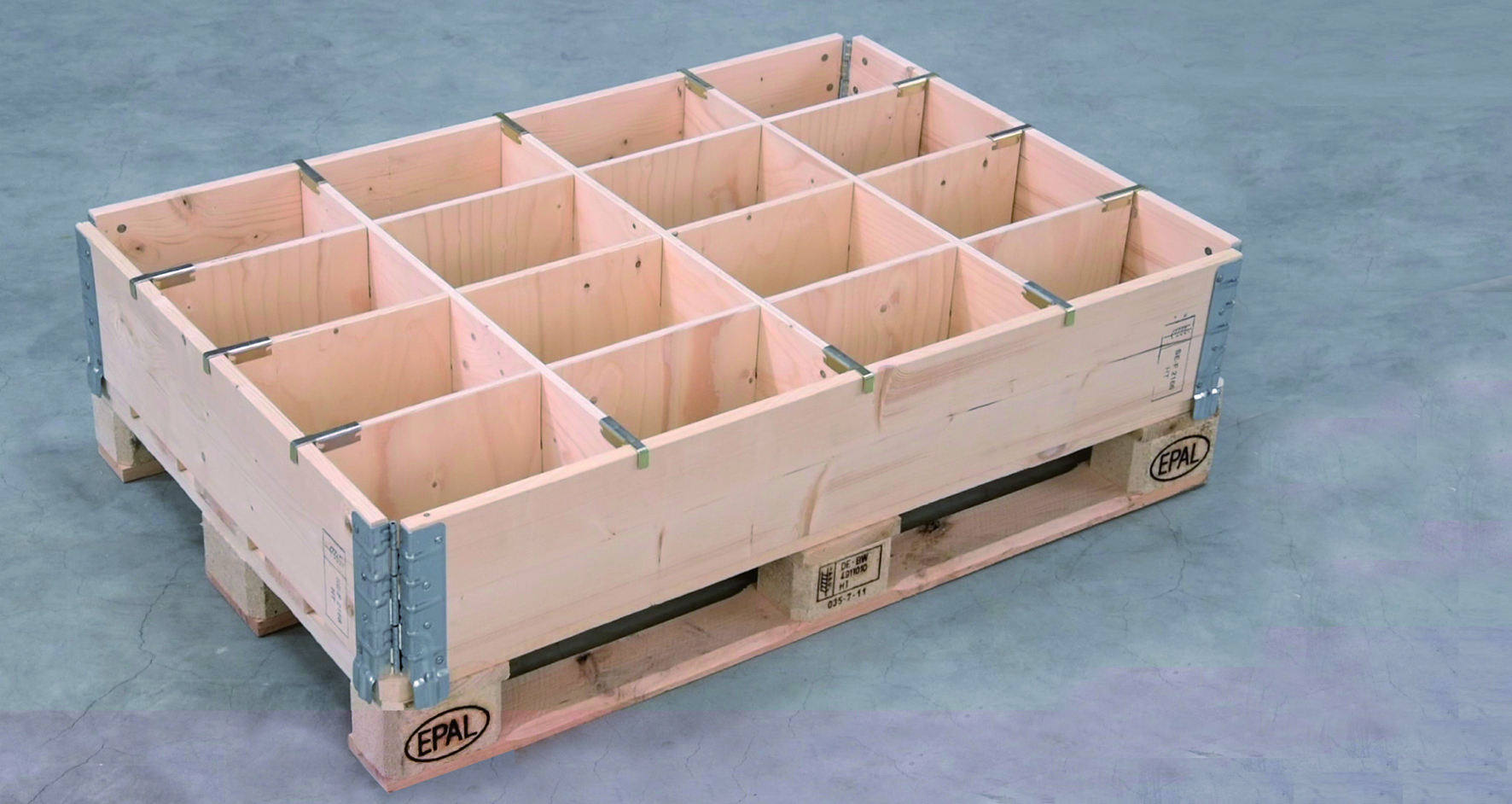

Slotted plywood pallet collar dividers
Our standard dividers for Euro pallets are hung from the pallet collar sides using the integral metal fitting and are slotted to intersect with each other, thus dividing the box both lengthwise and crosswise to make your compartments. Complete sets for 4, 8 or 16 compartments. Also available for other pallet sizes.
| ART. NO. | NO OF COMPARTMENTS | COMPARTMENT SIZE | PALLET TYPE |
|---|---|---|---|
| 5903004 | 4 | 570 x 372 mm | Euro |
| 5903008 | 8 | 372 x 280 mm | Euro |
| 5903016 | 16 | 280 x 180 mm | Euro |
PALLET COLLAR DIVIDERS IN PLASTIC – FLEXIBLE, QUICK & EASY!
For smaller sized compartments and more flexibility, we suggest plastic box dividers. These come in two different sizes – Standard and Jumbo, depending on how heavy your items are and how many compartments you want. Made of recycled polypropylene/polyethylene mix, they’re easy to cut to different lengths if required, but are normally supplied in 750mm and 1150mm lengths to fit the short and long sides of the pallet box.
Plastic dividers are ideal for delicate or expensive tools, which are better protected by fitting the compartment size correctly to their dimensions. They are also used in food industry applications where wood is not permitted.
Plastic dividers Jumbo
Made from recycled PP/PE. Very robust, thickness = 15 mm. Cut to length as needed.
| ART. NO. | DIVISION | LENGTH | HEIGHT | THICKNESS |
|---|---|---|---|---|
| 25 AVD301 | 37 mm | 1150 mm | 180 mm | 15 mm |
| 25 AVD302 | 37 mm | 950 mm | 180 mm | 15 mm |
| 25 AVD303 | 37 mm | 750 mm | 180 mm | 15 mm |
Plastic dividers Standard
Made from recycled PP/PE. Thickness = 10 mm. Cut to length as needed.
| ART NO. | DIVISION | LENGTH | HEIGHT | THICKNESS |
|---|---|---|---|---|
| 25 AVD201 | 28 mm | 1150 | 120 mm | 10 mm |
| 25 AVD202 | 28 mm | 950 | 120 mm | 10 mm |
| 25 AVD203 | 28 mm | 750 | 120 mm | 10 mm |
Slotted plywood pallet collar dividers
As a complement to our complete kits listed on the previous page, individual dividers are also available.
| ART. NO. | SPECIFICATION | LENGTH | HEIGHT | FITS |
|---|---|---|---|---|
| 5903010 | 3 slots | 1154 mm | 190 mm | FIN and EUR-pallet: lengthwise |
| 5903020 | 3 slots | 756 mm | 190 mm | EUR-pallet crosswise or ½ EUR-pallet lengthwise |
| 5903021 | 1 slot | 756 mm | 190 mm | EUR-pallet crosswise or ½ EUR-pallet lengthwise |
| 5903030 | 3 slots | 554 mm | 190 mm | 1/2 EUR-pallet. crosswise |
| 5903040 | 4 slots | 956 mm | 190 mm | FIN-pallet: crosswise |
Goods supports
Keep axis, tubes and other long items in place when stored on a pallet. These smart supports fit on EUR, FIN and 1/2 EUR-pallets and are available in three heights.
| ART. NO. | HEIGHT | SPECIFICATION |
|---|---|---|
| 5903600 | 200 mm | Set of 4 |
| 5903601 | 400 mm | Set of 4 |
| 5903602 | 600 mm | Set of 4 |
Steel stacking corners
These durable galvanized steel corners facilitate pallet stacking by securing an additional pallet on top of a pallet collar, preventing slippage. A set of 4 corners supports loads of up to 2000 kg. Please be aware that the maximum weight capacity may vary based on the type and condition of pallets and pallet collars in use.
| ART NO. | SPECIFICATION |
|---|---|
| 5903503 | Galvanized steel, 100 pcs per package |
Pallet collar grip
If you’re losing small items between the pallet collar and the pallet, you need a way to hold the collar down on to the pallet. Smart Storing’s pallet collar grips do just that, with a simple piece of sprung wire, ridged on the underside so it stays where it’s put. Simply snap into place – no need to tie or lash the collar down any more – and the grips can be used over and over. vailable for one to four pallet collars, in sets of 4.
| ART. NO. | SPECIFICATION |
|---|---|
| 5903520 | For 1 pallet collar in height, set of 4 |
| 5903521 | For 2 pallet collars in height, set of 4 |
| 5903522 | For 3 pallet collars in height, set of 4 |
| 5903523 | For 4 pallet collars in height, set of 4 |
Plastic stacking corners
These durable plastic corners facilitate pallet stacking by securing an additional pallet on top of a pallet collar, preventing slippage. Crafted from high-density polyethylene, our Stacking Corners boast longevity, washability, chemical resistance, and resilience to both heat and frost without cracking. A set of 4 corners supports loads of up to 2000 kg. Please be aware that the maximum weight capacity may vary based on the type and condition of pallets and pallet collars in use.
| ART. NO. | SPECIFICATION |
|---|---|
| 5903500-144 | Black, package of 144 pcs |
| 5903501-144 | Yellow, package of 144 pcs |
| 5903502-144 | Blue, package of 144 pcs |
Pallet Separators
For temporary storage at an assembly station, whether you’re using pallets with or without pallet collars, our pallet separators provide a solution for convenient component picking. Crafted from galvanized steel, these brackets secure over each corner of the pallet or pallet collar, supporting the next pallet with a gap in between.Effectively creating an economical temporary pallet rack, this system optimizes floor space, improves ergonomics during component picking, and can be easily assembled and disassembled as needed.

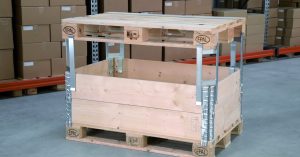

Pallet separator – Collar to pallet
Sturdy galvanized steel brackets designed to fit securely over each corner of a pallet collar, offering robust support for the pallet stored above. Available with a convenient 250, 400 or 700 mm gap between pallets, our set of 4 pallet spacers can handle a load of up to 1000 kg, allowing you to efficiently stack pallets in height. Please be aware that the maximum weight capacity may vary based on the type and condition of pallets and pallet collars in use.
| ART. NO. | SPECIFICATION |
|---|---|
| 5903550 | Free space between collar and pallet: 250 mm. Set of 4 pcs |
| 5903552 | Free space between collar and pallet: 400 mm. Set of 4 pcs |
| 5903553 | Free space between collar and pallet: 700 mm. Set of 4 pcs |

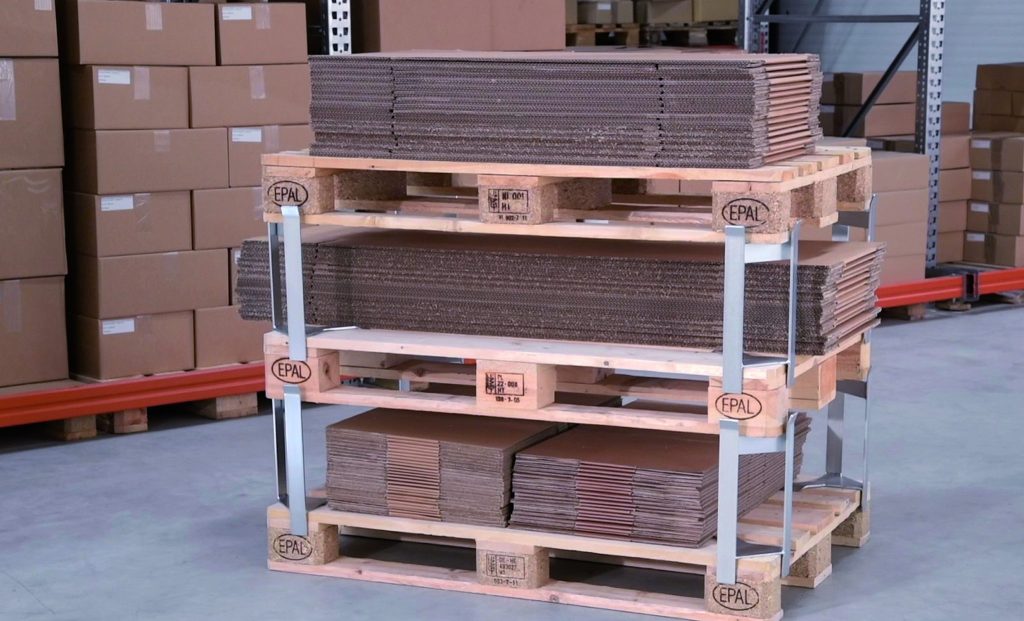

Pallet separator – Pallet to pallet
Sturdy galvanized steel brackets designed to fit securely over each corner of a pallet, offering robust support for the pallet stored above. Available with a convenient 250, 400 or 700 mm gap between pallets, our set of 4 pallet spacers can handle a load of up to 1000 kg, allowing you to efficiently stack pallets in height. Please be aware that the maximum weight capacity may vary based on the type and condition of pallets in use.
| ART. NO. | SPECIFICATION |
|---|---|
| 5903551 | Free space between pallets: 250 mm. Set of 4 pcs |
| 5903554 | Free space between pallets: 400 mm. Set of 4 pcs |
| 5903555 | Free space between pallets: 700 mm. Set of 4 pcs |
