Mobile Pallet Units- (MPU)
Mobile Pallet Units are similar to Compact Storage Units but designed for handling heavier loads such as pallets and boxes. This means they can be loaded with a forklift and are robust enough for tough handling. They are also designed to be mobile – either with a forklift or by rolling on their own wheels. These units are often used in assembly areas in factories. If you manufacture large products like generators and turbines, it’s essential to ensure that your workstations have materials readily available. Mobile material carts with pull-out units store materials in a space-saving manner.
Features
Click the buttons and read more about features
MOVE WITH A FORKLIFT
OR ON ITS WHEELS
100% PULL-OUT CAPACITY
70% PULL-OUT CAPACITY
LOAD CAPACITY 300 KG PER SHELF
NO INSTALLATION REQUIRED!
The units are delivered fully
assembled and function-tested
SHELF LOCK ensures that only
one shelf at a time can be
extracted
Counterweights, in combination
with shelf lock, make the unit
secure against tipping
Counterweights, in combination
with shelf lock, make the unit
secure against tipping

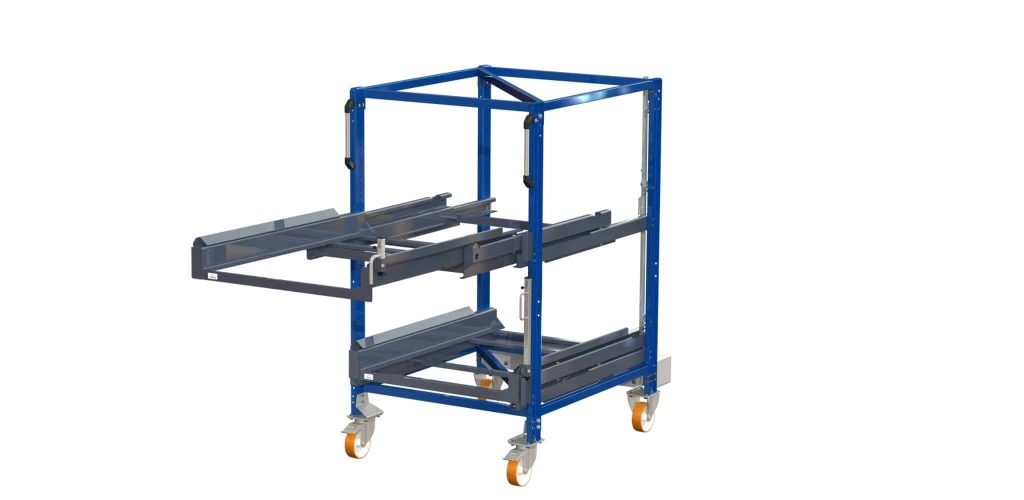

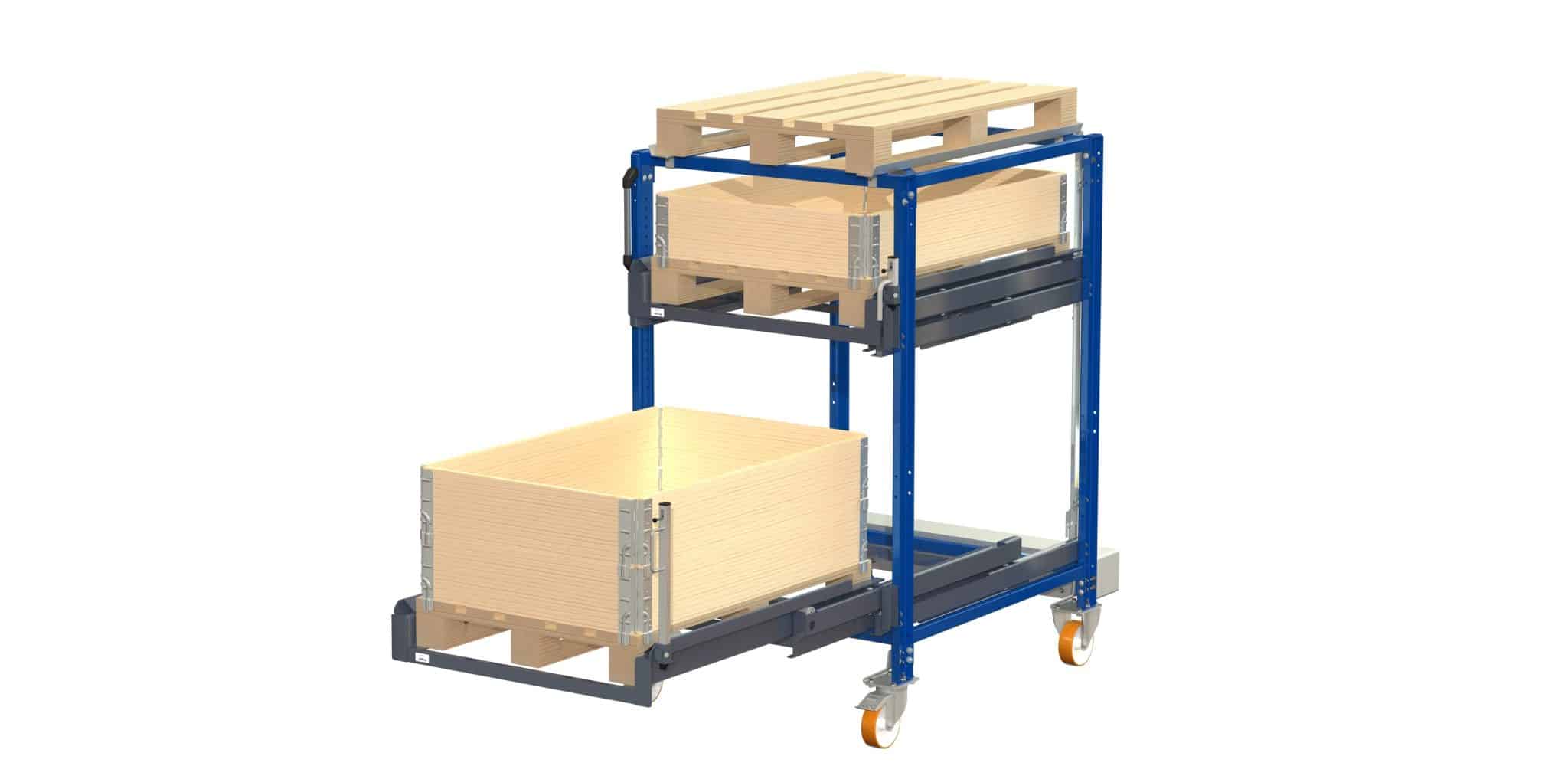

MPU – Mobile Pallet Unit
70% pull-out capacity
Short-side handled for EUR pallets
| ART. NO. |  |
 |
 width |
 Height |
 Depth |
SPECIFICATION |
|---|---|---|---|---|---|---|
| 21 312-1 | 300 kg | 70% | 1016 mm | 1403 mm | 1760 mm | 2 shelves |
| 21 313-1 | 300 kg | 70% | 1016 mm | 1403 mm | 1760 mm | 3 shelves |
MPU – Mobile Pallet Unit
100% pull-out capacity
Short-side handled for EUR pallets
| ART. NO. | |
|
width |
Height |
Depth |
SPECIFICATION |
|---|---|---|---|---|---|---|
| 21 312-1 | 300 kg | 70% | 1016 mm | 1403 mm | 1760 mm | 2 shelves |
| 21 313-1 | 300 kg | 70% | 1016 mm | 1403 mm | 1760 mm | 3 shelves |
Counterweights and wheels
With a wheel kit you can move the MPU by hand!
Nylon Wheels:
Hard material – rolls with less resistance, more durable but a bit noisy.
Polyurethane Wheels:
Softer material – silent but with a bit higher rolling resistance.
| ART. NO. | LOAD CAPACITY | SPECIFICATION |
|---|---|---|
| 22 1200-N | 1200 kg | 4 nylon wheels: 2 fixed wheels and 2 swivel wheels with brakes |
| 22 1200-P | 1200 kg | 4 polyurethane wheels: 2 fixed wheels and 2 swivel wheels with brakes |
| 22 1800-P | 1800 kg | 4 polyurethane wheels: 2 fixed wheels and 2 swivel wheels with brakes |
