Loop storage racks

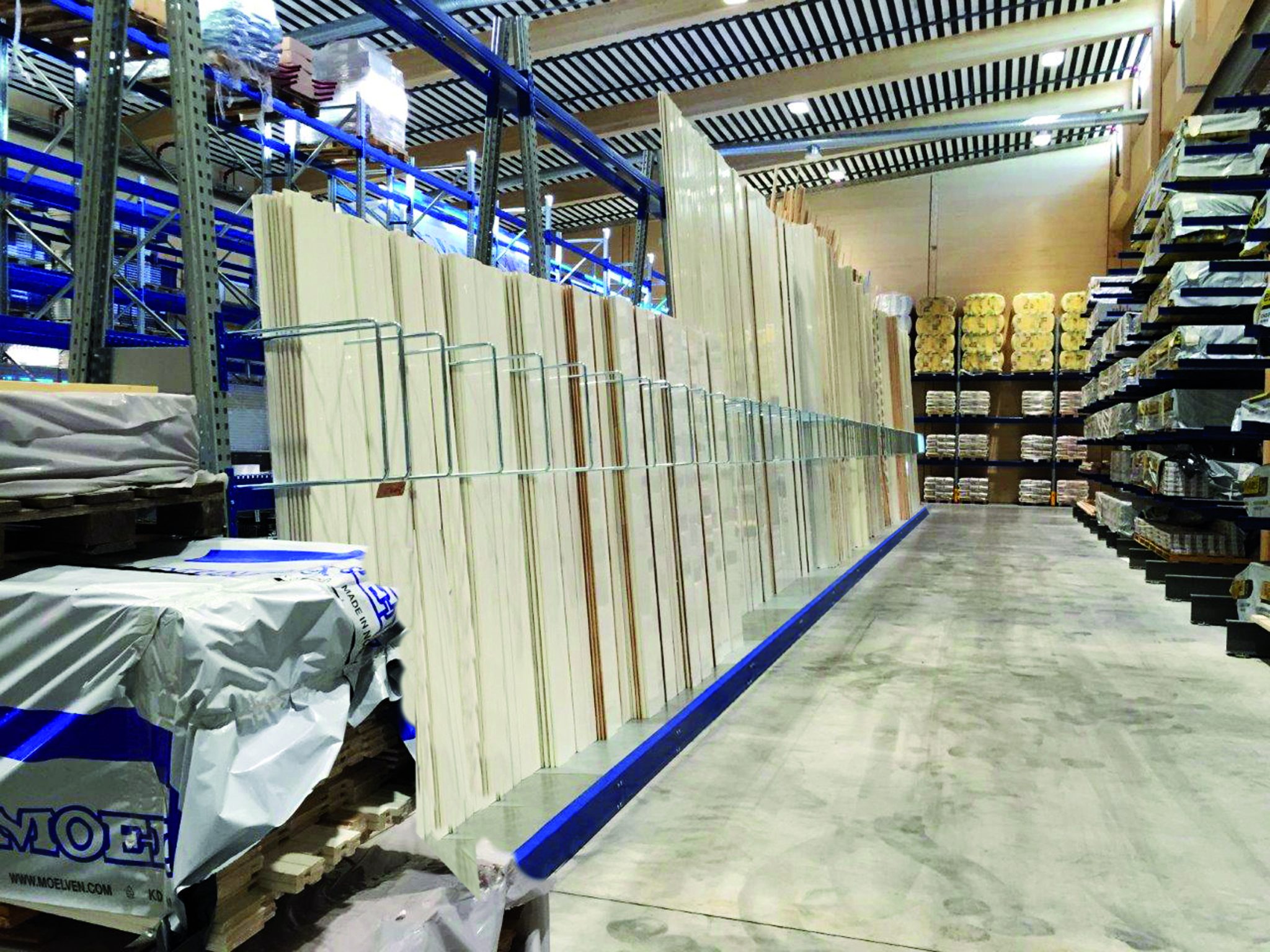

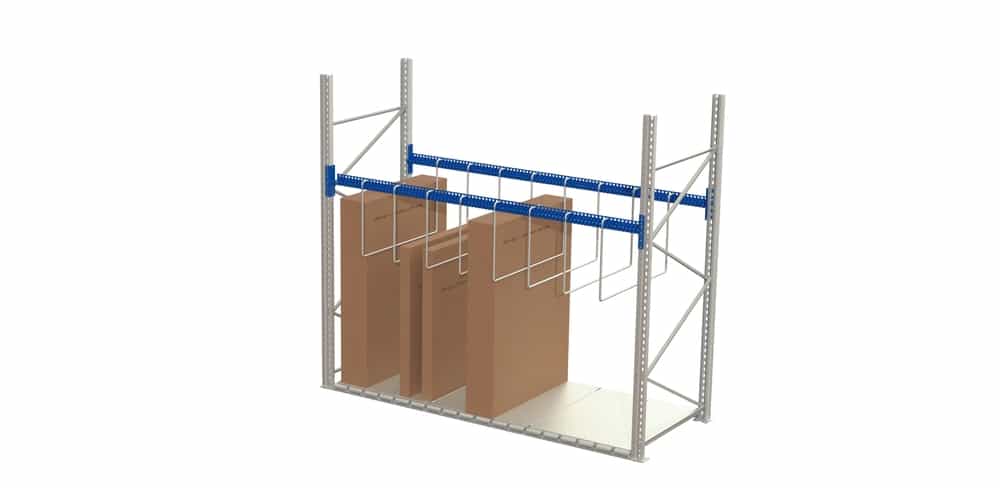

Smart Storing’s loop storage racks come with dividers made of bent tube that are hooked into two perforated steel beams, placed behind or above the material. The tubes are only 16 mm in diameter, probably is the thinnest on the market, which allow for the division of storage into very narrow sections. Dividers can easily be moved by hand in increments of 30 mm. The products receive stable support and are easily accessible.
Features
Click the buttons and read more about features
SMART DESIGN!
Multi-purpose, suits many
long goods
DIVIDER WITH
INTEGRATED SIGN makes
articles easy to find
Adjustable dividers in
a slim design keep the
material in place
EASY TO MOVE
DIVIDERS, no tools
needed!
Beams are perforated
with a dense hole
pattern for OPTIMAL
COMPARTEMENT SIZES
ROBUST PROFILES
under the cover plates to
support heavy loads

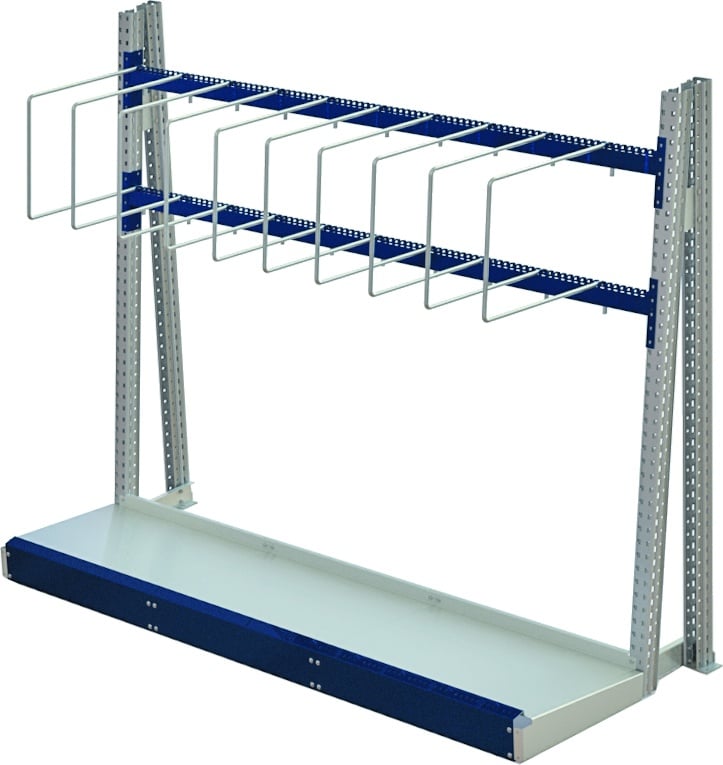

Lodur Premium, single-sided Start section
| ART. NO. | HEIGHT | WIDTH | DEPTH | DIVIDERS |
|---|---|---|---|---|
| ESG26094-BI | 2000 mm | 950 mm | 600 mm | 4 pcs |
| ESG26186-BI | 2000 mm | 1800 mm | 600 mm | 6 pcs |
| ESG262710-BI | 2000 mm | 2700 mm | 600 mm | 10 pcs |
| ART. NO. | HEIGHT | WIDTH | DEPTH | DIVIDERS |
|---|---|---|---|---|
| ESG46094-BI | 4000 mm | 950 mm | 600 mm | 4 pcs |
| ESG46186-BI | 4000 mm | 1800 mm | 600 mm | 6 pcs |
| ESG462710-BI | 4000 mm | 2700 mm | 600 mm | 10 pcs |
Add-on section
| ART. NO. | HEIGHT | WIDTH | DEPTH | DIVIDERS |
|---|---|---|---|---|
| ESF26094-BI | 2000 mm | 950 mm | 600 mm | 4 pcs |
| ESF26186-BI | 2000 mm | 1800 mm | 600 mm | 6 pcs |
| ESF262710-BI | 2000 mm | 2700 mm | 600 mm | 10 pcs |
| ART. NO. | HEIGHT | WIDTH | DEPTH | DIVIDERS |
|---|---|---|---|---|
| ESF46094-BI | 4000 mm | 950 mm | 600 mm | 4 pcs |
| ESF46186-BI | 4000 mm | 1800 mm | 600 mm | 6 pcs |
| ESF462710-BI | 4000 mm | 2700 mm | 600 mm | 10 pcs |

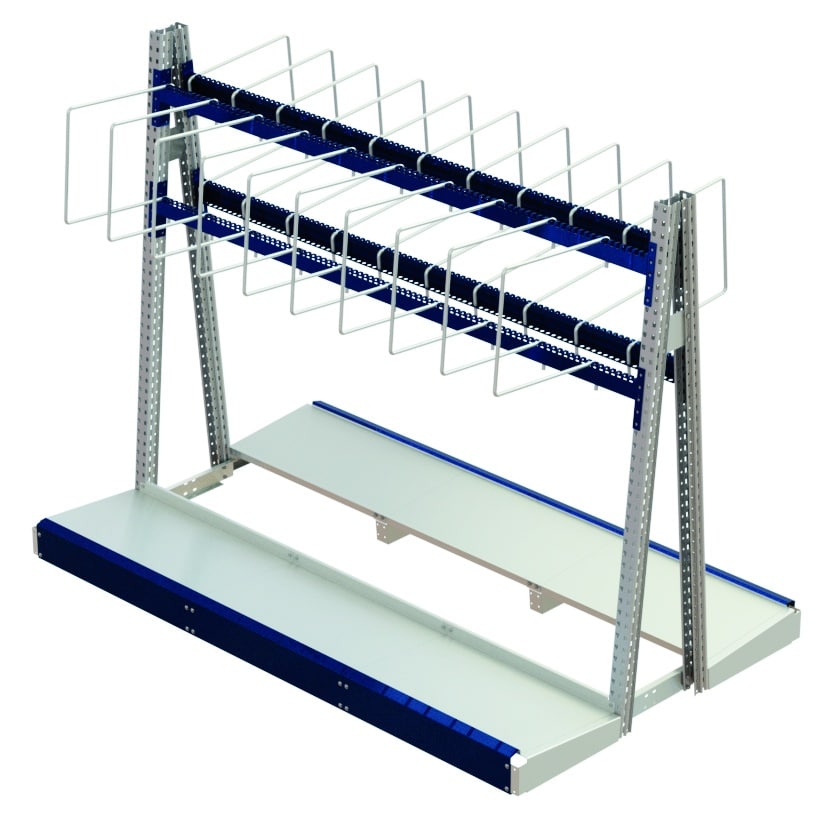

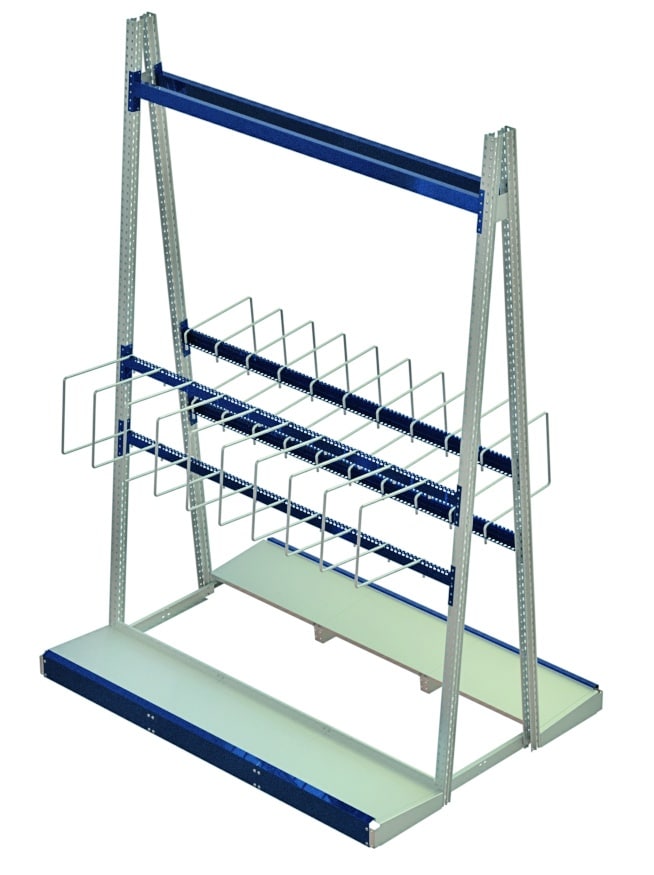

Lodur Premium, double-sided Start section
| ART. NO. | HEIGHT | WIDTH | DEPTH | DIVIDERS |
|---|---|---|---|---|
| DSG260908-BI | 2000 mm | 950 mm | 600 mm | 8 pcs |
| DSG261812-BI | 2000 mm | 1800 mm | 600 mm | 12 pcs |
| DSG262720-BI | 2000 mm | 2700 mm | 600 mm | 20 pcs |
| ART. NO. | HEIGHT | WIDTH | DEPTH | DIVIDERS |
|---|---|---|---|---|
| DSG460908-BI | 4000 mm | 950 mm | 600 mm | 8 pcs |
| DSG461812-BI | 4000 mm | 1800 mm | 600 mm | 12 pcs |
| DSG462720-BI | 4000 mm | 2700 mm | 600 mm | 20 pcs |

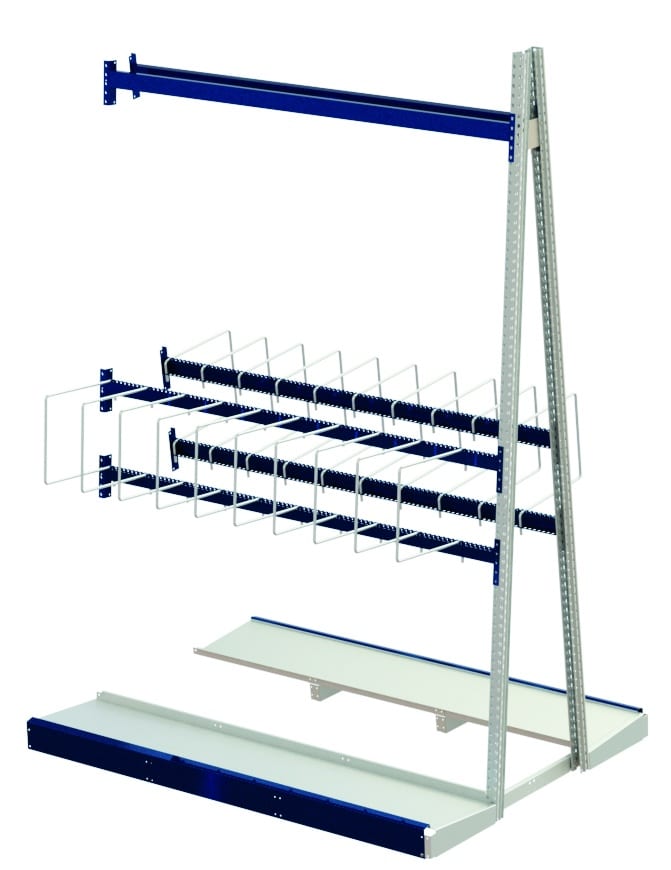

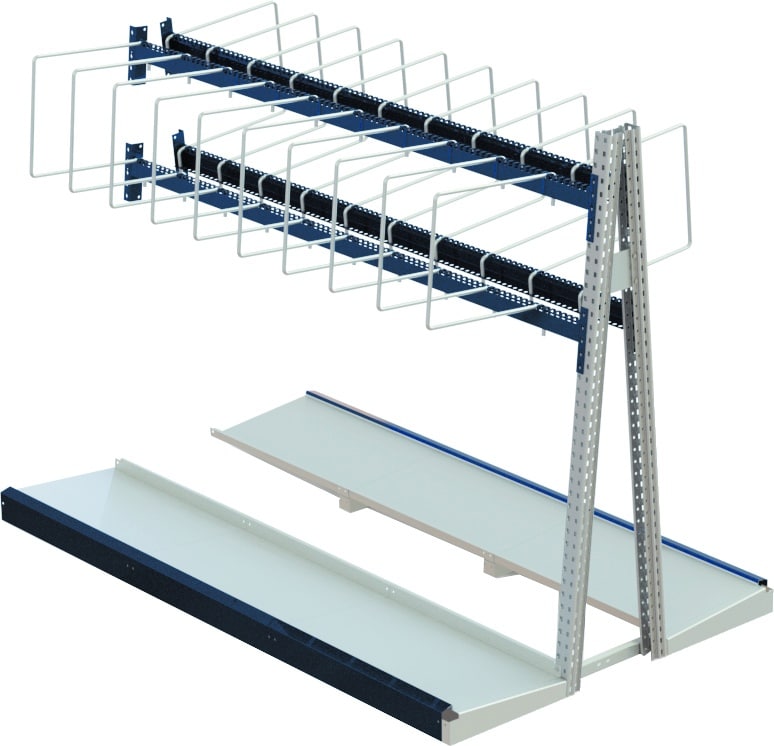

Add-on section
| ART. NO. | HEIGHT | WIDTH | DEPTH | DIVIDERS |
|---|---|---|---|---|
| DSF260908-BI | 2000 mm | 950 mm | 600 mm | 8 pcs |
| DSF261812-BI | 2000 mm | 1800 mm | 600 mm | 12 pcs |
| DSF262720-BI | 2000 mm | 2700 mm | 600 mm | 20 pcs |
| ART. NO. | HEIGHT | WIDTH | DEPTH | DIVIDERS |
|---|---|---|---|---|
| DSF460908-BI | 4000 mm | 950 mm | 600 mm | 8 pcs |
| DSF461812-BI | 4000 mm | 1800 mm | 600 mm | 12 pcs |
| DSF462720-BI | 4000 mm | 2700 mm | 600 mm | 20 pcs |

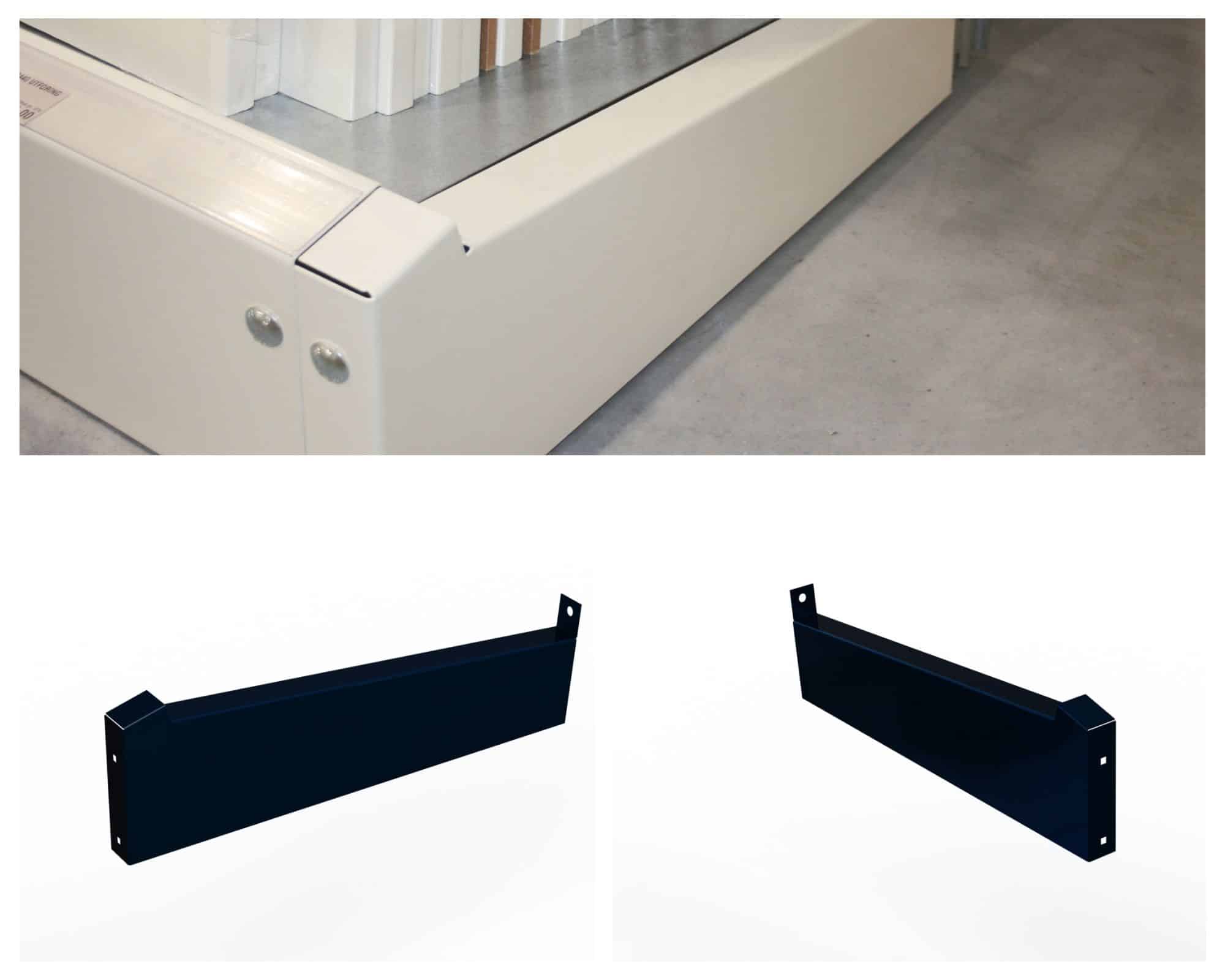

Lodur premium end plates
Lodur end plates cover the open space between bottom plate and floor and connects to the front kick plate. They provide a neat look and are powder coated in the same colour as the front kick plates. One left and one right plate per each row. Note that double sided racks need two of each type.
| ART. NO. | SPECIFICATION |
|---|---|
| EP600V1 | End plate, left side |
| EP600H1 | End plate, right side |
Lodur Standard, single-sided Start section
| ART. NO. | HEIGHT | WIDTH | DEPTH | DIVIDERS |
|---|---|---|---|---|
| BESG26094-BI | 2000 mm | 950 mm | 600 mm | 4 pcs |
| BESG26186-BI | 2000 mm | 1800 mm | 600 mm | 6 pcs |
| BESG262710-BI | 2000 mm | 2700 mm | 600 mm | 10 pcs |
| ART. NO. | HEIGHT | WIDTH | DEPTH | DIVIDERS |
|---|---|---|---|---|
| BESG46094-BI | 4000 mm | 950 mm | 600 mm | 4 pcs |
| BESG46186-BI | 4000 mm | 1800 mm | 600 mm | 6 pcs |
| BESG462710-BI | 4000 mm | 2700 mm | 600 mm | 10 pcs |

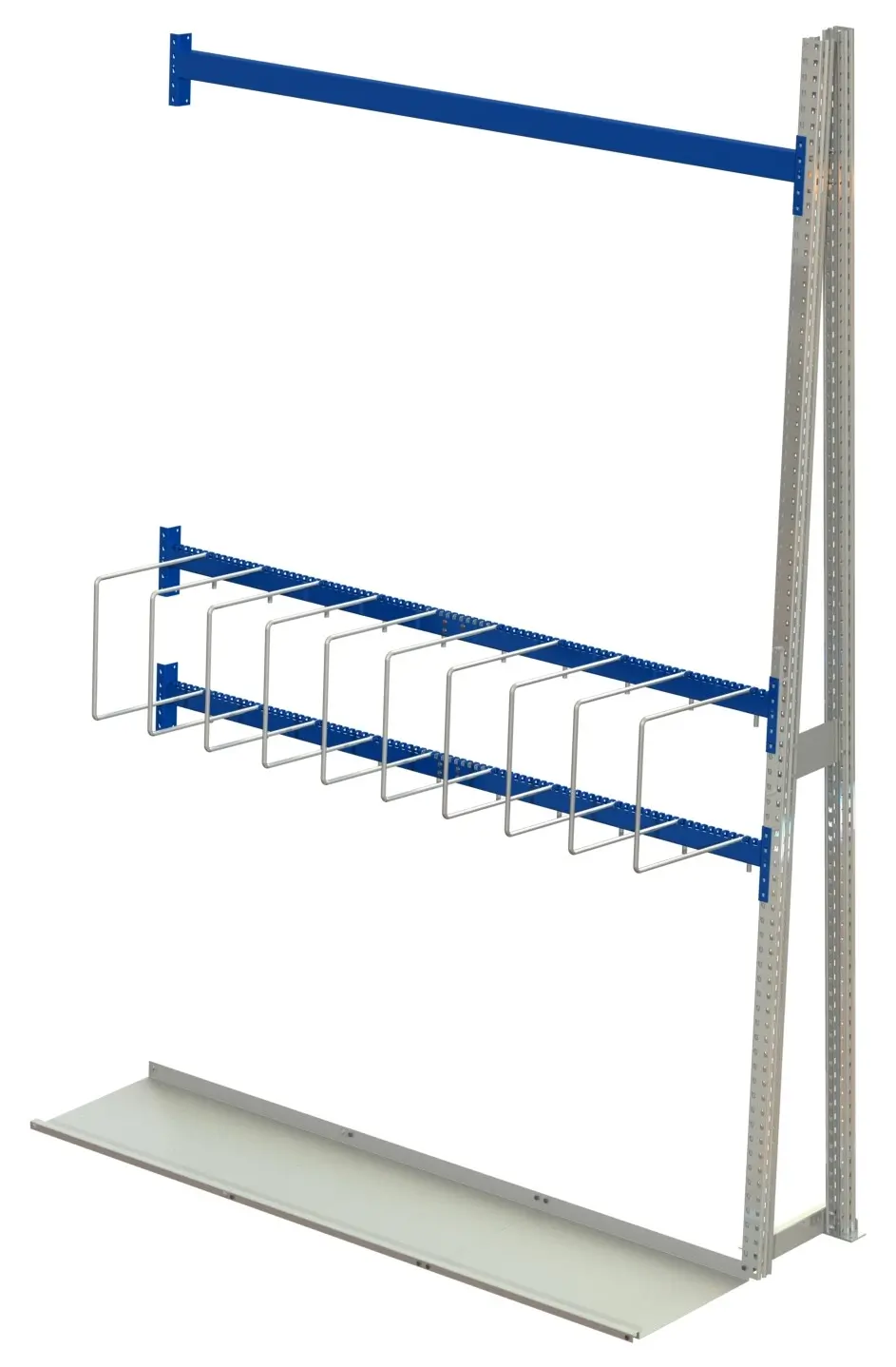

Add-on section
| ART. NO. | HEIGHT | WIDTH | DEPTH | DIVIDERS |
|---|---|---|---|---|
| BESF26094-BI | 2000 mm | 950 mm | 600 mm | 4 pcs |
| BESF26186-BI | 2000 mm | 1800 mm | 600 mm | 6 pcs |
| BESG262710-BI | 2000 mm | 2700 mm | 600 mm | 10 pcs |
| ART. NO. | HEIGHT | WIDTH | DEPTH | DIVIDERS |
|---|---|---|---|---|
| BESG46094-BI | 4000 mm | 950 mm | 600 mm | 4 pcs |
| BESG46186-BI | 4000 mm | 1800 mm | 600 mm | 6 pcs |
| BESG462710-BI | 4000 mm | 2700 mm | 600 mm | 10 pcs |

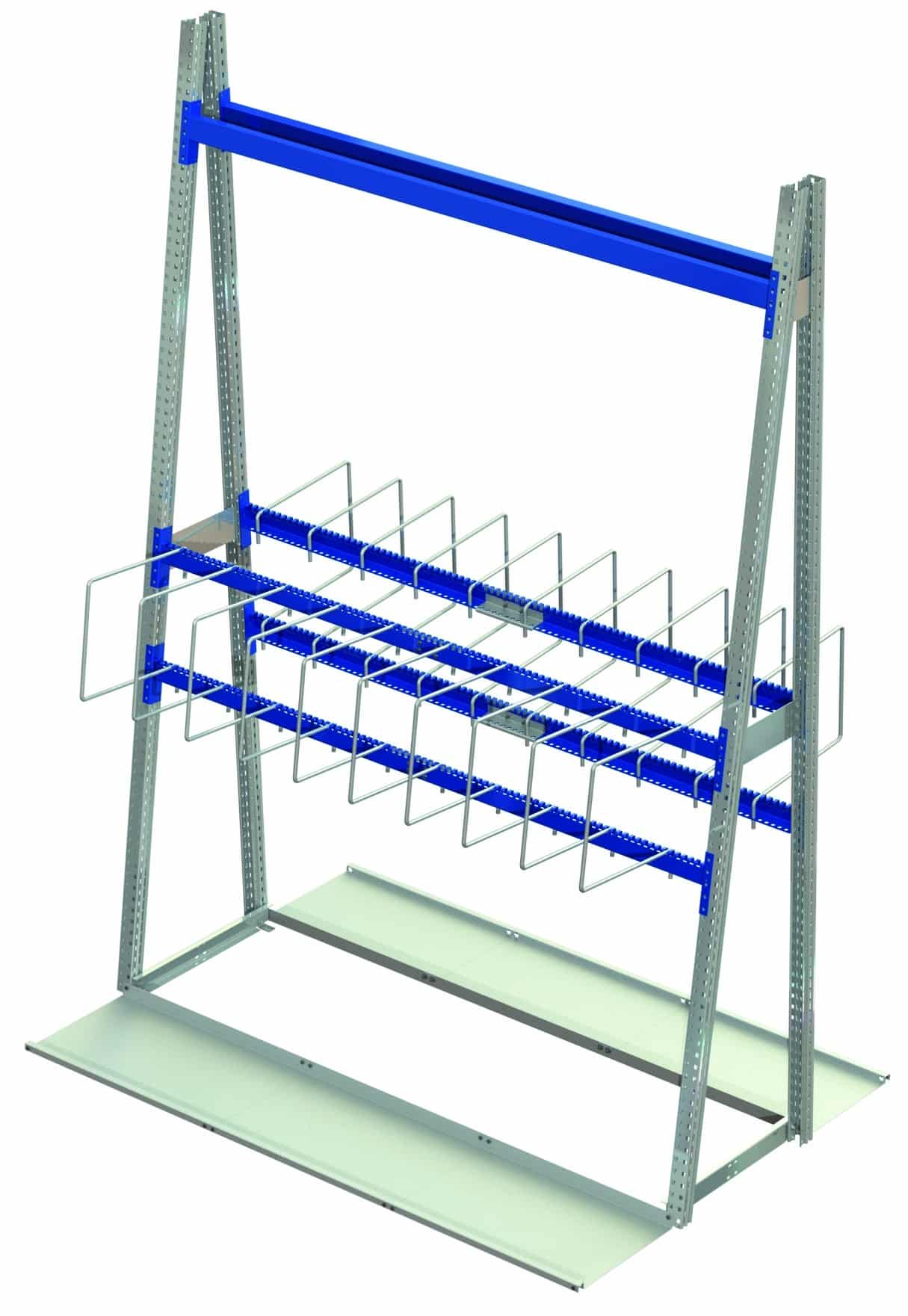

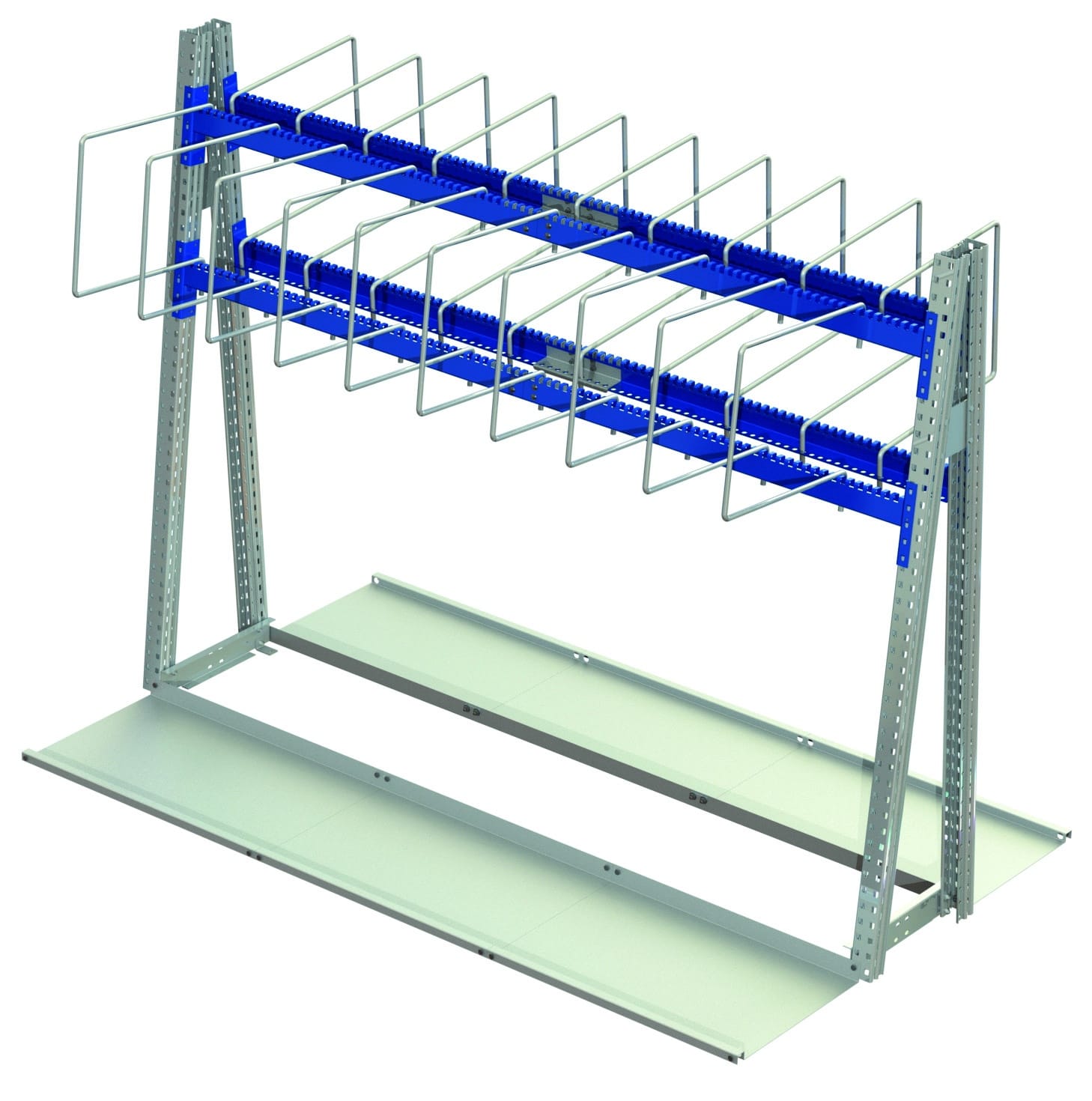

Lodur Standard, double-sided Start section
| ART. NO. | HEIGHT | WIDTH | DEPTH | DIVIDERS |
|---|---|---|---|---|
| BDSG260908-BI | 2000 mm | 950 mm | 600 mm | 8 pcs |
| BDSG261812-BI | 2000 mm | 1800 mm | 600 mm | 12 pcs |
| BDSG262720-BI | 2000 mm | 2700 mm | 600 mm | 20 pcs |
| ART. NO. | HEIGHT | WIDTH | DEPTH | DIVIDERS |
|---|---|---|---|---|
| BDSG460908-BI | 4000 mm | 950 mm | 600 mm | 8 pcs |
| BDSG461812-BI | 4000 mm | 1800 mm | 600 mm | 12 pcs |
| BDSG462720-BI | 4000 mm | 2700 mm | 600 mm | 20 pcs |

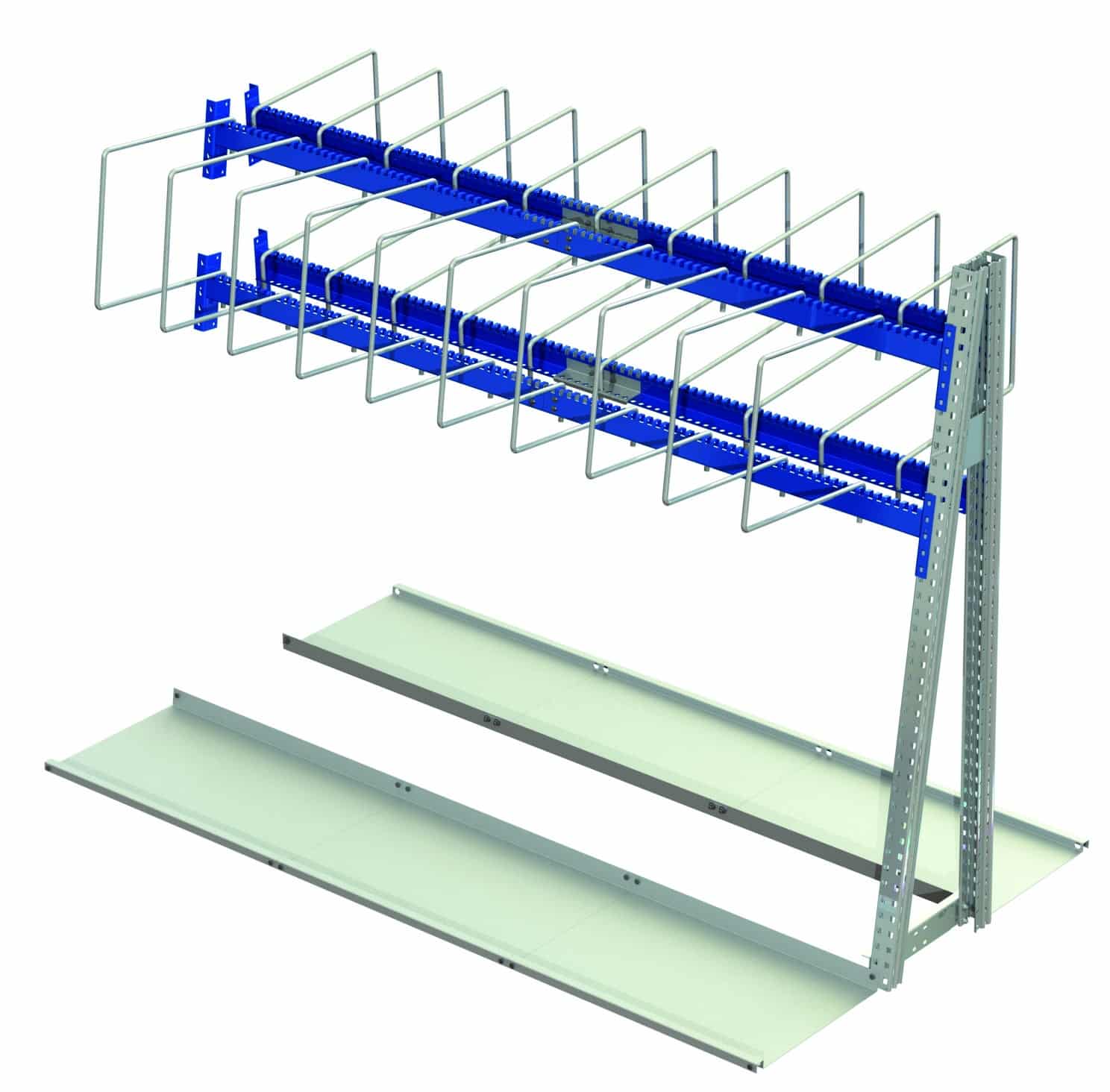

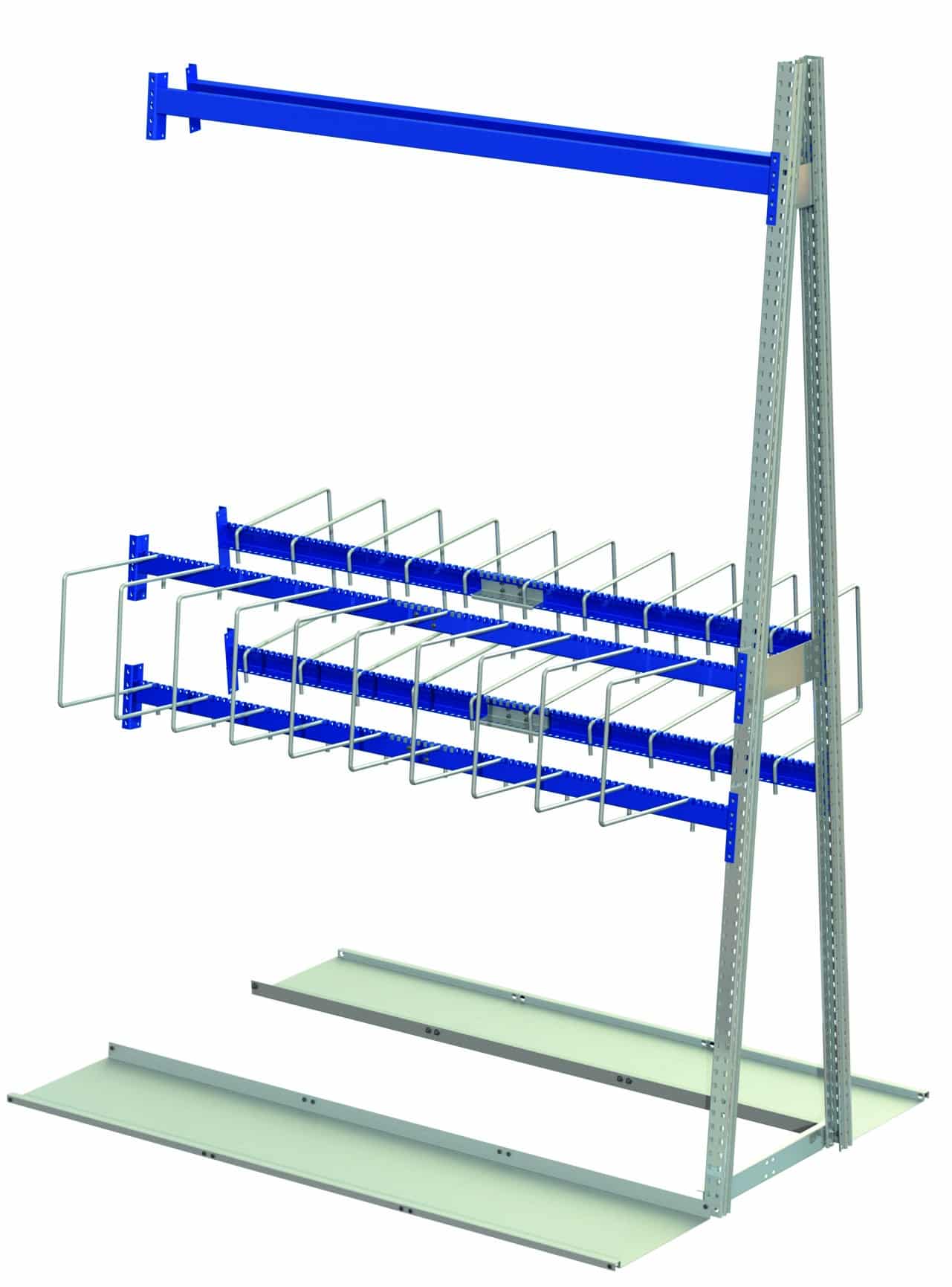

Add-on section
| ART. NO. | HEIGHT | WIDTH | DEPTH | DIVIDERS |
|---|---|---|---|---|
| BDSF260908-BI | 2000 mm | 950 mm | 600 mm | 8 pcs |
| BDSF261812-BI | 2000 mm | 1800 mm | 600 mm | 12 pcs |
| BDSF262720-BI | 2000 mm | 2700 mm | 600 mm | 20 pcs |
| ART. NO. | HEIGHT | WIDTH | DEPTH | DIVIDERS |
|---|---|---|---|---|
| BDSF460908-BI | 4000 mm | 950 mm | 600 mm | 8 pcs |
| BDSF461812-BI | 4000 mm | 1800 mm | 600 mm | 12 pcs |
| BDSF462720-BI | 4000 mm | 2700 mm | 600 mm | 20 pcs |

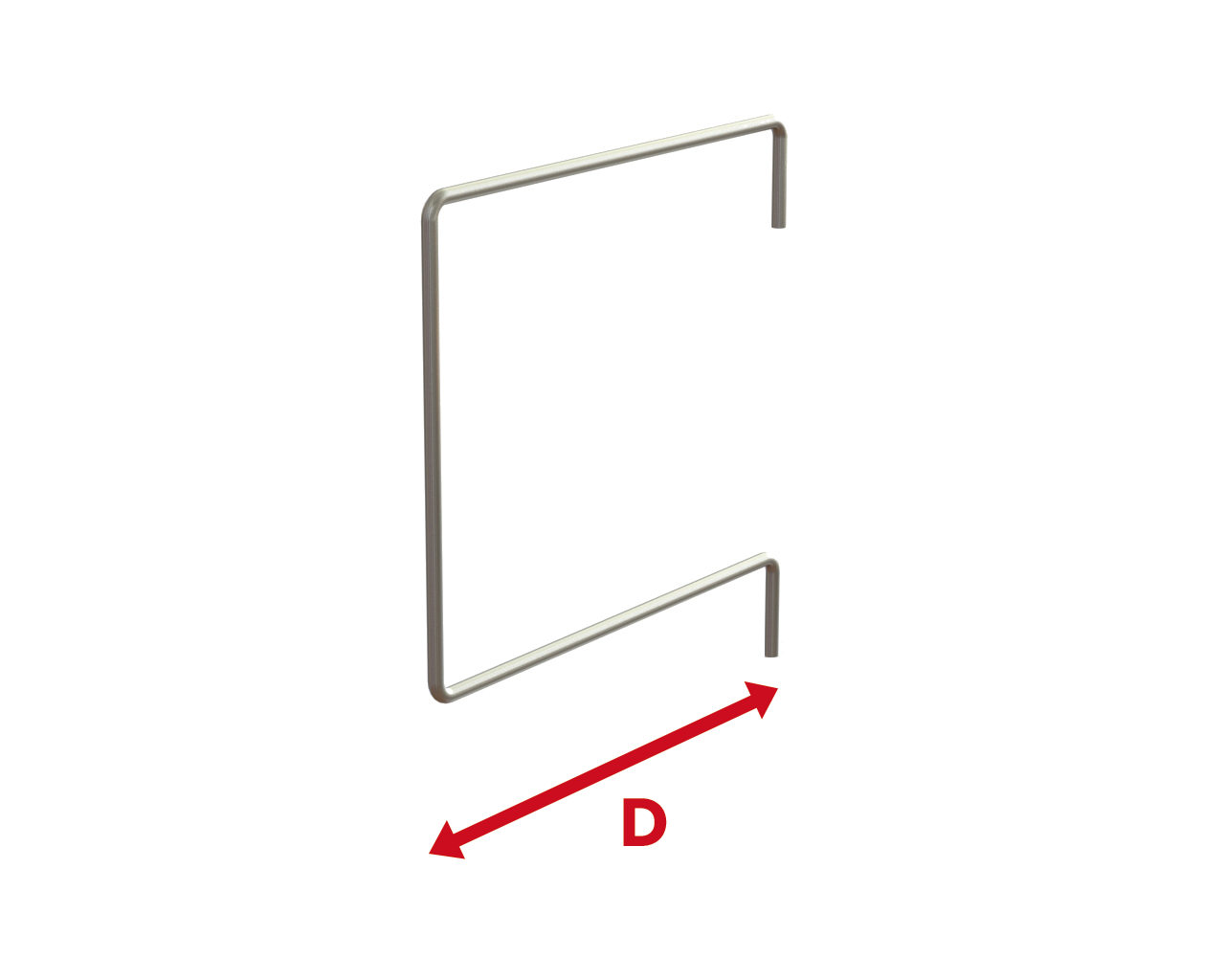

Dividers
Smart Storing’s loop storage racks has vertical dividers that are only 16 mm in diameter, probably is the thinnest on the market, which allow for the division of storage into very narrow sections. This means that you can store more stuff in less space!
| ART. NO. | SPECIFICATION |
|---|---|
| AVD-5-600 | Depth 600 mm for Lodur |
| AVD-5-800 |
|
| AVD-5-1100 |
|

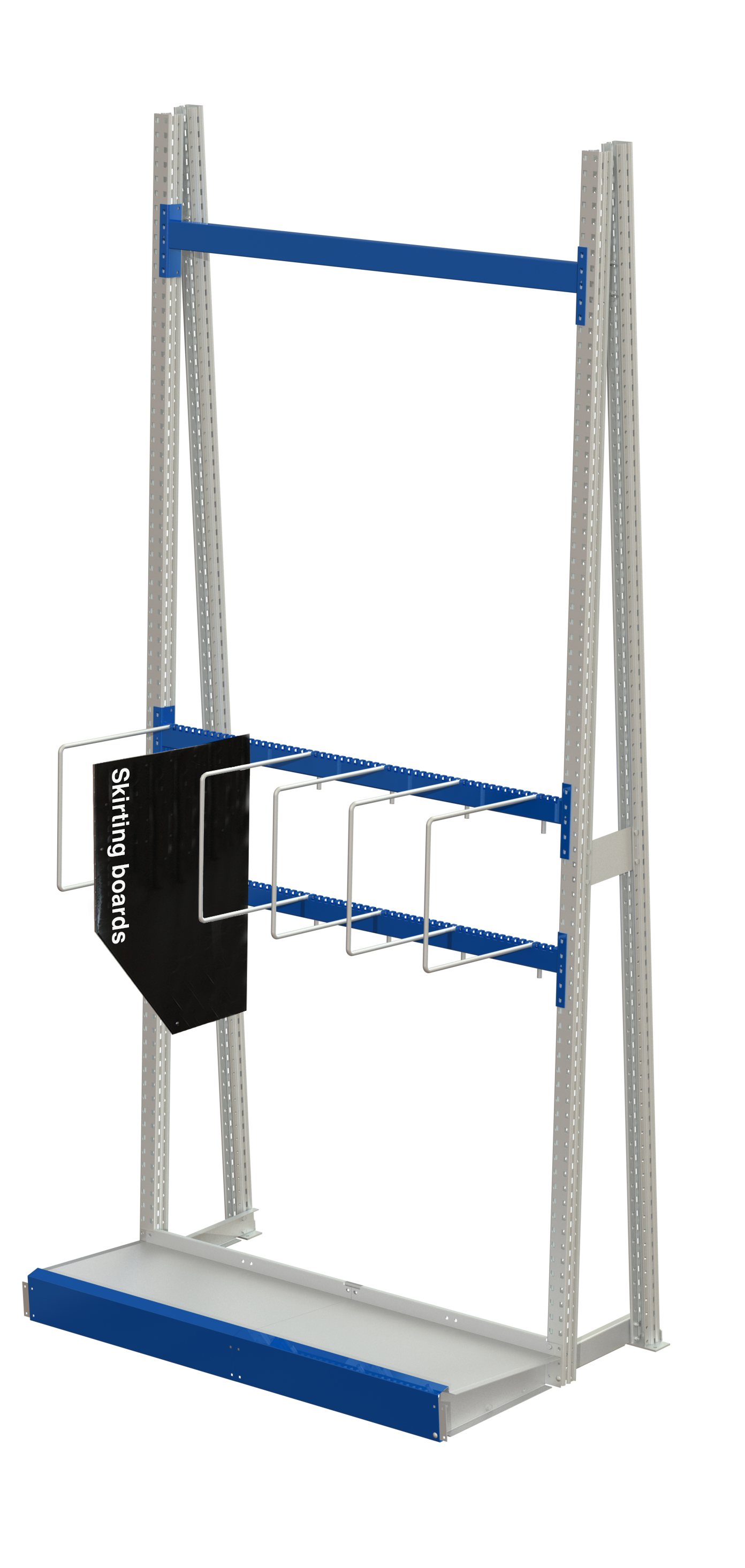

Divider with Integraded sign
With practical signs in heavy sheet metal and in stylish design, which is easily mounted on the dividers it is easy to find different range areas.
| ART. NO. | SPECIFICATION |
|---|---|
|
|

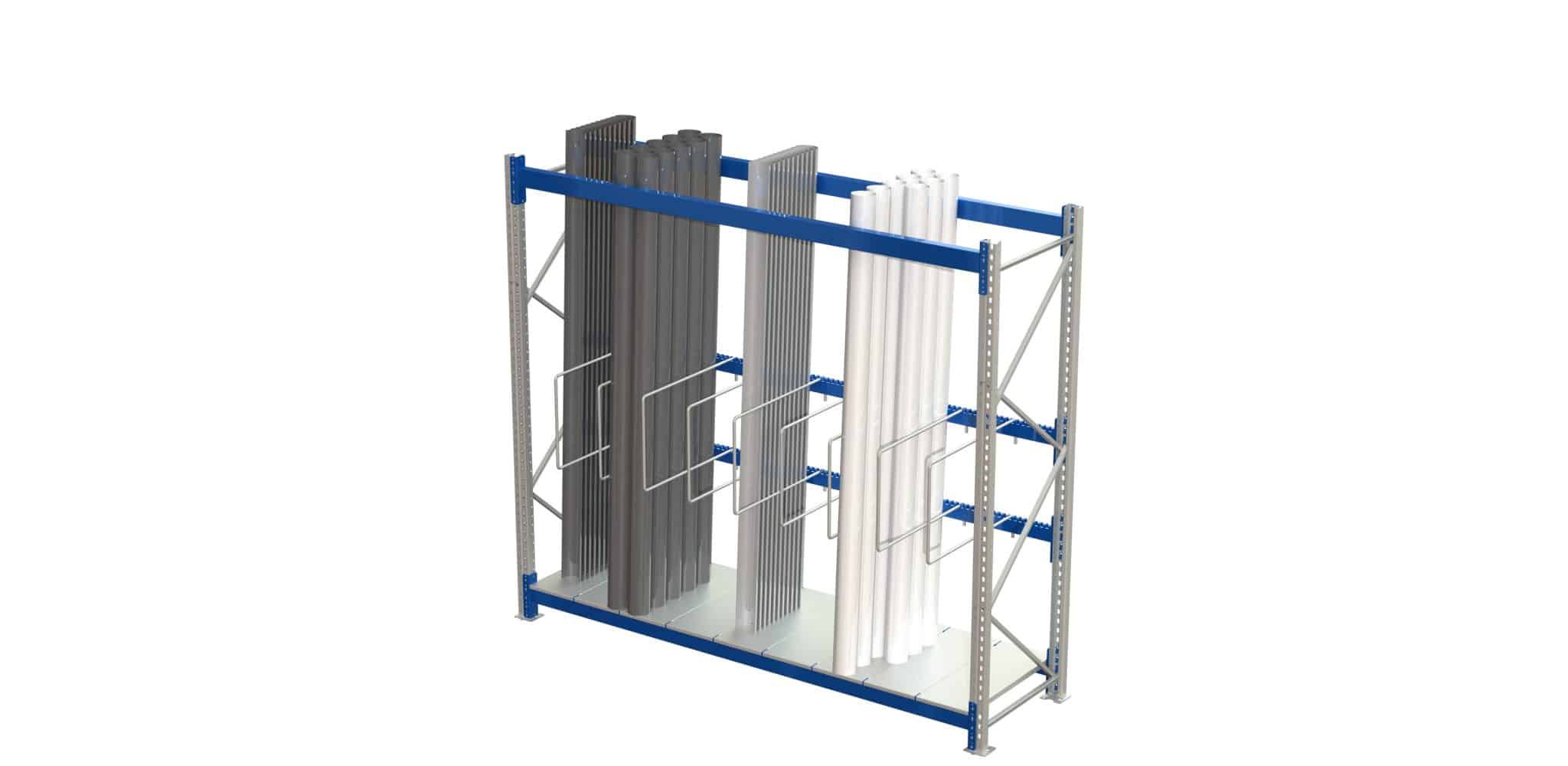

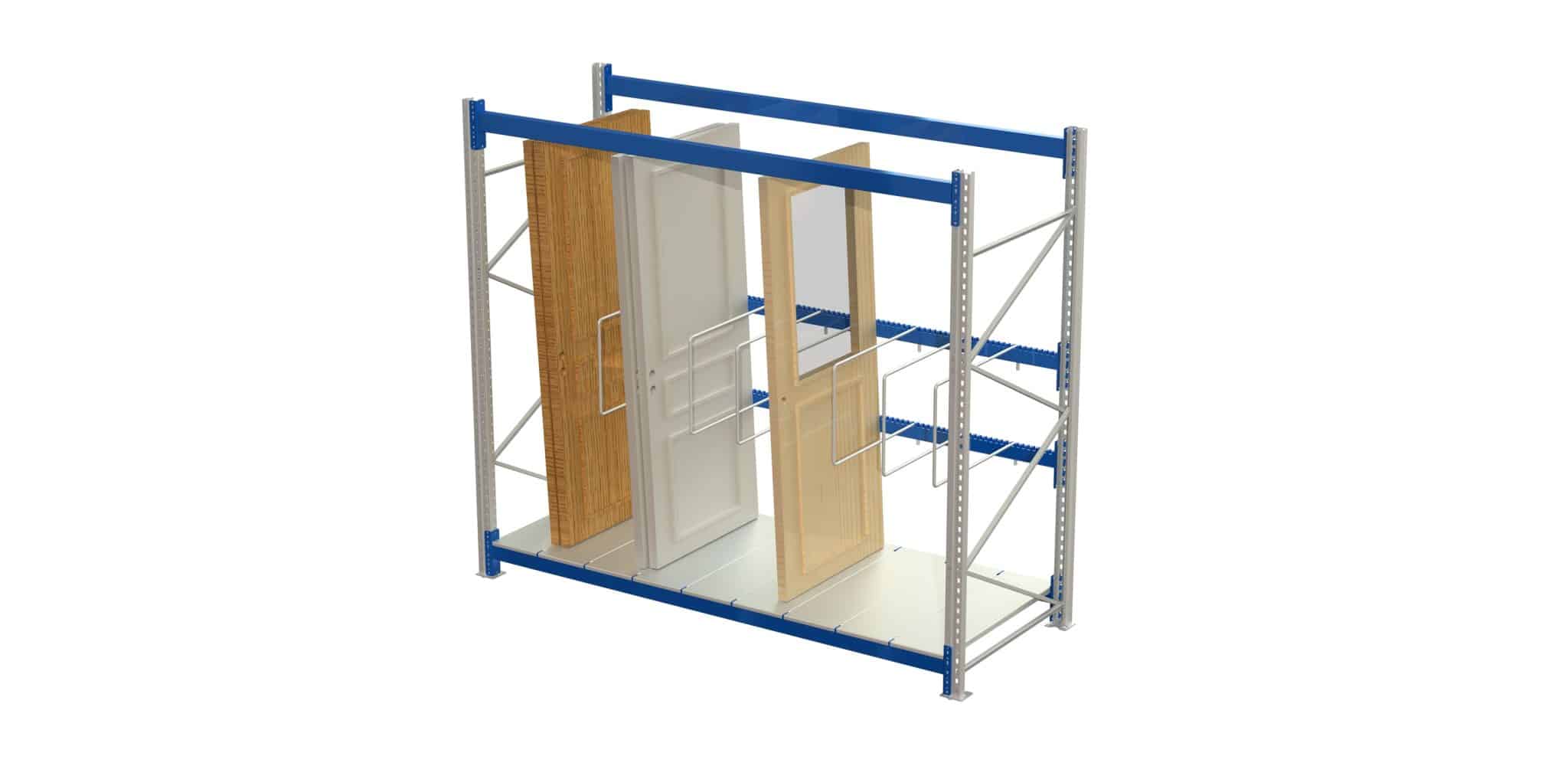

VERTICAL STORAGE IN STANDARD RACK
By adding a bottom level with beams with steel panels, you can place the products in a better height and at the same time gain extra storage space underneath
We have developed a number of smart solutions for vertically stored goods. Dividers are available in an array of different depths, and beams can be placed behind or over the goods.
See the next page for a few of our standard solutions!
Beams are powder-coated blue RAL 5010, and the rest is galvanized. The standard section width is 2700 mm, but upon request, we can provide widths of 1800 mm or 950 mm as well.

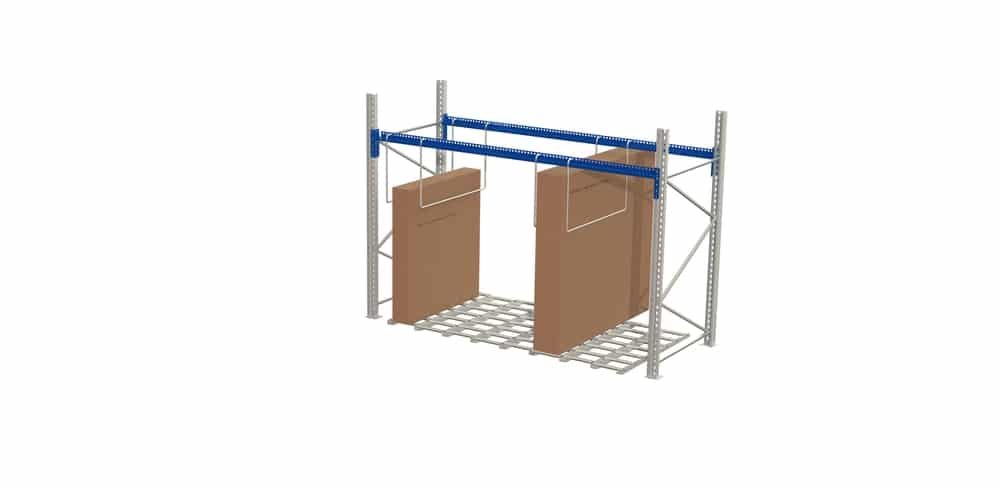

Loke
Standard rack with rear-mounted perforated beams and dividers. Complete solution with bottom beams and steel shelf panels. Section width 2700 mm. Dividers are 500 mm high and 800 mm deep.
| ART. NO. | SPECIFICATION |
|---|---|
| 61 25112701 | Start section with 20 dividers |
| 61 25112702 | Add-on section with 20 dividers |
Sigyn
Standard rack with top-mounted perforated beams and dividers
that provides access from both sides of the rack. Complete solution with bottom beams and wire mesh shelf. Section width 2700 mm. Dividers are 800 mm high and 1100 mm deep.
| ART. NO. | SPECIFICATION |
|---|---|
| 61 25112705 | Start section with 10 dividers |
| 61 25112706 | Add-on section with 10 dividers |
| AVD-8-1100A | Extra divider |

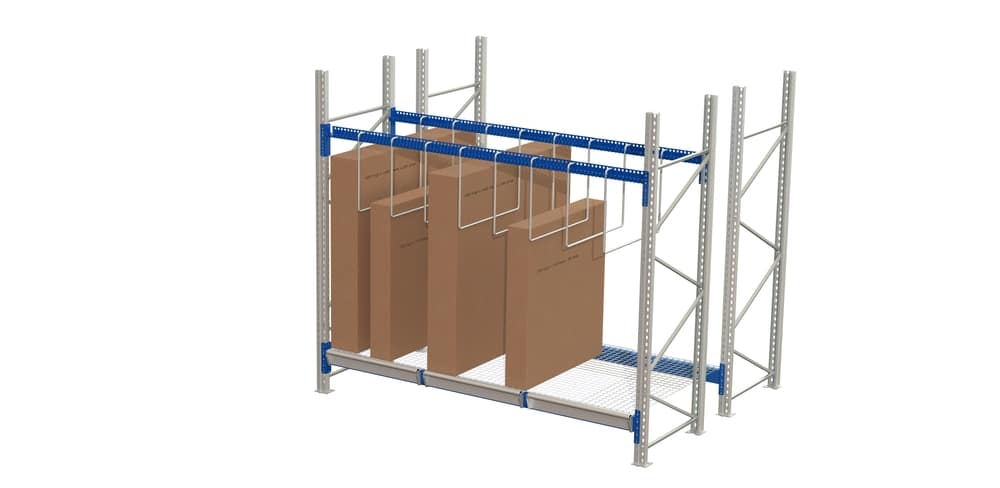

Nari
Standard rack with top-mounted perforated beams and dividers that provides access from both sides of the rack. Complete solution with bottom beams and steel shelf panel. Front-mounted rollers ease the process of loading and unloading. Section width 2700 mm. Dividers are 800 mm high and 1100 mm deep.
| ART. NO. | SPECIFICATION |
|---|---|
| 61 25112703 | Start section with 10 dividers |
| 61 25112704 | Add-on section with 10 dividers |
| AVD-8-1100A | Extra divider |

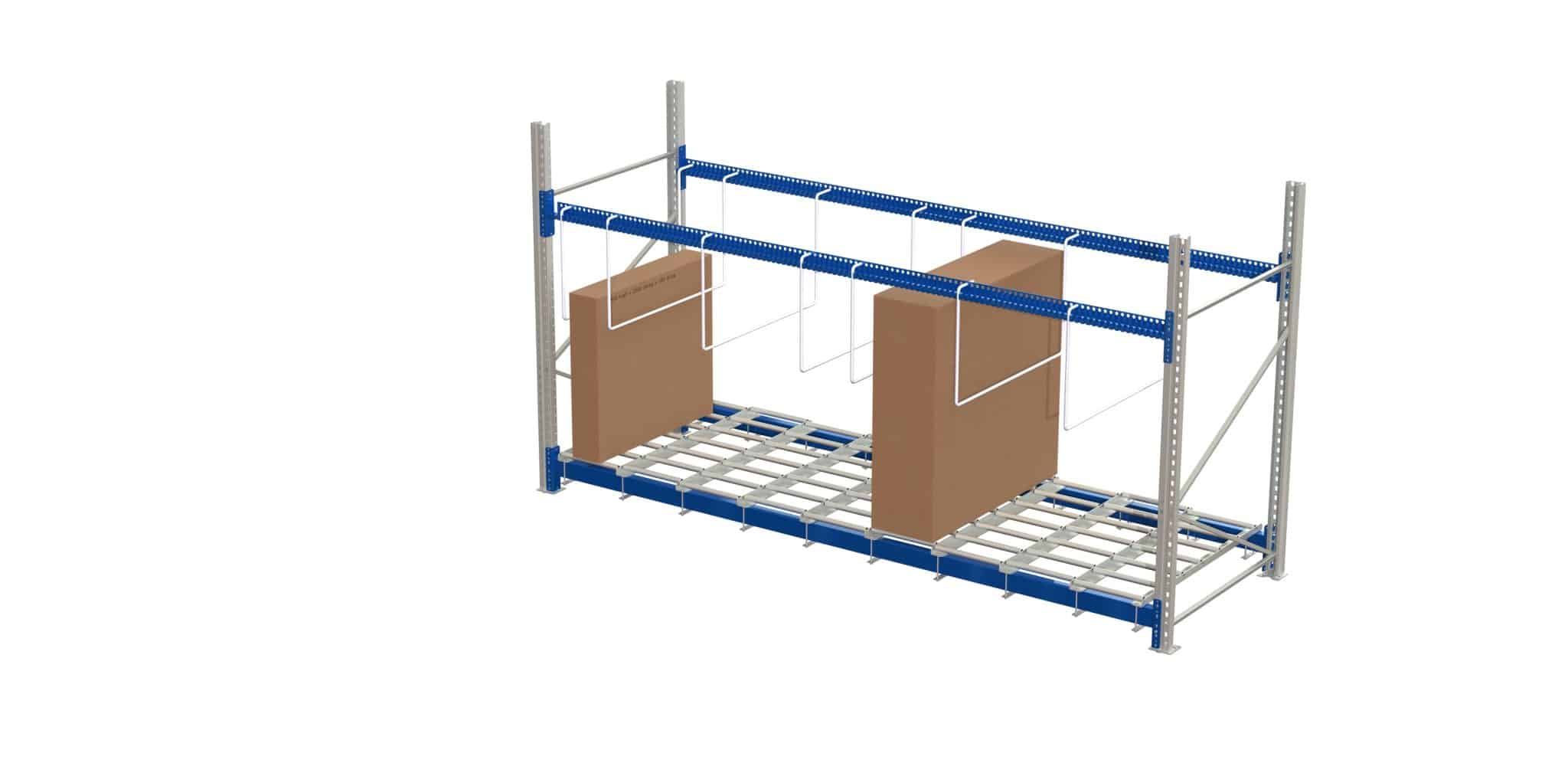

Vale
Standard rack with top-mounted perforated beams and dividers that provides access from both sides of the rack. Complete solution with a beam-mounted roller bed that makes handling effortless. Section width 2700 mm. Dividers are 800 mm high and 1100 mm deep.
| ART. NO. | SPECIFICATION |
|---|---|
| 61 25112707 | Start section with 10 pcs dividers |
| 61 25112708 | Add-on section with 10 dividers |
| AVD-8-1100A | Extra divider |
Narfe
Standard rack with top-mounted perforated beams and dividers that provides access from both sides of the rack. Complete solution with a floor-mounted roller bed that makes handling effortless. Section width 2700 mm. Dividers are 800 mm high and 1100 mm deep.
| ART. NO. | SPECIFICATION |
|---|---|
| 61 25112709 | Start section with 8 dividers |
| 61 25112710 | Add-on section with 8 dividers |
| AVD-8-1100A | Extra divider |
