Beam-mounted pull-out units
Our pull-out units are supplied ready assembled and fully tested.
Features
Click the buttons and read more about features
COMPATIBLE with nearly all pallet racks available on the market
UNITS WITH AN 'OPEN FRAME' are designed for Pallets
100% PULL-OUT CAPCITY
1-WAY UNIT
70% PULL-OUT CAPACITY
1-WAY UNIT

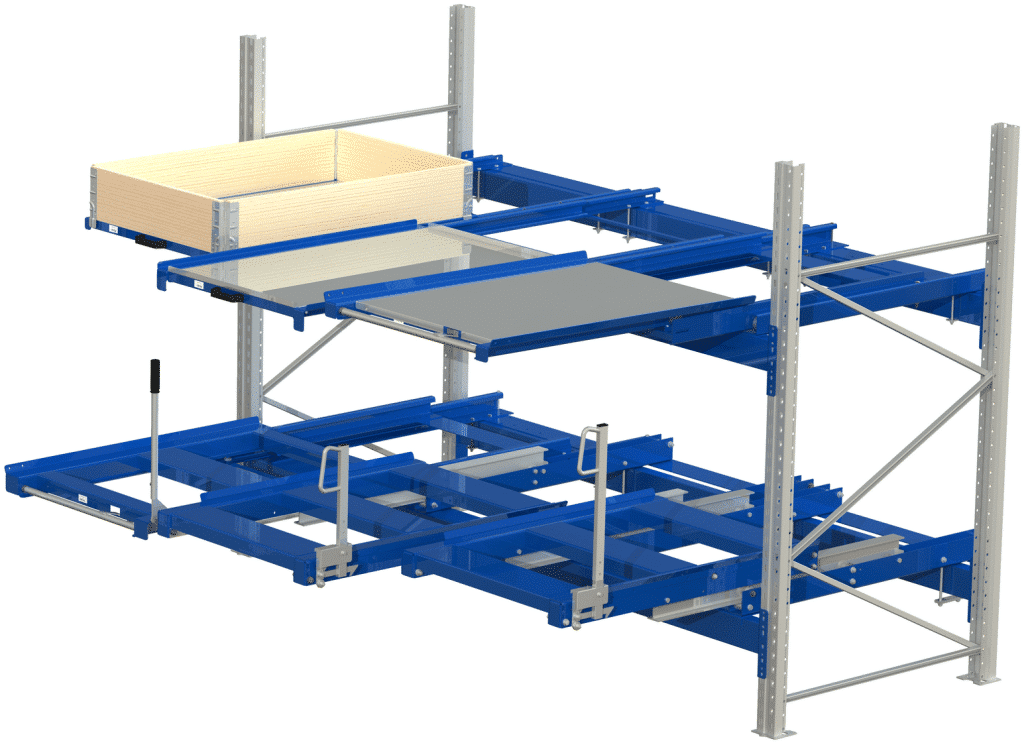

2-WAY UNIT UNITS WITH STEEL SHELF PANELS are well-suited for storing plastic bins, cardboard boxes, and loose objects
Use STANDARD pallet collars and turn your pull-out unit into a practical drawer
Our pull-out units are supplied ready
assembled and fully tested.

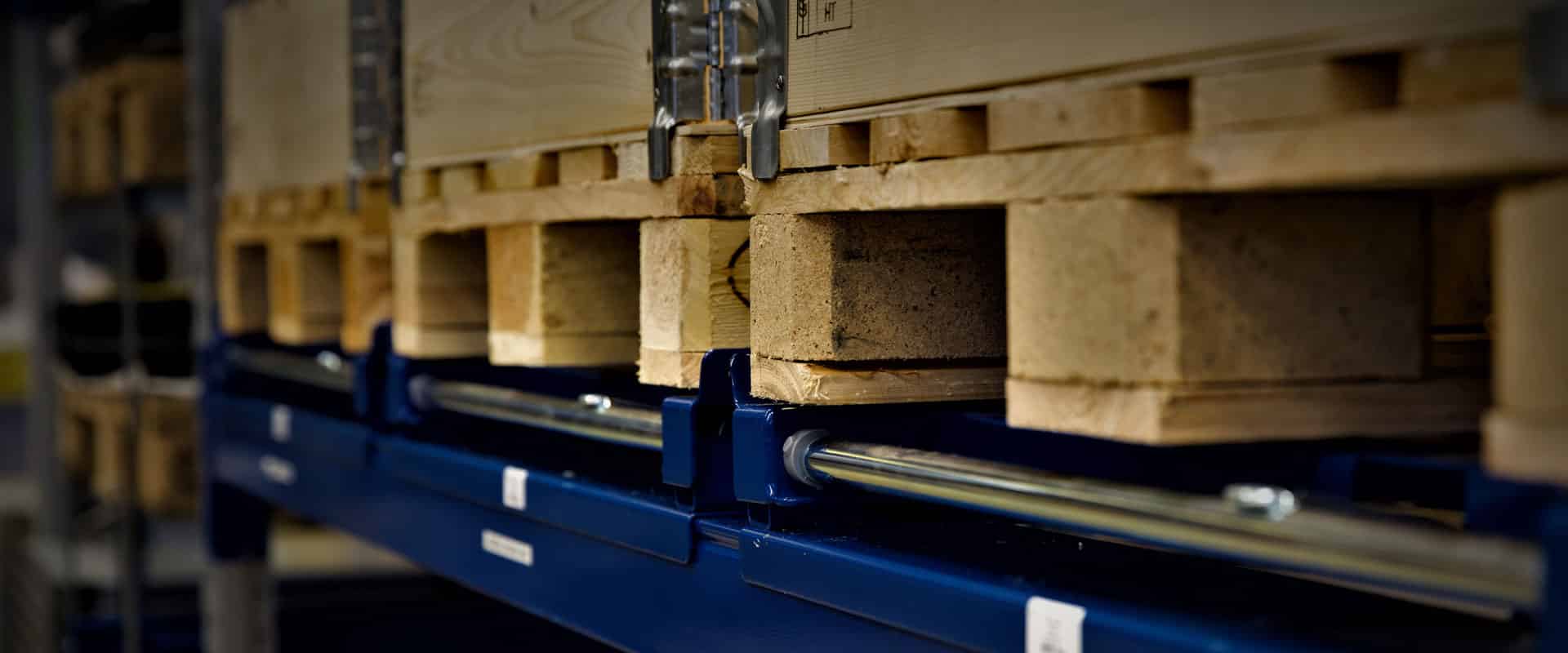

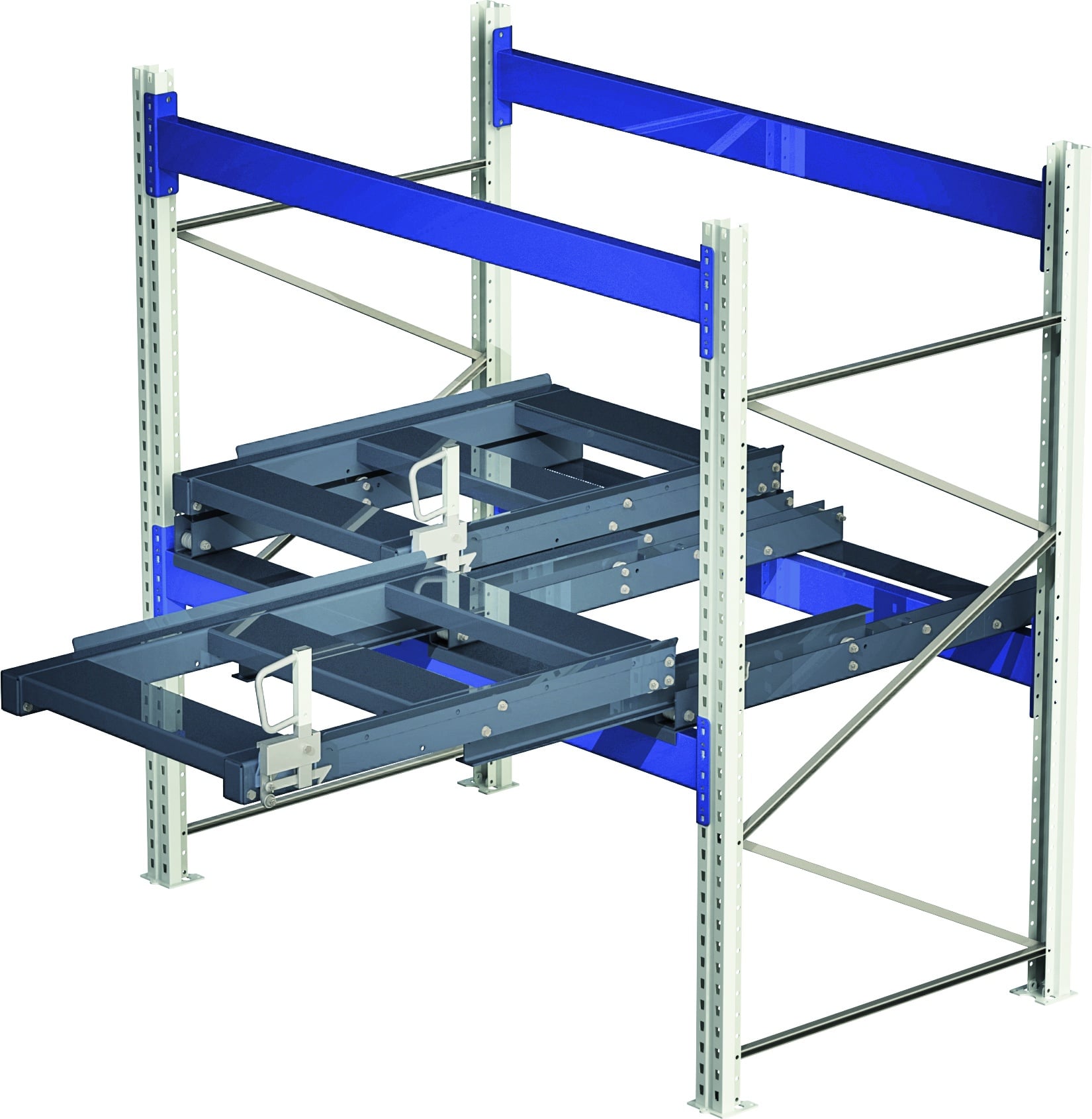

Beam-mounted pull-out units are installed on the beams within a pallet rack. The unit’s lower frame is securely attached to the rear load beam, while the upper frame runs on the lower frame with the help of ball bearings. Typically, pallets are handled on these units, but the addition of a steel shelf panel allows for the storage of smaller items like plastic bins or cardboard boxes directly on the unit.
Beam-mounted units are available in a range of capacities up to 1500kg and in a variety of formats to suit your requirements. They can cater for all pallet sizes and types (wood, steel, plastic), front or rear loading at the pallet rack, short or long-side handling, as well as for pallet collars with dividers, containers, bins and loose storage.
In addition to units for pallet handling, there are units for manually handled materials such as boxes and cartons.
Help choosing the right one
Load Capacity
Pallet size & orientation

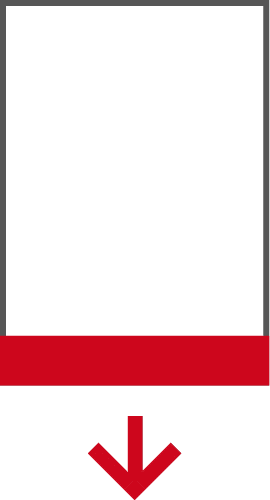

EUR
Short-side handled pallet 800 x 1200 mm (W x L)

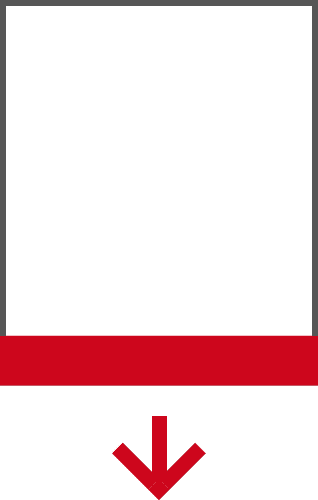

FIN
Short-side handled pallet 1000 x 1200 mm (W x L)

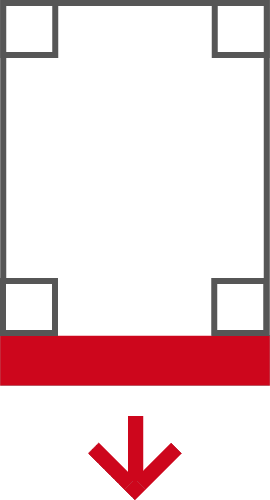

HMU
Short-side handled with reinforced corners securing a wire mesh container 800 x 1200 mm (W x D)

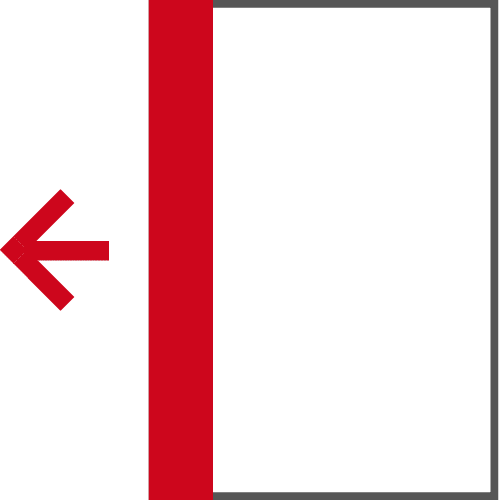

EUR-L
Long-side handled pall
1200 x 800 mm (W x L)

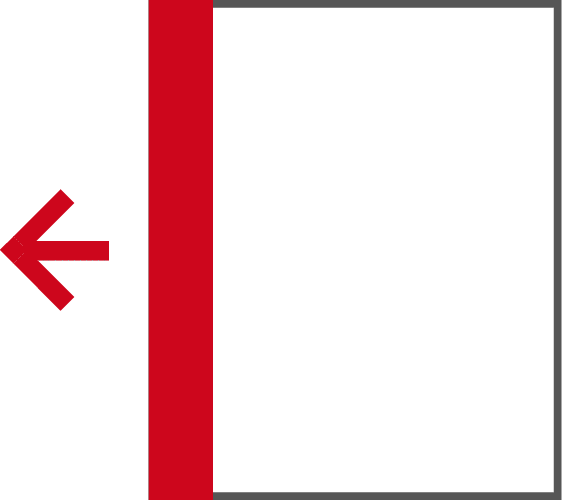

FIN-L
Long-side handled pall
1200 x 1000 mm (W x L)

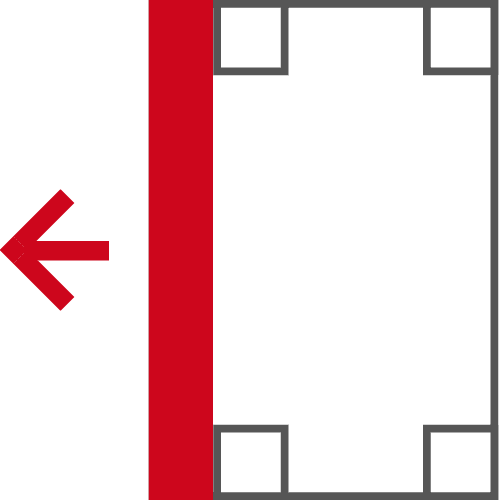

HMU-L
Long-side handled with reinforced corners securing a wire mesh container 1200 x 800 mm (W x D)
Loading
FRONT-LOADED
Loading and picking from the same side
REAR-LOADED
Loading from the back
Pull-out capacity
70% extension one-way
70% PULL-OUT CAPACITY
In most cases, a 70% extension is
adequate to access all goods.
100% extension one-way
100% PULL-OUT CAPACITY
100% extension offer full access to
small goods also when placed far back on a shelf or pallet. It’s also perfect when handling heavy goods with an overhead crane.

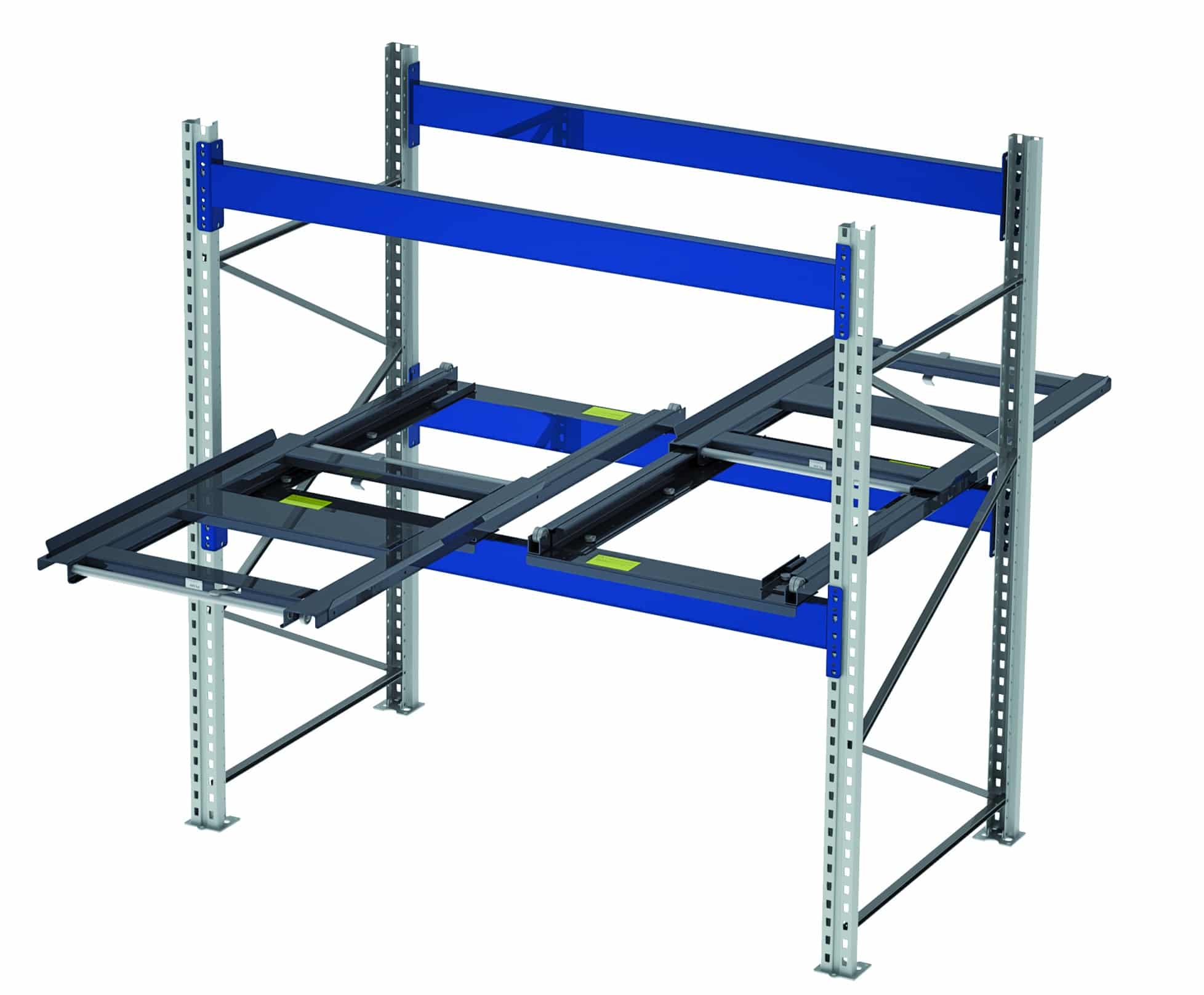

70% extension two-way
70% PULL-OUT CAPACITY
2-WAY UNIT
The unit can be pulled out in two
directions, allowing access from both sides of the pallet rack

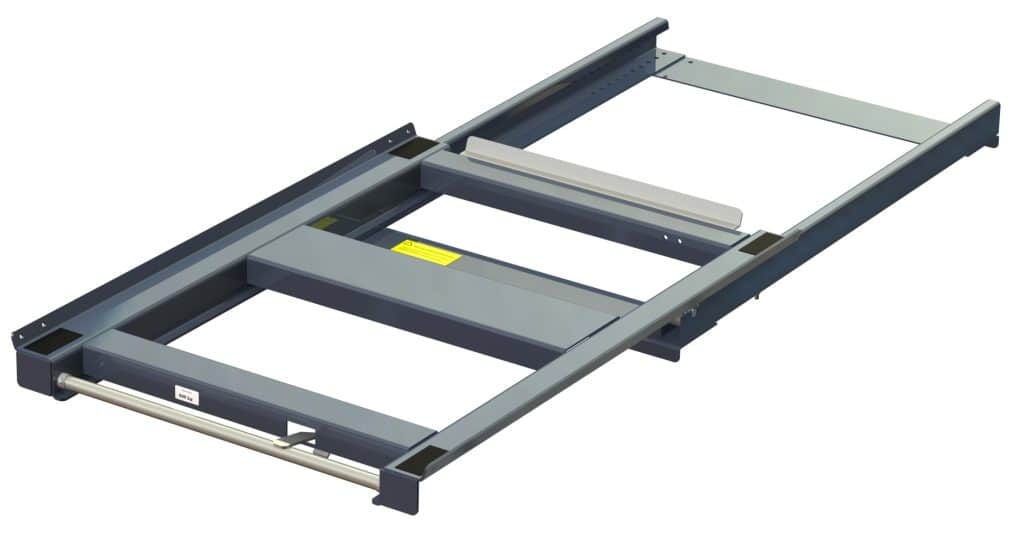

Beam-mounted pull-out unit with 70% pull-out capacity and 300 - 1500 kg load capacity
Beam-mounted 70% pull-out capacity
| Pallet Size | Loading | Orientation |
|---|---|---|
| EUR | Front Loaded | Short-side Handled |
| EUR | Rear-Loaded | Short-side Handled |
| EUR-L | Front Loaded | Long-side Handled |
| EUR-L | Rear-Loaded | Long-side Handled |
| FIN | Front Loaded | Short-side Handled |
| FIN | Rear-Loaded | Short-side Handled |
| FIN-L | Front Loaded | Long-side Handled |
| FIN-L | Rear-Loaded | Long-side Handled |
| HMU (wire mesh Container) | Front-Loaded | Short-side Handled |
| HMU (wire mesh Container) | Rear Loaded | Short-side Handled |
| HMU-L (wire mesh Container) | Front-Loaded | Long-side Handled |
| HMU-L (wire mesh Container) | Rear Loaded | Long-side Handled |
| EUR 1/2 Pallet | Front-Loaded | Front-side Handled |
| 300 kg | 600 kg | 800 kg | 1000 kg | 1200 kg | 1500 kg |
|---|---|---|---|---|---|
| 11 301-0 | 11 601-0 | 11 801-0 | 11 1001-0 | 11 1201-0 | 11 1501-0 |
| 11 302-0 | 11 602-0 | 11 802-0 | 11 1002-0 | 11 1202-0 | 11 1502-0 |
| – | 11 605-0 | 11 805-0 | 11 1005-0 | – | – |
| – | 11 606-0 | 11 806-0 | 11 1006-0 | – | – |
| – | 11 603-0 | 11 803-0 | 11 1003-0 | 11 1203-0 | 11 1503-0 |
| – | 11 604-0 | 11 804-0 | 11 1004-0 | 11 1204-0 | 11 1504-0 |
| – | 11 607-0 | 11 807-0 | 11 1007-0 | – | – |
| – | 11 608-0 | 11 808-0 | 11 1008-0 | – | – |
| – | – | 11 809-0 | 11 1009-0 | 11 1209-0 | 11 1509-0 |
| – | – | 11 810-0 | 11 1010-0 | 11 1210-0 | 11 1510-0 |
| – | – | 11 811-0 | 11 1011-0 | 11 1211-0 | 11 1511-0 |
| – | – | 11 812-0 | 11 1012-0 | 11 1212-0 | 11 1512-0 |
| – | 11 613-0 | – | – | – | – |
Â

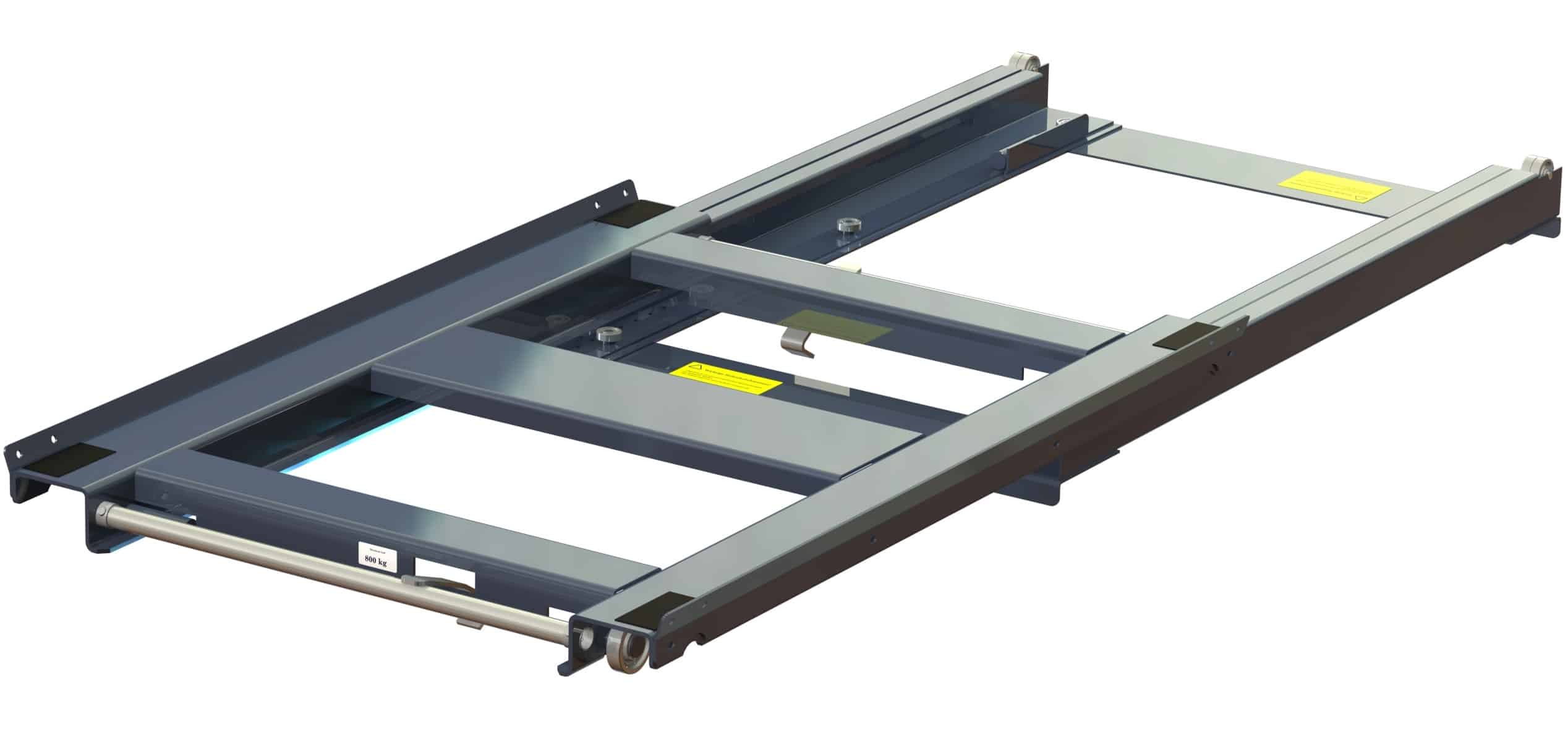

| 600 kg | 800 kg |
|---|---|
| 11 601-2 | 11 801-2 |
| – | – |
| – | – |
| – | – |
| 11 603-2 | 11 803-2 |
| – | – |
| – | – |
| – | – |
| – | 11 809-2 |
| – | – |
| – | – |
| – | – |
| – | – |

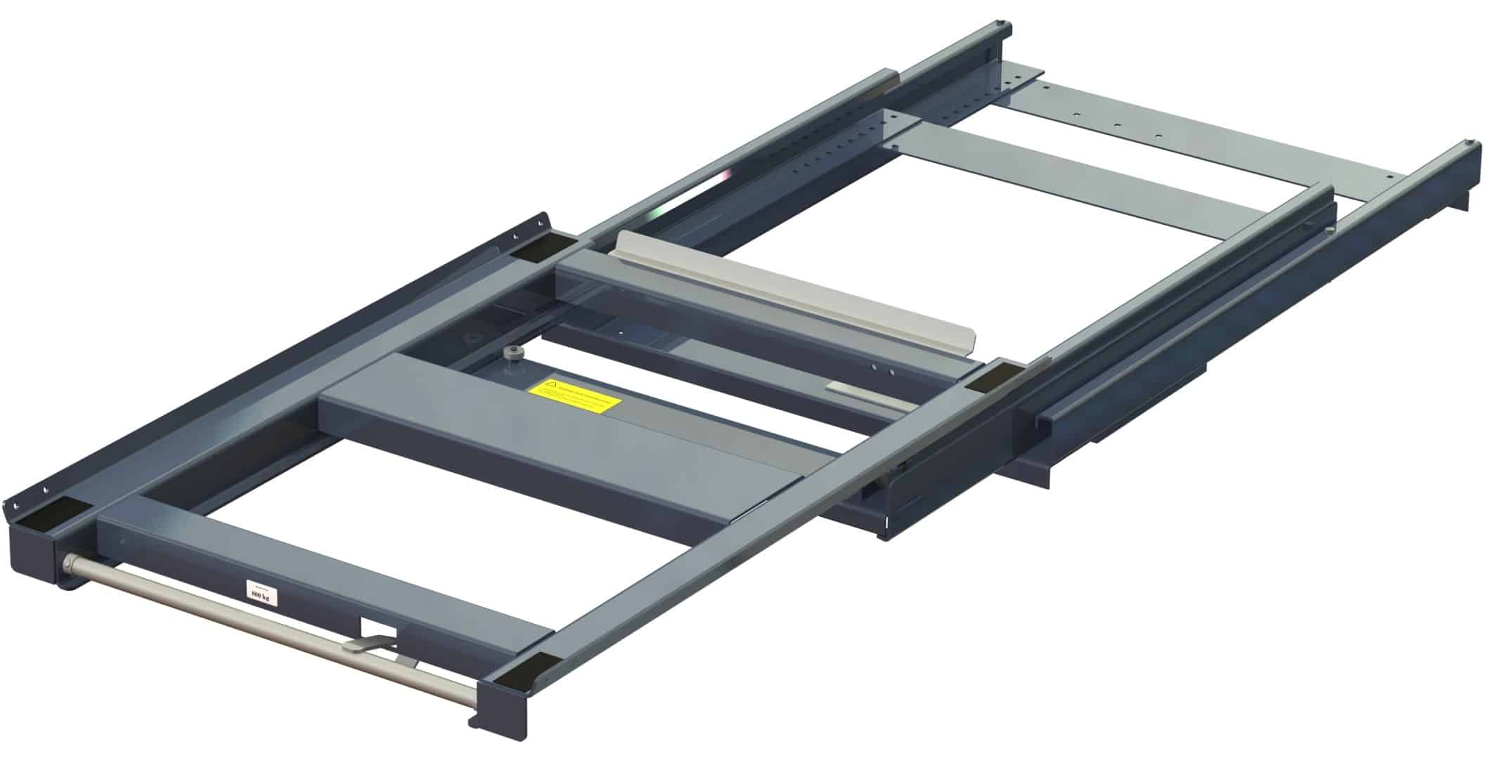

Beam-mounted pull-out unit with 100% pull-out capacity and 300 - 1000 kg load capacity
Beam-mounted 100% pull-out capacity
| Pallet Size | Loading | Orientation |
|---|---|---|
| EUR | Front Loaded | Short-side Handled |
| EUR | Rear-Loaded | Short-side Handled |
| EUR-L | Front Loaded | Long-side Handled |
| EUR-L | Rear-Loaded | Long-side Handled |
| FIN | Front Loaded | Short-side Handled |
| FIN | Rear-Loaded | Short-side Handled |
| FIN-L | Front Loaded | Long-side Handled |
| FIN-L | Rear-Loaded | Long-side Handled |
| HMU (wire mesh Container) | Front-Loaded | Short-side Handled |
| HMU (wire mesh Container) | Rear Loaded | Short-side Handled |
| HMU-L (wire mesh Container) | Front-Loaded | Long-side Handled |
| HMU-L (wire mesh Container) | Rear Loaded | Long-side Handled |
| EUR 1/2 Pallet | Front-Loaded | Front-side Handled |
| 300 kg | 600 kg | 800 kg | 1000 kg |
|---|---|---|---|
| 11 301-1 | 11 601-1 | 11 801-1 | 11 1001-1 |
| 11 302-1 | 11 602-1 | 11 802-1 | 11 1002-1 |
| 11 305-1 | 11 605-1 | 11 805-1 | 11 1005-1 |
| 11 306-1 | 11 606-1 | 11 806-1 | 11 1006-1 |
| 11 303-1 | 11 603-1 | 11 803-1 | 11 1003-1 |
| 11 304-1 | 11 604-1 | 11 804-1 | 11 1004-1 |
| 11 307-1 | 11 607-1 | 11 807-1 | 11 1007-1 |
| 11 308-1 | 11 608-1 | 11 808-1 | 11 1008-1 |
| – | – | 11 809-1 | 11 1009-1 |
| – | – | 11 810-1 | 11 1010-1 |
| – | – | 11 811-1 | 11 1011-1 |
| – | – | 11 812-1 | 11 1012-1 |
| – | 11 613-1 | – | – |
Â

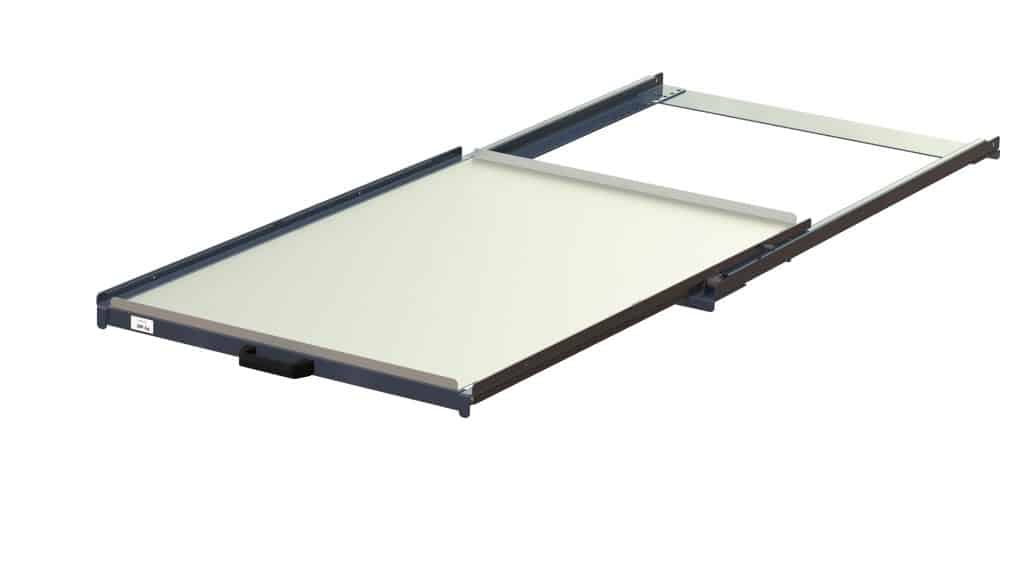

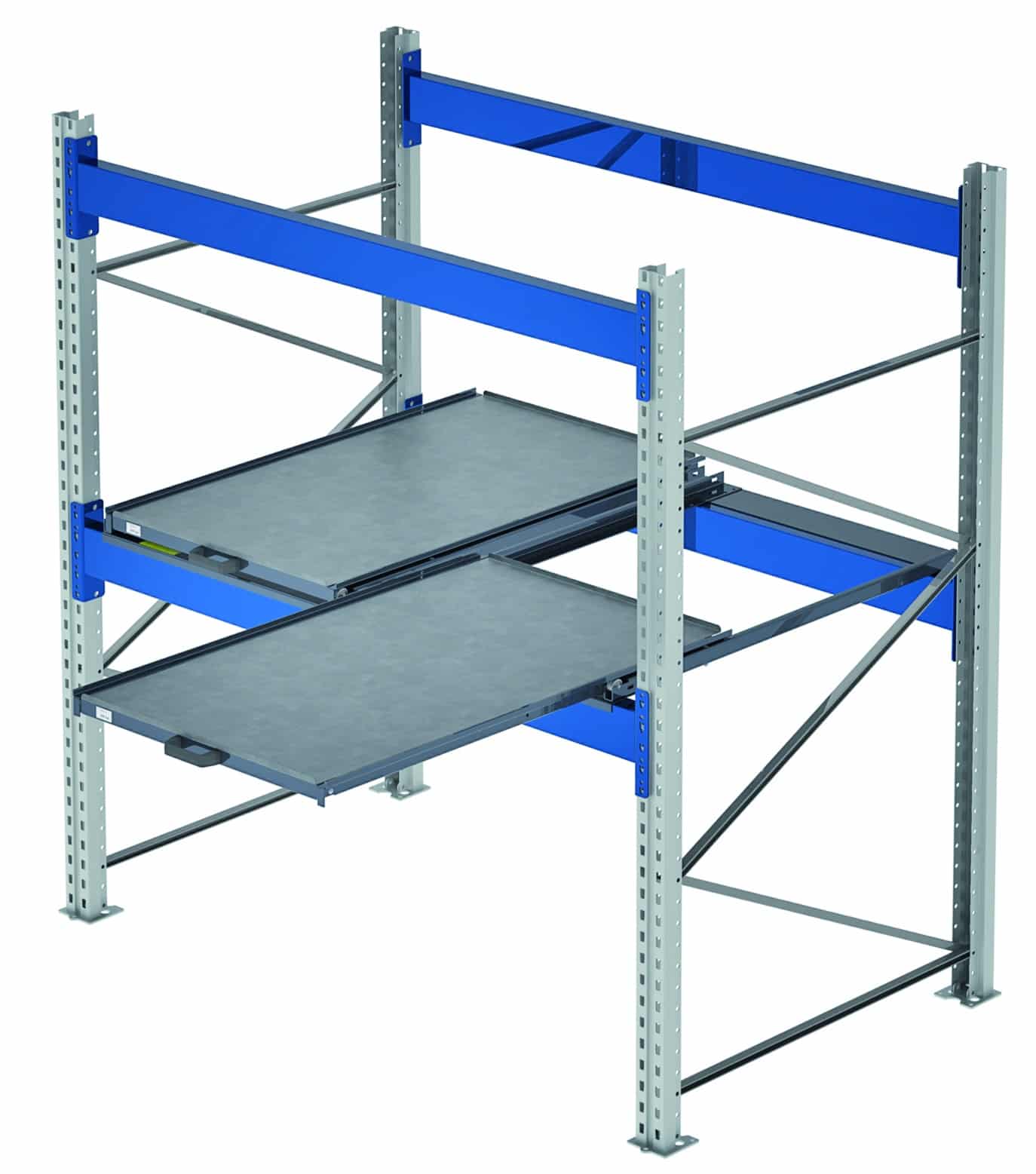

Beam-mounted manual handling
| Pallet Size | Loading | Orientation |
|---|---|---|
| EUR | Front Loaded | Short-side Handled |
| EUR | Rear-Loaded | Short-side Handled |
| 200 kg, 70% |
|---|
| 11 201-0 |
| 11 205-0 |

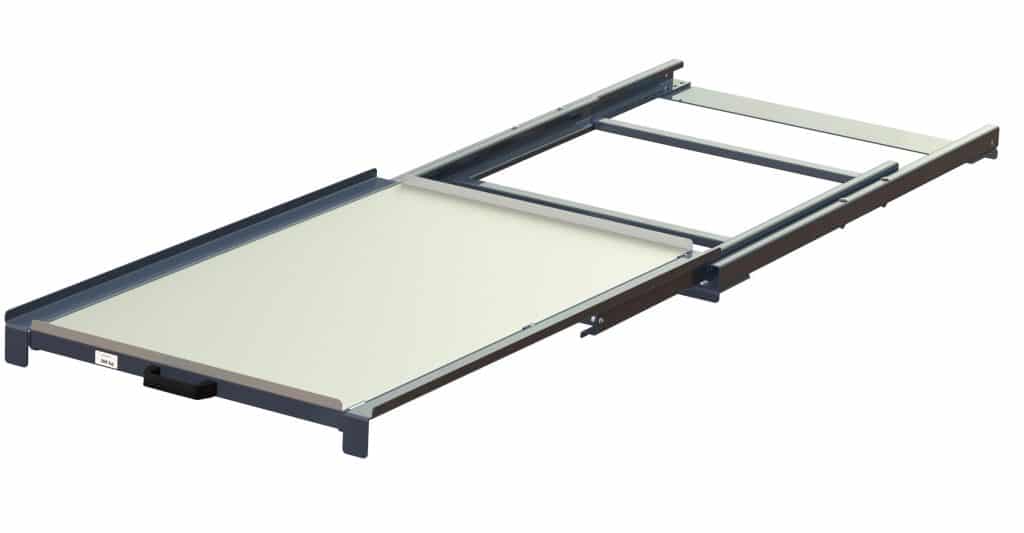

| 200 kg, 100% |
|---|
| 11 201-1 |
| 11 205-1 |
| 200 kg, 70% |
|---|
| 11 201-2 |
| – |
Video

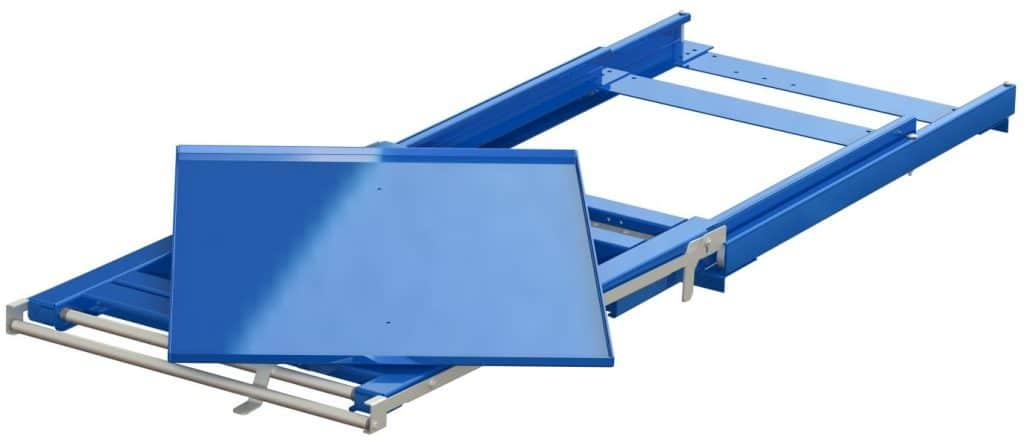

Rotable pull-out unit
In warehouse operations, especially in food distribution, the rapid picking of goods is crucial. Pickers reach as far as possible onto the pallet, and when their reach is exhausted, turning the pallet becomes necessary. Traditionally, this involved using a forklift to bring down the pallet, driving the forklift around to the opposite side, and then lifting the pallet back up.
Now, with Smart Storing’s beam-mounted pull-out unit R1, flipping the pallet can be achieved in a single motion. This efficient capability saves a significant amount of time.
-
PULL OUT
-
ROTATE
-
PUSH IN
We help you find the right solutions!
Introducing our Rotable pull-out unit – With its smooth rotation mechanism, you can effortlessly reach every item without the need for a forklift. Beam-mounted, front or rear-loaded and short-side handled.
A patent pending innovation by Smart Storing!

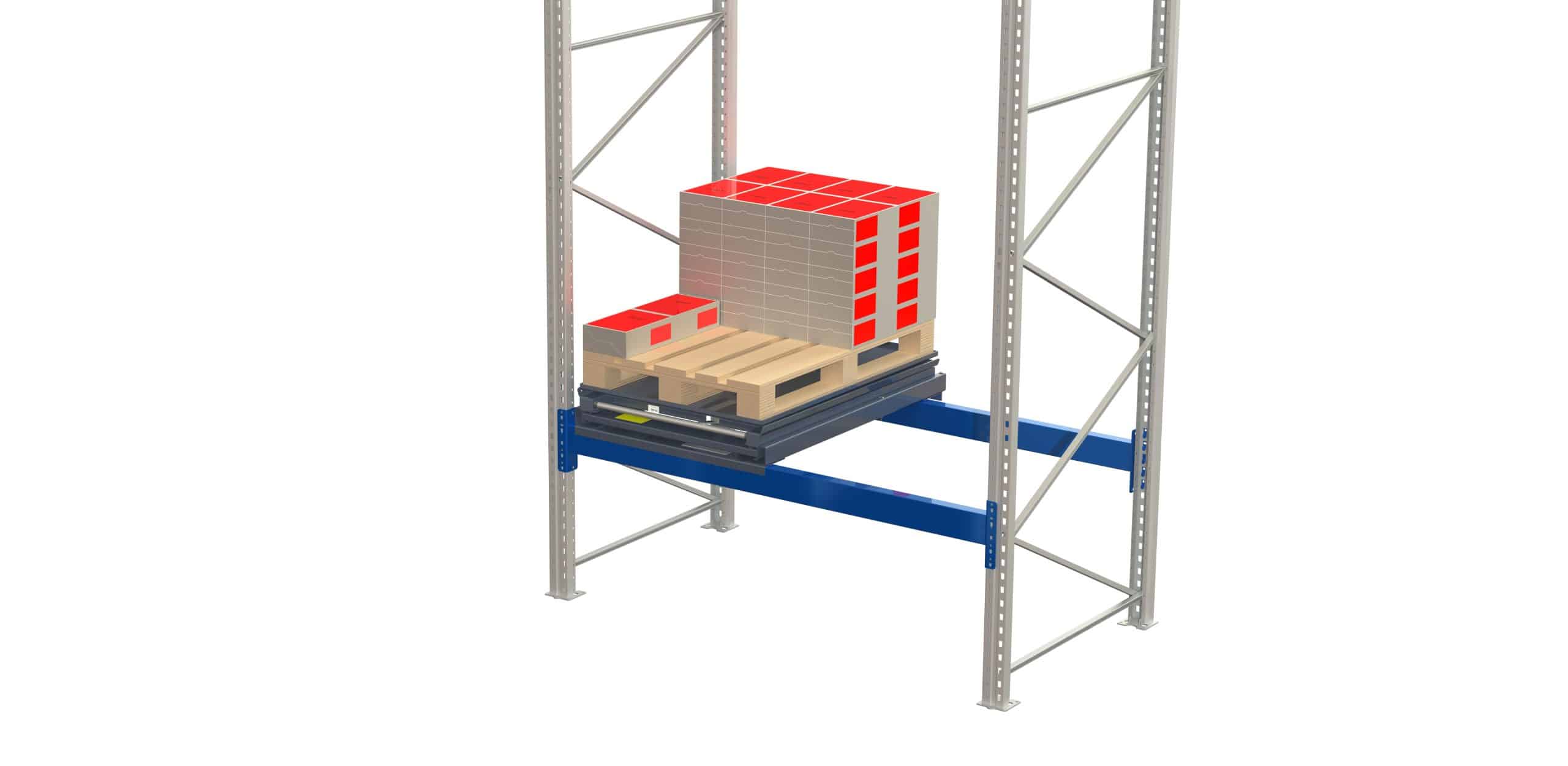

Pick from the pallet as far as you can reach

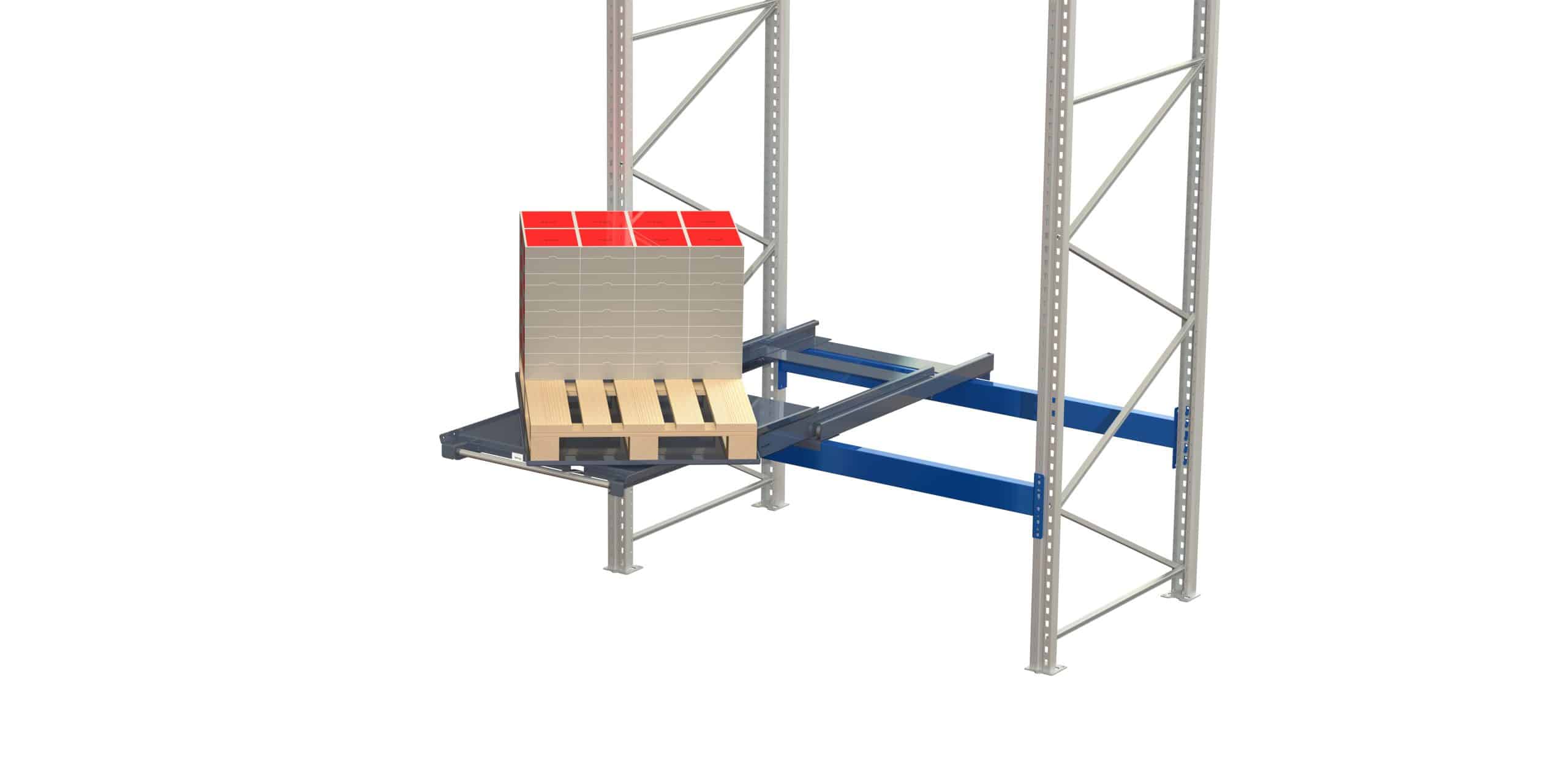

Pull out and turn the pallet.

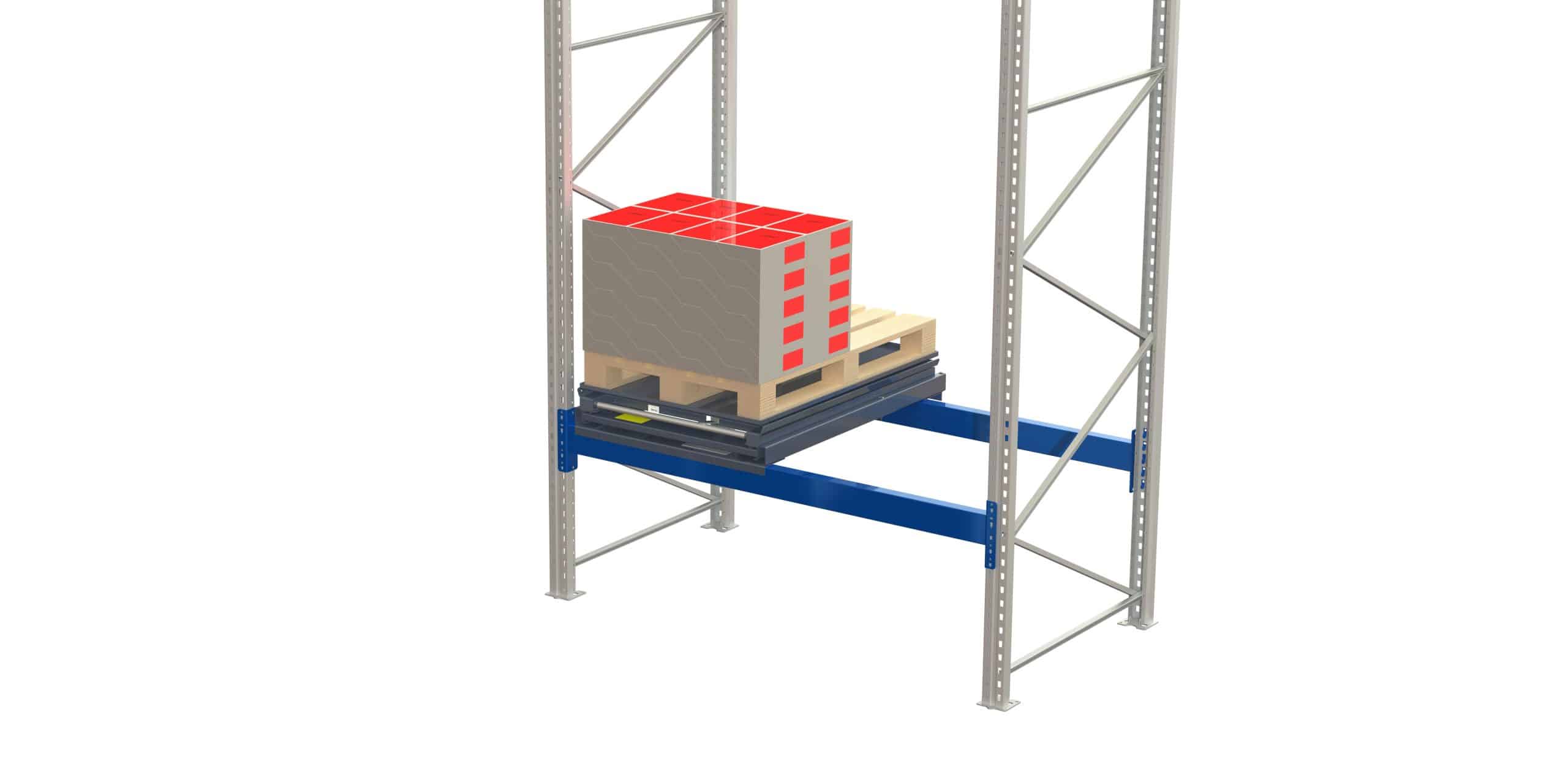

Push back in and continue to pick!

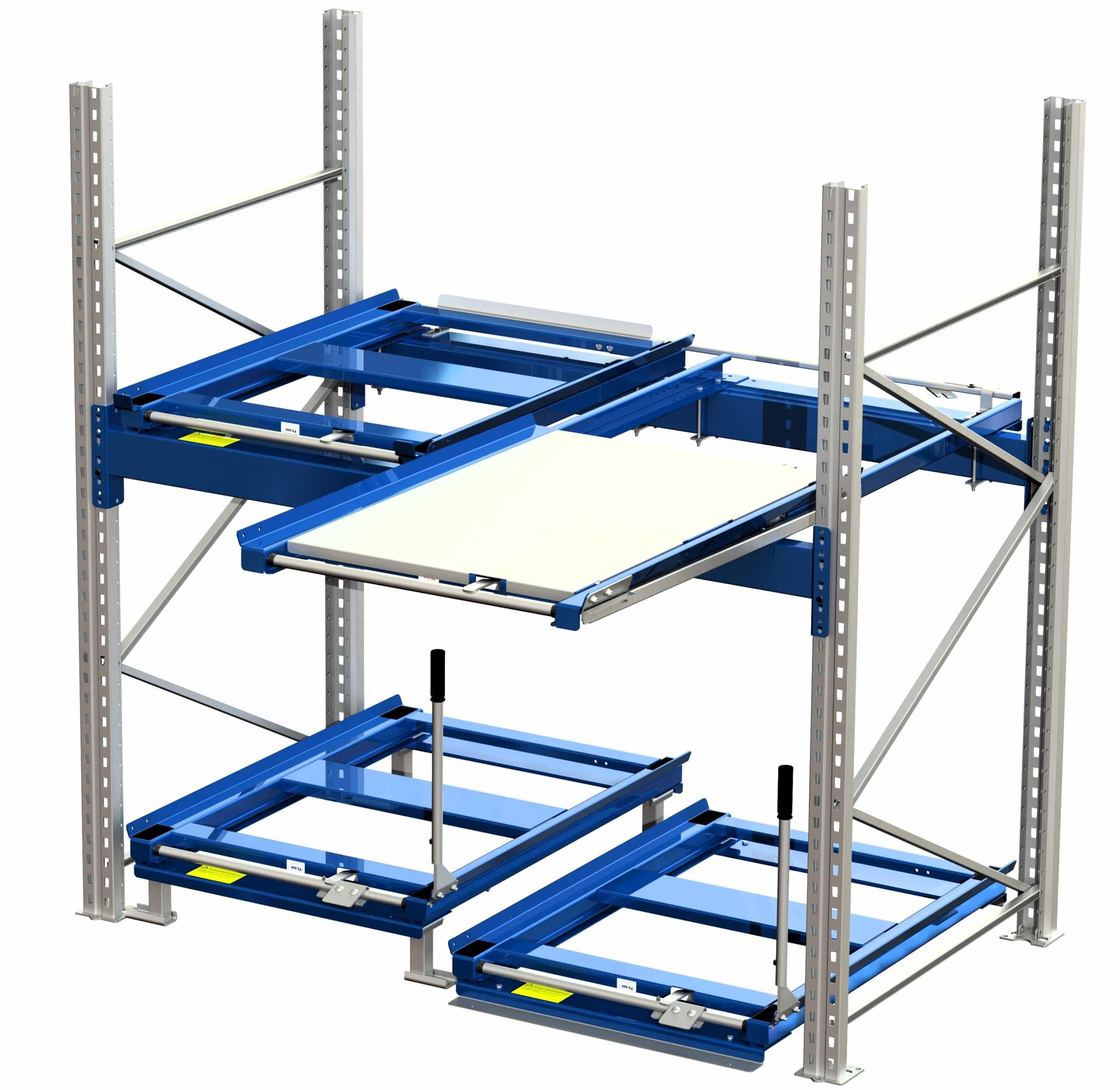

Accessories for Beam-mounted units
Click the buttons and read more about accessories
A pull-out unit locking system avoids the danger of the cross-beam
being overloaded. The lock is available for two, three or four pallet-width
bays and locks one section at the time. When one unit is pulled out, the
others are locked. Normally this lock is placed at the back. We also have
a lock that is placed under the unit; this is typically used when there isn’t
enough room behind, for example if you have double pallet racks, or if
you load from the rear.
Rear pallet stop
An angle profile which can be fitted to the back of the unit to stop the pallet sliding too far back when the unit is pushed in. Supplied ready fitted to unit.
Anti-skid tape
4 pieces of self-adhesive anti-skid tape,
to be stuck to each corner to stop the
pallet moving around when empty or
very lightly loaded.
Feet for BM unit
For mounting BM units off the floor. Two sizes, for up to 800kg units and up
to 1000kg units. Height 150mm, galvanized steel.
Foot-operated lock release catch Recommended for units installed close to floor level.
Floor mounting profiles
For mounting BM units close to the floor. Three versions,
for short-side and long-side forward handling up to
1000kg, and for short-side handling up to 1500kg.
Height 35mm, galvanized steel.
Lock in extended position
Sometimes you want to lock the unit when it´s pulled out, for example while picking
or loading goods. This lock is also useful with narrow aisles, so that when the unit is
fully pulled out you can load a pallet from the side.
Steel shelf panel
This accessory covers the top of the
pull-out unit so that smaller items such as
plastic bins or cartons can’t slip through.
You can still use the unit for pallets, so you
have fully flexible storage.
Material: Galvanized mild steel

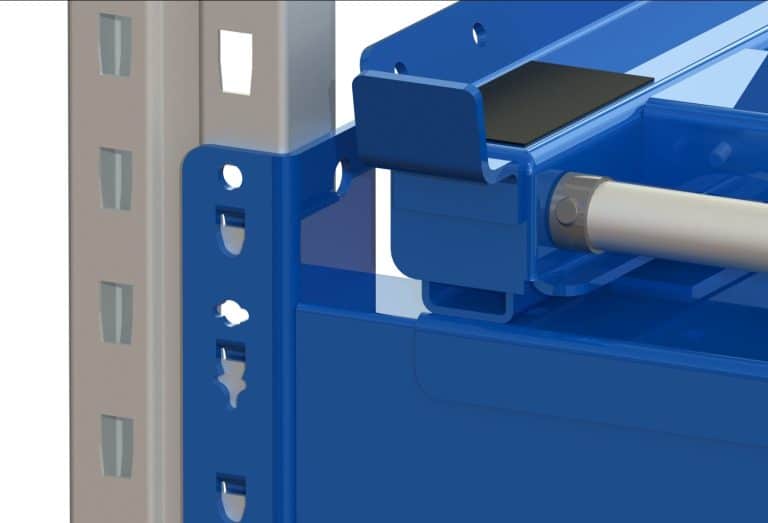

Front pallet stop
A pair of steel plates for mounting either side of the unit at the front, acts as a safety stop when loading a pallet from the rear.
| ART.NO | Specification.NO |
|---|---|
| 11 001-40 | Front edge stops left & right for beam-mounted unit |
Handles for beam-mounted units
The units have integrated horizontal locking handles. Side handles are recommended for BM pull-out units when they are fitted in the lower and mid-range of picking heights, to save bending. Two types are available, Standard and Easy Actionâ„¢ (EA). Both
types of handle are available in a range of lengths.
Standard handles are simply something to pull on, ideal when a unit is fitted on the
bottom two tiers of the racking. Suitable for all units below 1000kg rating. Supplied separately for fitting by customer.
Easy Action™- (EA) handles use a lever mechanism mounted on ball-bearings to greatly increase the operator’s mechanical advantage. They make it effortless to slide out even a heavily loaded unit. Comes complete mounted on selected unit.
There are three choices to pull out the shelf. The choice of 70% or 100% extension capacity depends mainly on whether or not it’s easy to pick your items from the back of the unit. The choice of one- or two-way action depends on whether you want to load and pick from one side only or to have equal access from both sides..
70% extension one-way
For Best Economy:
For most applications, 70% extension gives sufficientaccess to all your goods
100% extension one-way
For Maximum Access:
If you have small items at the back of the shelf or if you need to use an overhead crane for loading and picking, 100% extension makes life much easier!
70% extension two-way
For Access Both sides:
With shelves that can be pulled out in either direction, you have the possibility of operators at separate work positions accessing the same stores, or at an assembly station one side can be used for picking and the other for restocking.
Beam Mounted Product Category
Beam-mounted pull-out units
Accessories to Beam-mounted pull-out units
Rotatable pull-out unit
Important Safety Information
- – The pallet racking must be bolted to the floor (see manufactures instructions).
- – Rear cross beam must be bolted to the pallet racking uprights (minimum dimension M8).
- – The pull-out unit must be bolted to the rear cross-beam with the fitting kit provided.
- – Each pair of cross beams must have load capacity according to table on next page.
- – Only one pull-out unit in each section (pair of cross beams) may be pulled out at a time.
- – With using pull-out units in different levels of one rack only in one level
- a pull-out unit be pulled-out at the same time.
- – See separate notice for maximu m evenly distributed loading weight per pull-out unit
- – Directly after using the pull-out unit, it must be pushed back – check that it’s locked!
