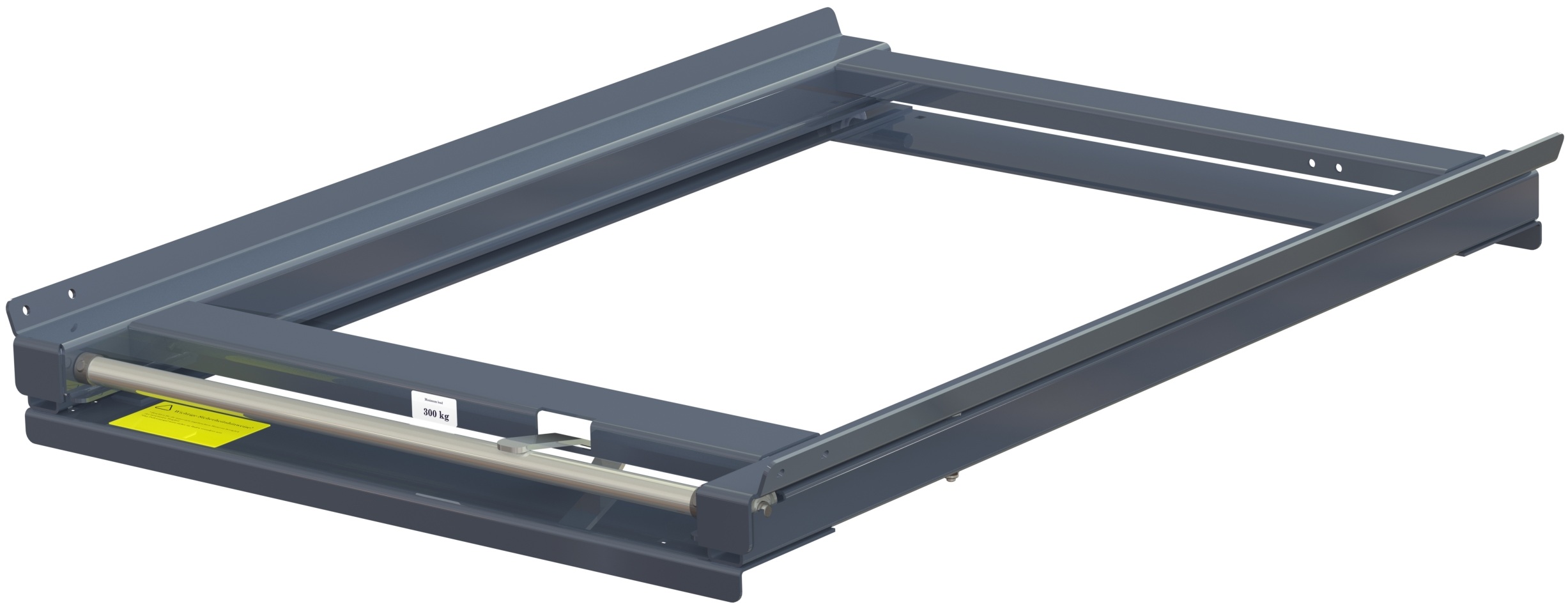

11 302-0 Beam-mounted pull-out unit for EUR pallet with 100% extension capacity, 600 kg load capacity, W=830 D=1200

Beam-mounted pull-out unit for storing EUR-pallet. 70% pull-out extension and 300 kg load capacity. Loading area is W=830 mm D= 1200 mm. Load at back-side and pick from front side. Short-side handled.

- +
Product added to cart
ART No: 11 302-0 Categories: ,
Arrow

Description

Arrow

A pallet pull-out unit is used when you want to load a full pallet of articles and then pick the articles manually.
Beam-mounted units are mounted on the cross-beams between the pallet racking uprights. The lower frame of the pull-out unit is bolted to the beams and the upper frame slides out carrying the pallet with it.

Unit locks when pushed back into the rack.
Easy to install – simply secure to the cross-beams using 4 bolts.
Fitting double ball bearings at the front gives lower profiles and means that our pull-out units run smoothly, even with high load factors.
Beam-mounted units are compatible with almost any type of pallet racking on the market. They can be fitted to your existing beams.

Extractors are supplied with safety information on a yellow label. The text is in English or another language of your choice. All deliveries also include assembly instructions and user information.

Arrow

Product Features

Arrow
WEIGHT CAPACITY Manual
300 kg
EXTENSION Manual
70%
LOAD METHOD ManualManual
Forklift | Overhead crane
TYPE OF LOAD Manual
EUR-pallet
LOADING Manual
Rear loaded
LOAD WAY Manual
One-way
PICKING METHOD Manual
By hand
SHORT OR LONG SIDE HANDLED Manual
Short side handled
Arrow

Technical Specification

Arrow
LOADING WIDTH
Manual
821 mm
LOADING DEPTH
Manual
1204 mm
HEIGHT
Manual
68 mm
RACK DEPTH
Manual
970 mm - 1170 mm
Arrow

Weight and Volume

Arrow
PACKAGE WEIGHT
Manual
409kg
QUANTITY IN THE PACKAGE
Manual
12pcs
Arrow

Weight Capacity Support Beam

Arrow
OBS! ONLY ONE UNIT PER SECTION MAY BE EXTRACTED AT A TIME!
1 PALLET
Manual
963kg
