11 1001-1 Pull-out unit for EUR-pallet with 100% extension capacity, 1000 kg load capacity, W=830 D=1200

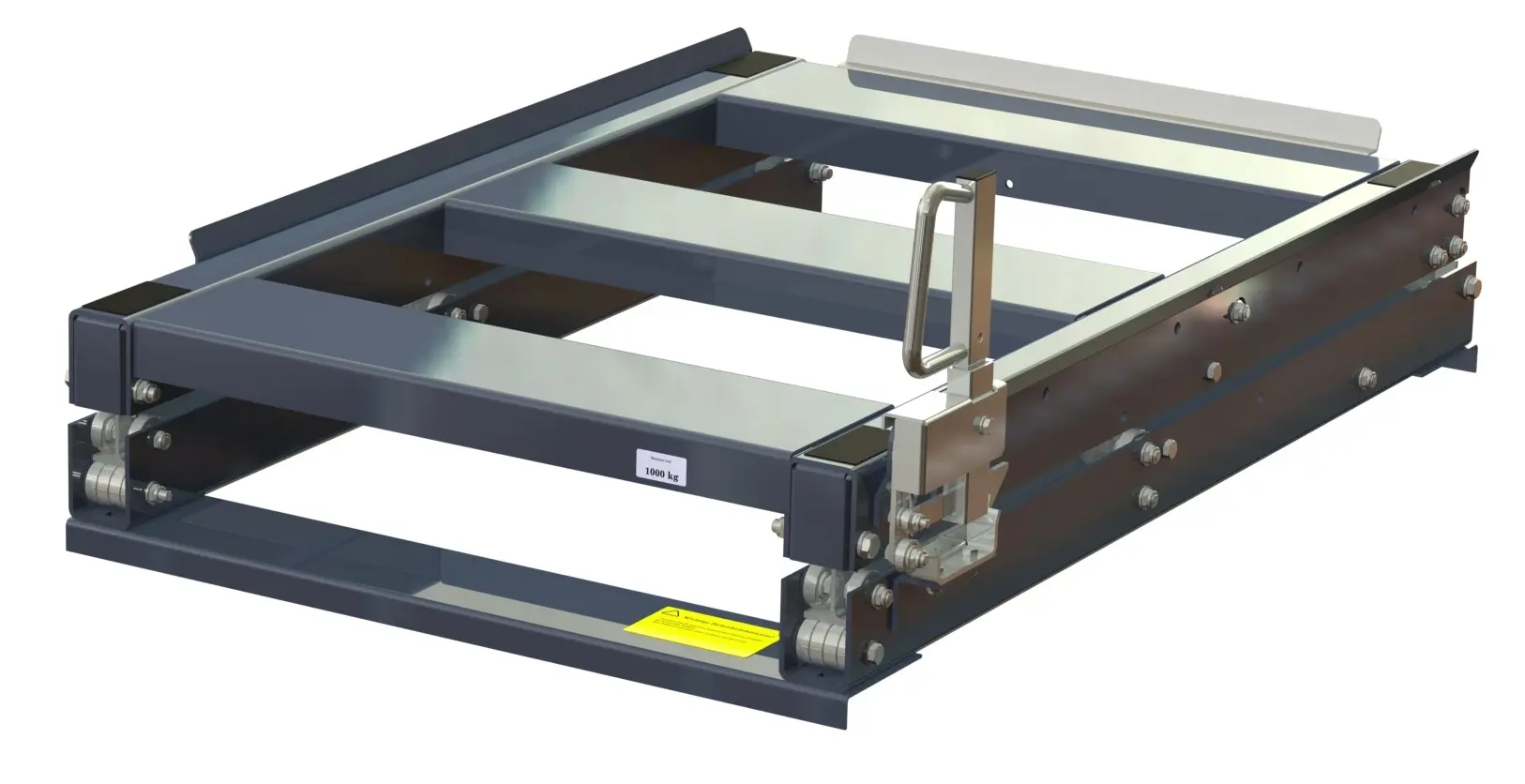

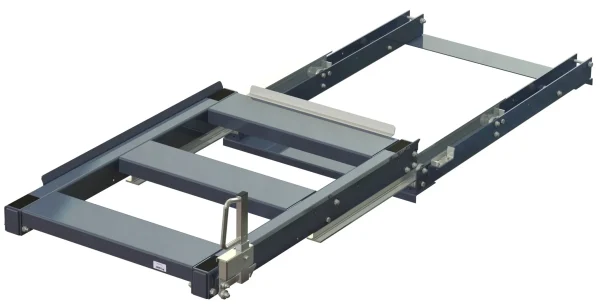

Beam-mounted pull-out unit for storing EUR-pallet. 100% pull-out extension and 1000 kg load capacity. Loading area is W=830 mm D= 1200 mm. Load from rear or front side and pick from front side. Short-side handled. The unit pictured is equipped with optional anti-slip tape, rear pallet stop and an Easy Action ™ handle.
Description
A pallet pull-out unit is used when you want to load a full pallet of articles and then pick the articles manually. 100% pull-out capacity provides access to the innermost items. An important feature when placing units closely in multiple levels. Easy Action ™ handle are aviable in four standard heights
Beam-mounted units are mounted on the cross-beams between the pallet racking uprights. The lower frame of the pull-out unit is bolted to the beams and the upper frame slides out carrying the pallet with it.
Unit locks when pushed back into the rack.
Easy to install – simply secure to the cross-beams using 4 bolts.
Fitting double ball bearings at the front gives lower profiles and means that our pull-out units run smoothly, even with high load factors.
Beam-mounted units are compatible with almost any type of pallet racking on the market. They can be fitted to your existing beams.
Extractors are supplied with safety information on a yellow label. The text is in English or another language of your choice. All deliveries also include assembly instructions and user information.
Product Features
Technical Specification
Weight and Volume
Weight Capacity Support Beam
Minimum Quantity Needed :
